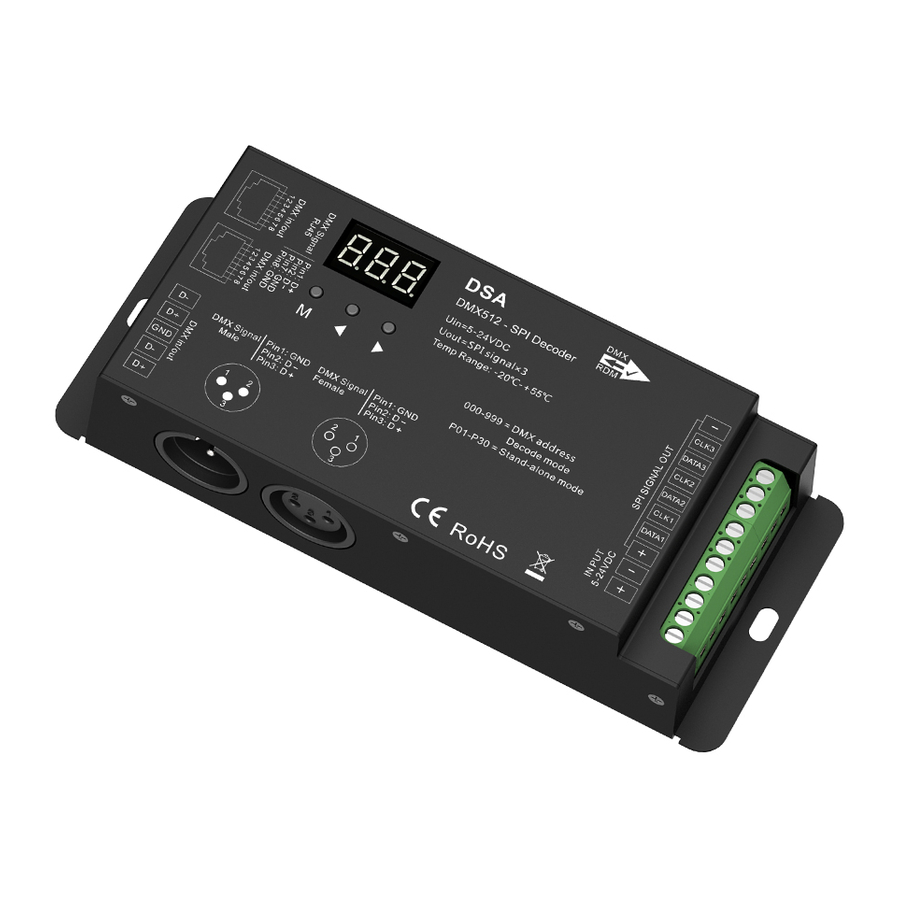

SKYDANCE DSA - DMX512-SPI Decoder And RF Controller Manual

Features

• DMX512 to SPI decoder and RF controller with digital display.
• Compatible with 45 kinds of digital IC RGB or RGBW LED strip, IC type and R/G/B order can be set.
  Compatible ICs: M1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, Sk6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), SM16714(RGBW),WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, UCS5603, UCS5603.
• DMX decode mode, stand-alone mode and RF mode selectable.
• Standard DMX512 compliant interface, set DMX decode start address by buttons.
• Under stand-alone mode, change mode, speed or brightness by bottons.
• Under RF mode, match with RF 2.4G RGB/RGBW remote control.
• 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.

Technical Parameters

Mechanical Structures and Installations

Wiring diagram

Note:

• If the SPI LED pixel strip is single-wire control, the DATA and CLK output is same, we can connect up to 6 LED strips.
• If the SPI LED pixel strip is two-wire control, we can connect up to 3 LED strips.

Operation

IC type, RGB order and pixel length length setting

• You must rst assure IC type, RGB order and pixel length of the LED strip is correct.

• Long press M and ◀ key, prepare for setup IC type, RGB order, pixel length, automatic blank screen,
  Short press M key to switch four item.
  Press ◀ or ▶ key to setup value of each item.
  Long press M key for 2s, or timeout 10s, quit setting.
• IC type table:

• RGB order: O-1 - O-6 indicate six order (RGB, RBG, GRB, GBR, BRG, BGR).
• Pixel length: Range is 008-900.
• Automaticblankscreen: enable ("bon") or disable("boF") automatic blank screen.

DMX decode mode

There are two DMX decode modes selectable.

DMX decode mode1: change light color by setting DMX decode address;
DMX decode mod 2_: switch light dynamic modes, control brightness and dynamic mode speed via 3 different DMX decode addresses.

Long press M, ◀ and ▶ key at the same time to switch DMX decode DMX decode mode mode (display"d-1" ) and DMX decode mode (display"d-2" ).
Long press M key for 2s, and then return to DMX address interface.

Mode 1

• Short press M key, when display 001-512, enter DMX decode mode.
• Press ◀ or ▶ key to change DMX decode start address(001-512), long press for fast adjustment.
• Long press M key for 2s, prepare for setup decode number and multiple of pixels.
  Short press M key to switch two item.
  Press ◀ or ▶ key to setup value of each item.
  Decode number(display "dno"): DMX decode channel number, range is 003-600(for RGB).
  Multiple of pixels(display "Pno"): Each 3 DMX channel control length(for RGB), range is 001- pixel length.
  Long press M key for 2s, or timeout 10s, quit setting.
• If there is a DMX signal input, will enter DMX decode mode automatically.
  For example, the DMX-SPI decoder connect with RGB strip:
  DMX data from DMX512 console:

  DMX-SPI decoder output (start address: 001, decode channel number: 18, each 3 channel control length: 1):

  DMX-SPI decoder output (start address: 001, decode channel number: 18, each 3 channel control length: 3):


Mode 2

• Short press M key, when display 001-512, Press ◀ or ▶ key to change DMX decode start address(001-512), long press for fast adjustment.
  For example, when the DMX start address is set to 001. The address 1 of DMX console is for dynamic light type setting (32 modes), address 2 is for brightness setting (10 levels), address 3 is for speed setting (10 levels). Long press M key for 2s, or timeout 10s, quit setting.
• Address 1 of DMX console: dynamic light mode

• Address 2 of DMX console: Brightness (when address 2<5, turn off the light)

• Address 3 of DMX console: Speed


Stand-alone mode

• Short press M key, when display P01-P32, enter stand-alone mode.

• Press ◀ or ▶ key to change dynamic mode number(P01-P32).
• Each mode can adjust speed and brightness.
  Long press M key for 2s, prepare for setup mode speed and brightness.
  Short press M key to switch two item.
  Press ◀ or ▶ key to setup value of each item.
  Mode speed: 1-10 level speed(S-1, S-9, S-F).

  Mode brightness: 1-10 level brightness(b-1, b-9, b-F).

  Long press M key for 2s, or timeout 10s, quit setting.
• Enter stand-alone mode only when DMX signal is disconnected or lost.

Dynamic mode list

Restore factory default parameter

• Long press ◀ and ▶ key, restore factory default parameter, display"RES".
• Factory default parameter: DMX decode mode, DMX decode start address is 1, decode number is 510, multiple of pixels 1, dynamic mode number is 1, chip type is TM1809, RGB order, pixel length is 170, disable automatic blank screen, without matched RF remote.

RF mode

• Match:
  Long press M and ▶ key for 2s, display "RLS", within 5s, press on/off key of the RGB remote, display "RLO", match is successful,
  then use the RF remote to change mode number, adjust speed or brightness.
• Delete:
  Long press M and ▶ key for 5s, until display "RLE", delete all matched RF remote.
