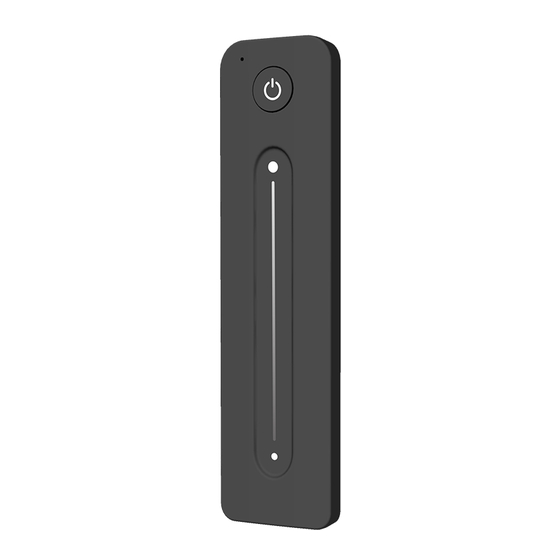

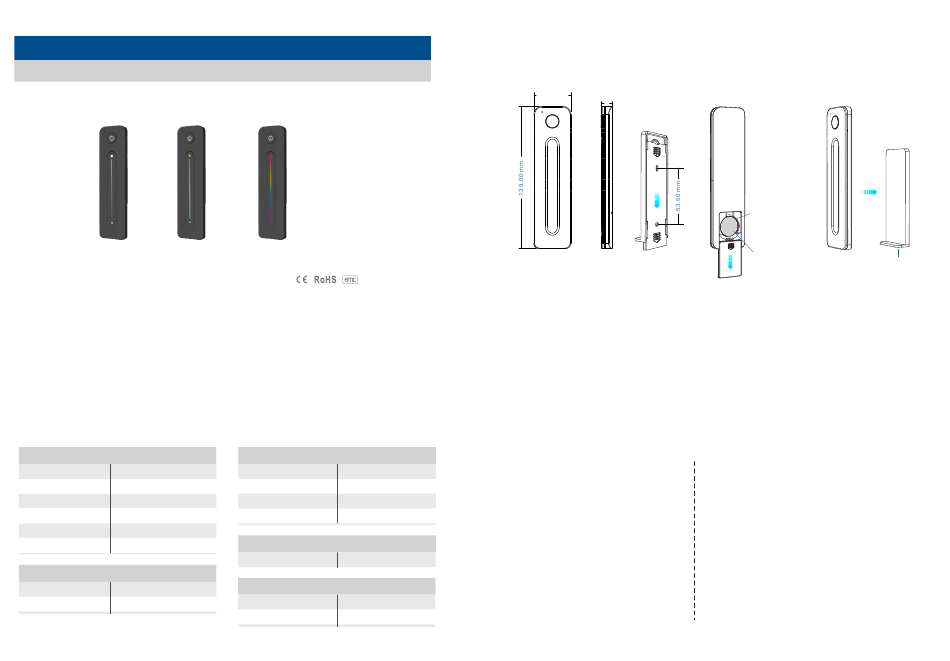

SKYDANCE R11 Quick Start Manual

Ultrathin Touch Slide RF Remote Controller
Model No.: R11,R12,R13
Touch color slide/1-3 color/Wireless remote 30m distance/CR2032 batter y/Magnet stuck fix
R11 R12
1 Zone Dimming
1 Zone CCT

Features

● Apply to single color, dual color or RGB LED controller.
● Ultra sensitive color adjustment touch slide.
● Each remote can match one or more receiver.
● CR2032 battery powered.
● Operate with LED indicator light.
● Magnet on the back which can be easily stuck on back holder or any metal surfaces.

Technical Parameters

Input and Output
Output signal RF 2.4GHz ( )
Working voltage 3VDC CR2032
( )
Working current ＜5mA
Standby current ＜10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
IP rating
IP20
User Manual Ver 1.0.9
R13
1 Zone RGB
LVD RED
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
Certification CE,EMC,LVD,RED
Warranty
5 years
Warranty
Weight
Net weight 0 . 024k g
Gross weight
0 . 064k g

Mechanical Structures and Installations

36.00 mm
11.00 mm
To fix the remote, three options are offered for selection:
Option 1: stuck the remote on any metal surfaces directly.
Option 2: fix the remote' back holder on the wall with two screws.
Option 3: adhere the remote' back holder to the wall with paster.

Match Remote Control (two match ways)

End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key,
immediately press on/off key on the remote.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
R11,R12,R13 Ultrathin Touch Slide RF Remote Controller
C 2032 Battery R
Note: Before the first use,
Back holder with magnet
please remove the protective
film on the battery.
Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power again,
immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
Page 1
