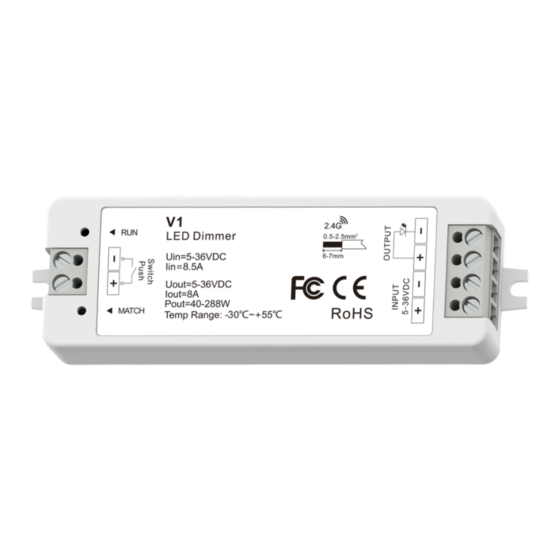

Single Color LED Controller
Model No.: V1
1 Channel/Step-less dimming/Wireless remote control/Auto-transmitting/Synchronize/Push Dim
Features
● 4096 levels 0-100% dimming smoothly without any flash.
● Match with Skydance's 2.4G single zone or multiple zone dimming remote control.
● One RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and 0-100% dimming function.

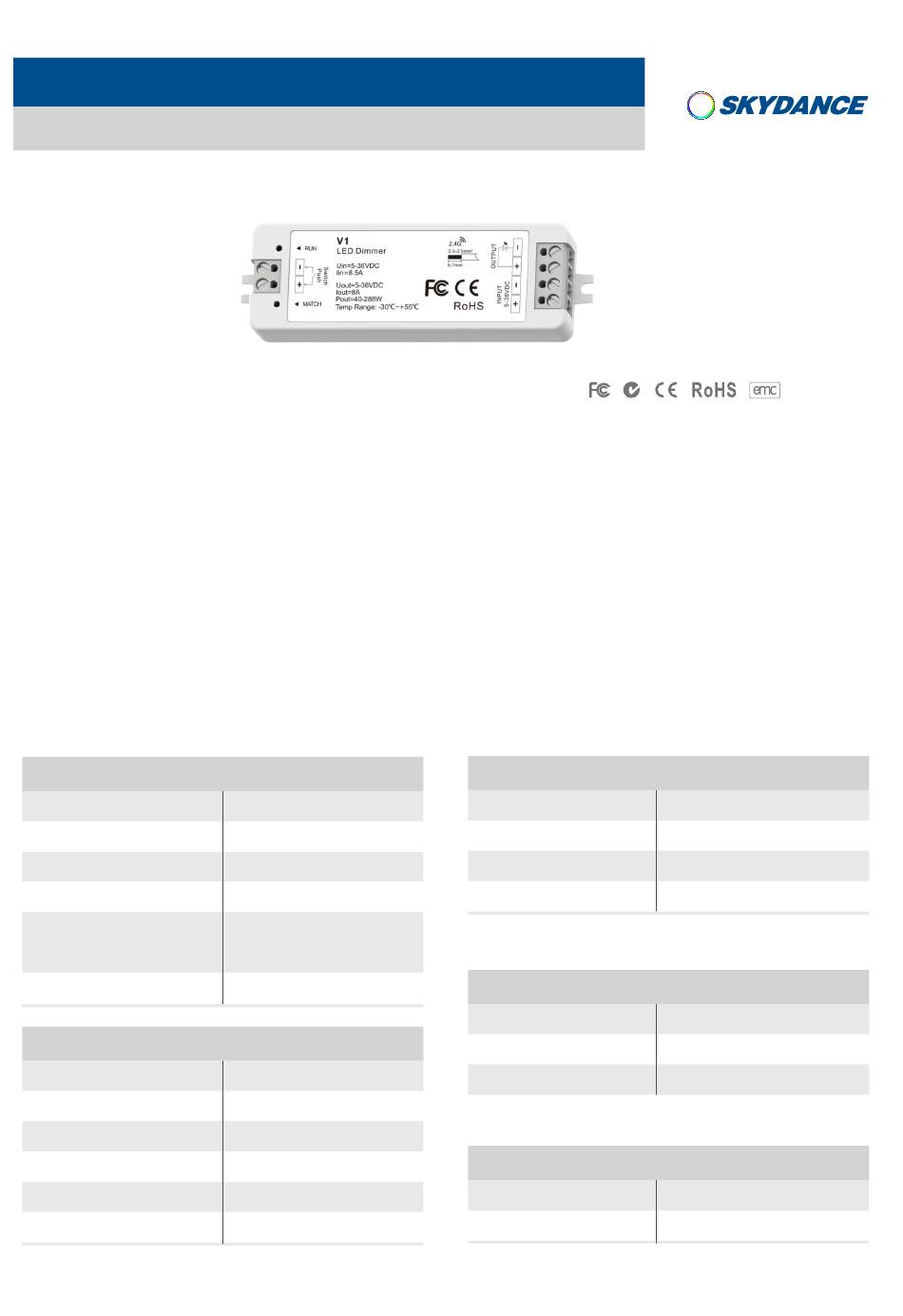

Technical Parameters
Input and Output
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Dimming data
Input signal
Control distance
Dimming level
Dimming range
Dimming cur ve
PWM Frequency
User Manual Ver 1.0.2
5-36VDC
8.5A
5-36VDC
1CH,8A
40W/96W/192W/288W
(5V/12V/24V/36V)
Constant voltage
RF 2.4GHz + Push Dim
30m
4096 levels
0 - 100%
Logarithmic
500Hz (default)
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
Warranty and Protection
Warranty
Protection
RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
5 years
Reverse Polarity
Page 1
Advertisement
Related Manuals for SKYDANCE V1
Summary of Contents for SKYDANCE V1
- Page 1 Features ● 4096 levels 0-100% dimming smoothly without any flash. ● Match with Skydance’s 2.4G single zone or multiple zone dimming remote control. ● One RF controller accept up to 10 remote control. ● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
- Page 2 Single Color LED Controller Mechanical Structures and Installations LED indicator LED output - Push switch com LED output + 33mm Power input - Push switch in Power input + Installation rack Installation rack 97mm Match key 18mm Wiring Diagram Single color LED strip Push Switch LED Controller Single color LED strip...
- Page 3 Single Color LED Controller Application notes 1. All the receivers in the same zone. RF remote Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m, as long as there is a receiver within 30m, the remote control distance can be limitless. Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote.
- Page 4 Single Color LED Controller Dimming Cur ve Gamma=1.6 Brightness(%) Malfunctions Analysis & Troubleshooting Malfunctions Causes Troubleshooting 1. No power. 1. Check the power. No light 2. Wrong connection or insecure. 2. Check the connection. 1. Output cable is too long. 1.
