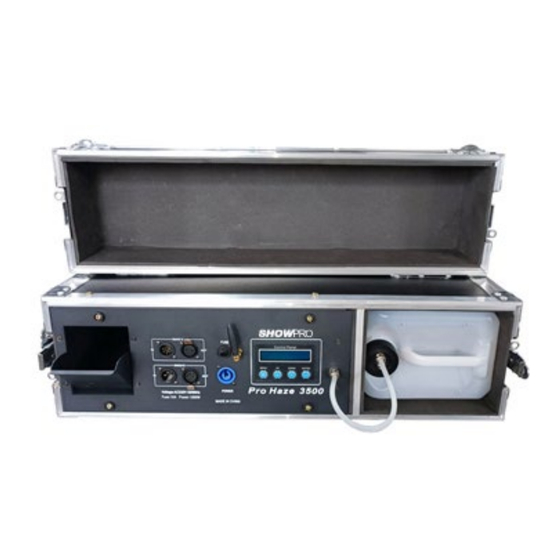

ShowPro Pro Haze 3500 User Manual

Pro Haze 3500

USER MANUAL

Table of Contents

Need help?

Do you have a question about the Pro Haze 3500 and is the answer not in the manual?

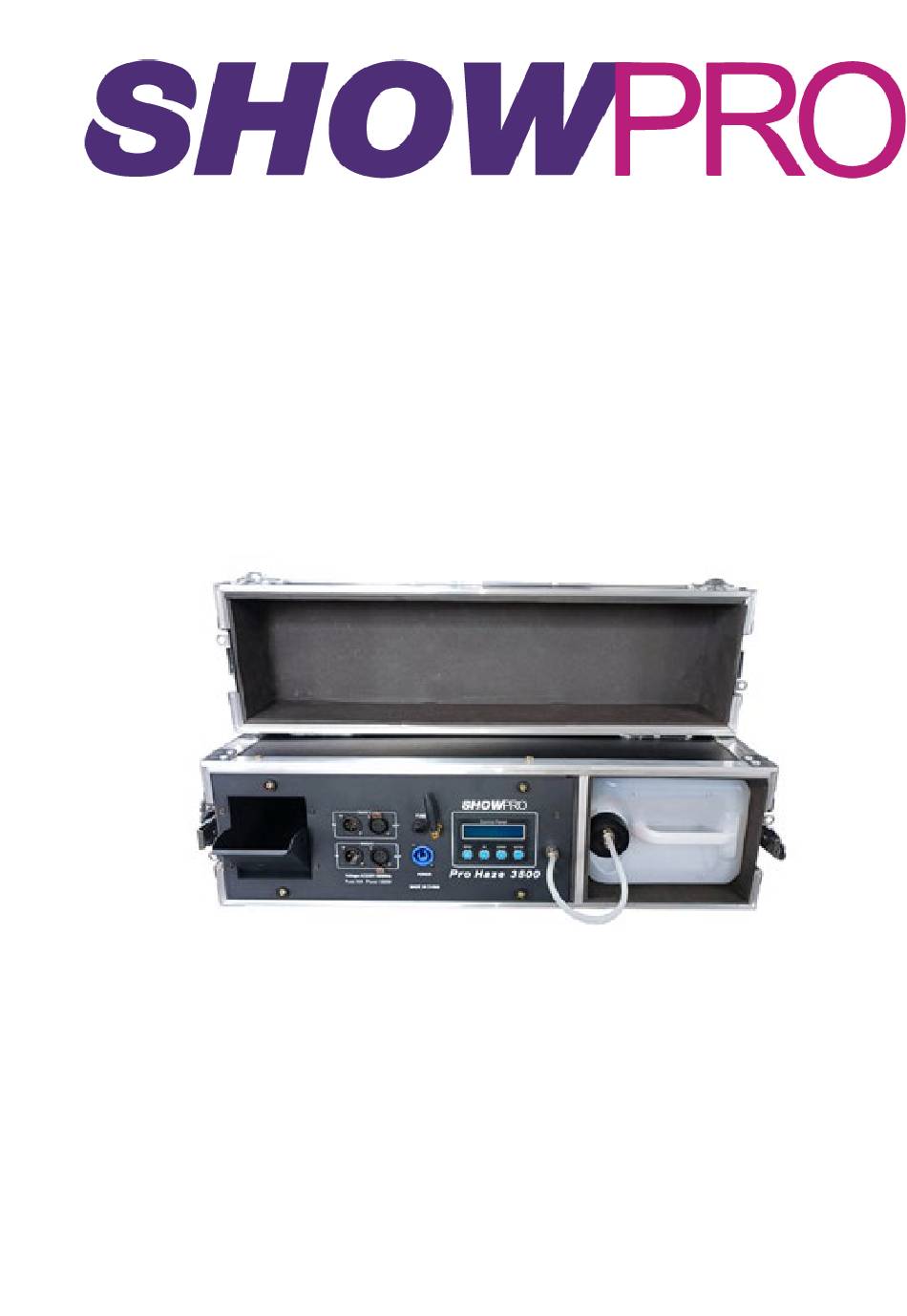

Page 1 Pro Haze 3500 USER MANUAL...
Page 2 100cm should be kept from the nozzle during use. • The Pro Haze 3500 machine should be used in a well-ventilated area, and the heat dissipation hole of the haze machine should not be covered to ensure proper ventilation and heat dissipation. Keep a space of at least 20cm above and below the haze machine, and no flammable substances can be stored within 30cm of the surrounding area.
Page 3 3. Key description: MENU --> Menu switch \ Back key (press and hold the menu key for 1 second to return to the previous interface); UP --> value "+" key; DOWN --> value "+" key; ENTER --> confirm key. Main interface display description: (When the machine is not in operation for 60 seconds, the screen will automatically return to the main interface) The upper left corner of the display panel shows the heating progress percentage.
Page 4 Menu contents and operations: Welcome Ready Now: Interface displays Welcome. It is the main interface of the display panel. The following submenus will appear in sequence after Press the menu key continuously. DMX Address: Set a starting DMX address, press the UP key to increase or press the DOWN key •...
Page 5 6. Pro Haze 3500 parameters: Power required 240V/50Hv Power consumption 1500w Current limiting safety device Heating time 3 minutes Haze output 3500cu ft/min Fluid: Pro C: DJPJCE110 Capacity of tank Oil consumption rate 99min/L Wireless controller DMX-512/LCD controller DMX channels...
