2.3 Installation Steps

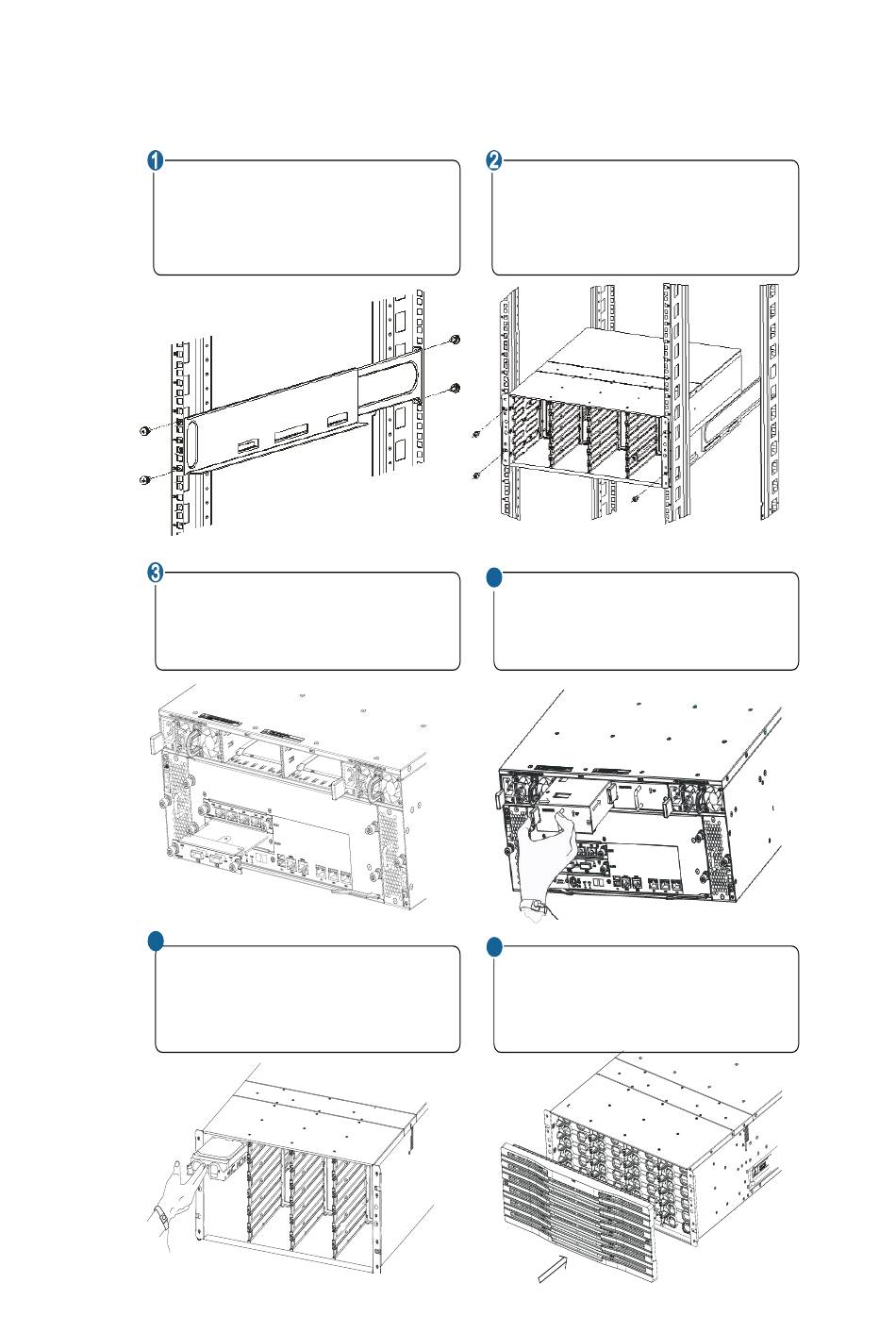

1 Other disk slots except for the 86 slots products
[Installing the guide rail on the cabinet](Optional)
Place the guide rail between the front and rear
mounting holes of the cabinet, align the screw holes
with holes on the cabinet, and tighten the thumb
screws.
[Installing the expansion module]
Face silkscreen of the expansion board forward, hold
the middle of the expansion board, slowly insert the
expansion board, and tighten the captive screws.
5
[Installing a disk]
Hold the middle of the disk, but do not hold the
handle bar. Slowly push the disk into the slot, until a
clatter sound is heard, indicating that the disk is
installed in position.
[Installing the chassis on the guide rail]
Slowly push the main cabinet along the guide rail until
the suspension loop is onto the front mounting hole,
and use screws to secure the suspension loop to the
front mounting bar.
4
[Installing the battery module]
Determine the direction of the battery case, insert the
battery case slowly along the guide rail, until the lock
spring piece is buckled.
6
[Installing the front panels]
Install the front panels of the storage controller and
DEU, as shown in the following figure (DEU is used as an
example).
3
