Removing a Disk

The steps to remove the disk are as follows:

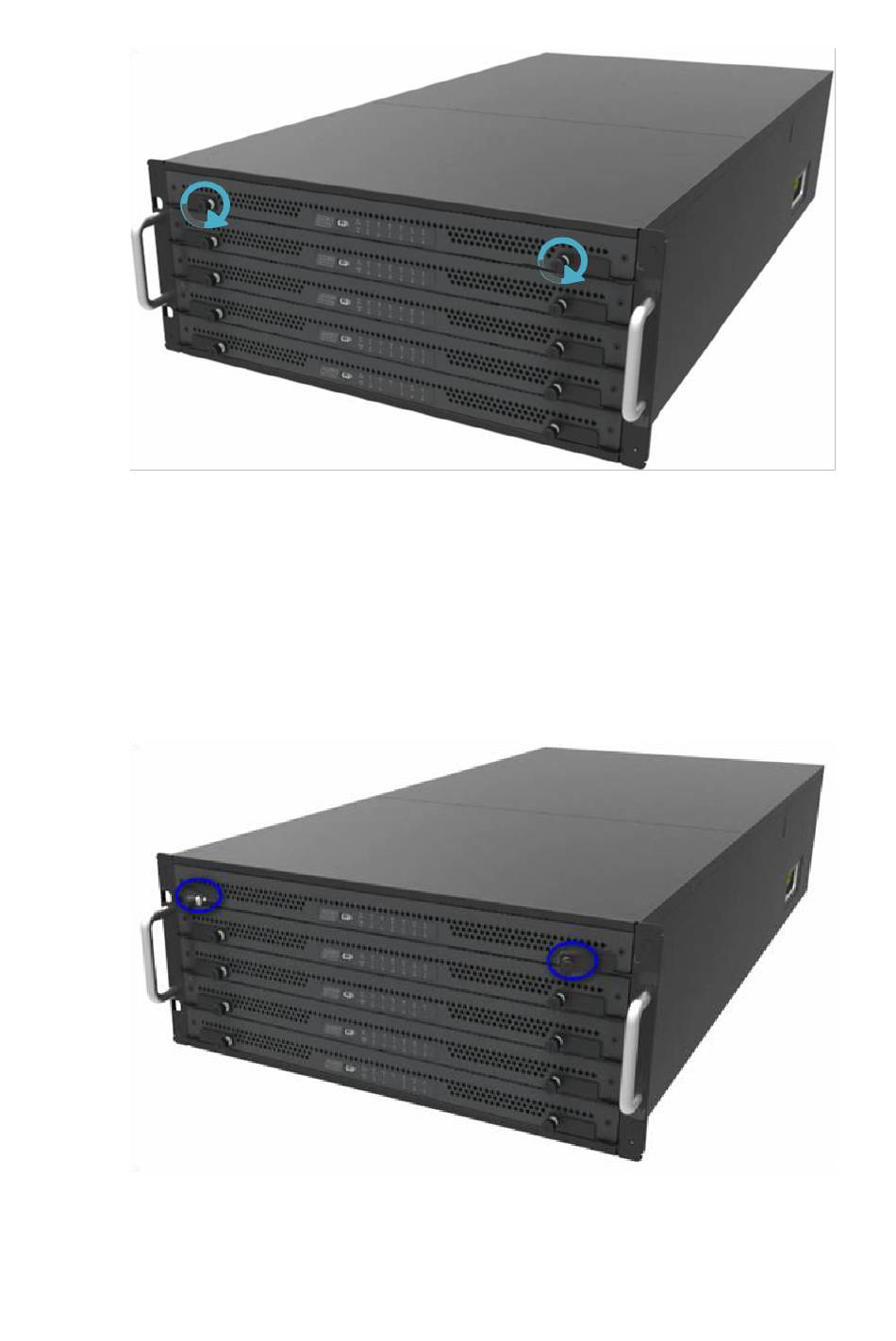

1. Turn the screw of the disk subrack (counter clockwise, please refer to the blue
mark below). After the screws are loose, pull out the disk insert frame (like pulling
a drawer) with both hands at the same time.
2. Hook out the disk pull ring. Find the location of the disk to be pulled out, and
use your fingers to hook out the pull ring on the disk (see the blue part in the
figure below).
41
