Dakota Digital VHX-69C-NOV Quick Start Manual

Download this manual

VHX-69C-NOV

Dakota Digital VHX Instrument Installation

For 1969-76 Nova

1973-75 Buick Apollo

1975-76 Buick Skylark

1973-76 Oldsmobile Omega

1971-76 Pontiac Ventura

Your new VHX-69C-NOV kit includes:

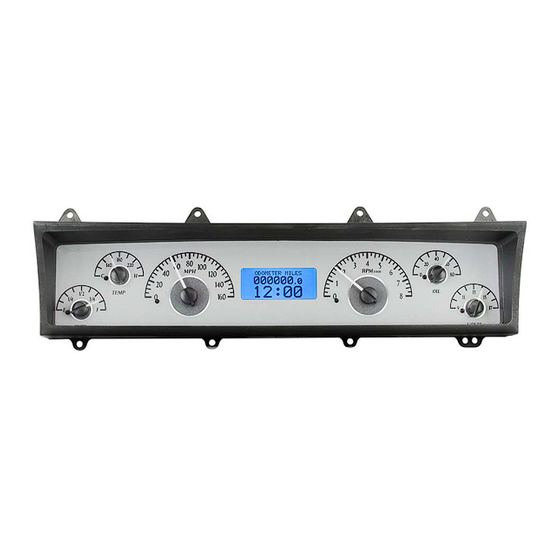

VHX Display

Universal Sender

Pack

Installation Manuals

Switch Assembly

Control Box

CAT5 Cable

Installation

1. Remove the stock gauge bezel and cluster from the dash. Retain all hardware for reassembly

Manual # 650391A

Need help?

Do you have a question about the VHX-69C-NOV and is the answer not in the manual?

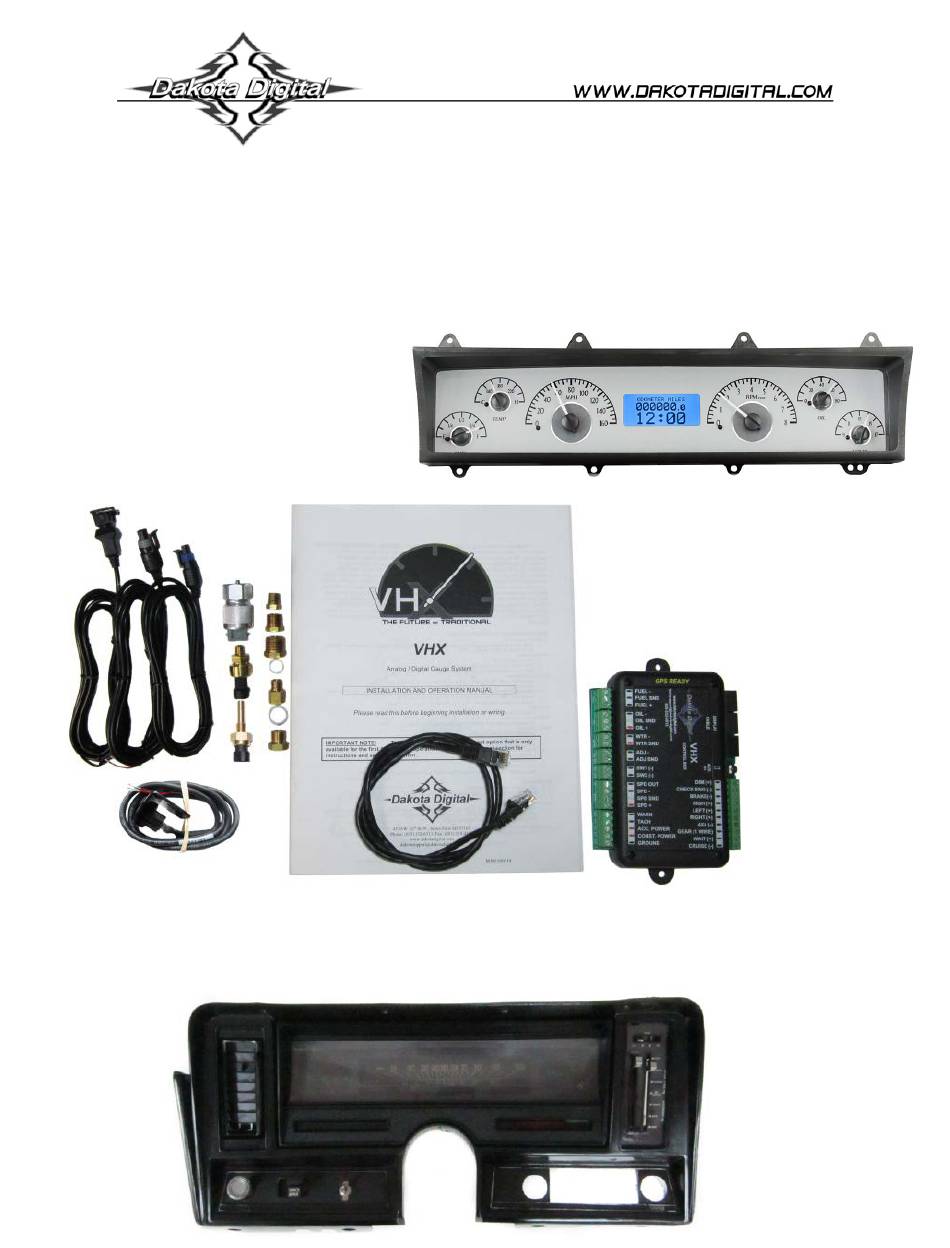

Page 1 VHX-69C-NOV Dakota Digital VHX Instrument Installation For 1969-76 Nova 1973-75 Buick Apollo 1975-76 Buick Skylark 1973-76 Oldsmobile Omega 1971-76 Pontiac Ventura Your new VHX-69C-NOV kit includes: VHX Display Universal Sender Pack Installation Manuals Switch Assembly Control Box CAT5 Cable Installation 1.
Page 2 2. Remove the eight (8) screws holding the gauges to the bezel and save the screws for reassembly. 3. With the stock gauges out of the way, place the new VHX gauge assembly in the bezel with the long mounting tabs towards the top. Attach the gauge cluster to the bezel using the stock screws from disassembly.
Page 3 5. Re-install the assembled cluster into the vehicle and refer to the main manual for wiring instructions to complete the VHX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650391A...
