Dakota Digital BIM-01-2-J1939 Manual

BIM-01-2-J1939

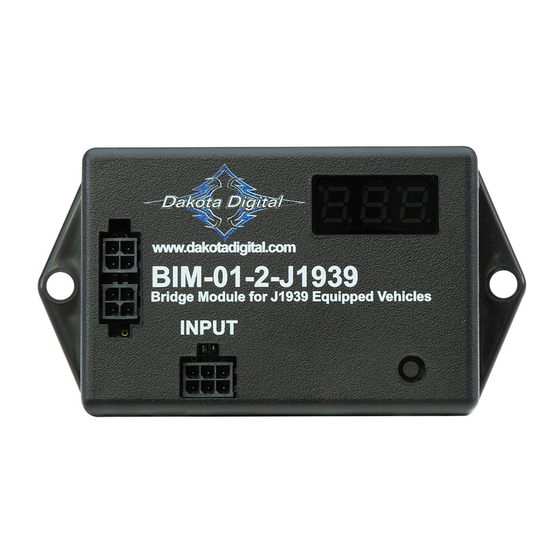

Bus Interface Module for J1939 vehicles
This Bus Interface Module is designed to read engine information from the J1939 bus. The module is connected to the

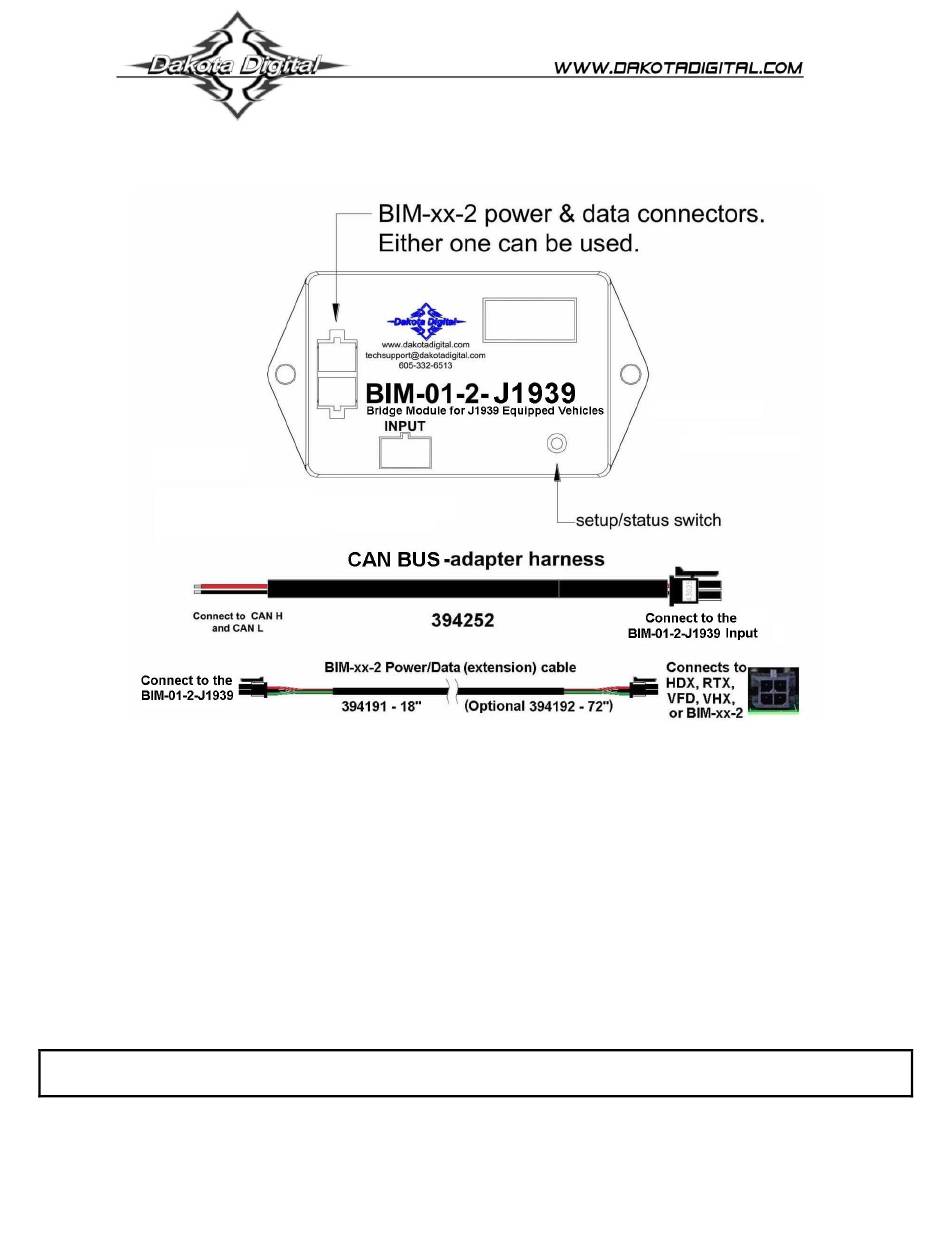

J1939 Bus through CAN bus-adapter harness to the CANH (RED WIRE) and CANL (BLACK WIRE) on the main harness.
There are two interface (I/O) ports on the BIM-01-2-J1939 module. Either one can be connected to the instrument system
or to another module, allowing several units to be daisy chained together.
Cannot daisy chain with GPS-50-2.
Do not connect the I/O port to anything other than a Dakota Digital control box or BIM.
Do not mount the module in the engine compartment; as it should be mounted in the vehicle's cabin.
The engine information that is available from the unit depends on the ECU programming and add-ons.
Readings this module monitors for: vehicle speed, engine RPM, engine coolant temperature, engine oil pressure,
engine light (MIL), intake/manifold air temperature, trans fluid temp, fuel level, ambient air temp, fuel pressure, air fuel
ratio, gear and boost.
The engine and transmission information that is available from the unit depends on your ECU and add-ons.
A GPS-50-2 CANNOT be linked (daisy chained) to a BIM-01-2-J1939 with a BIM cable.
The two units cannot talk to the display control box at the same time.
