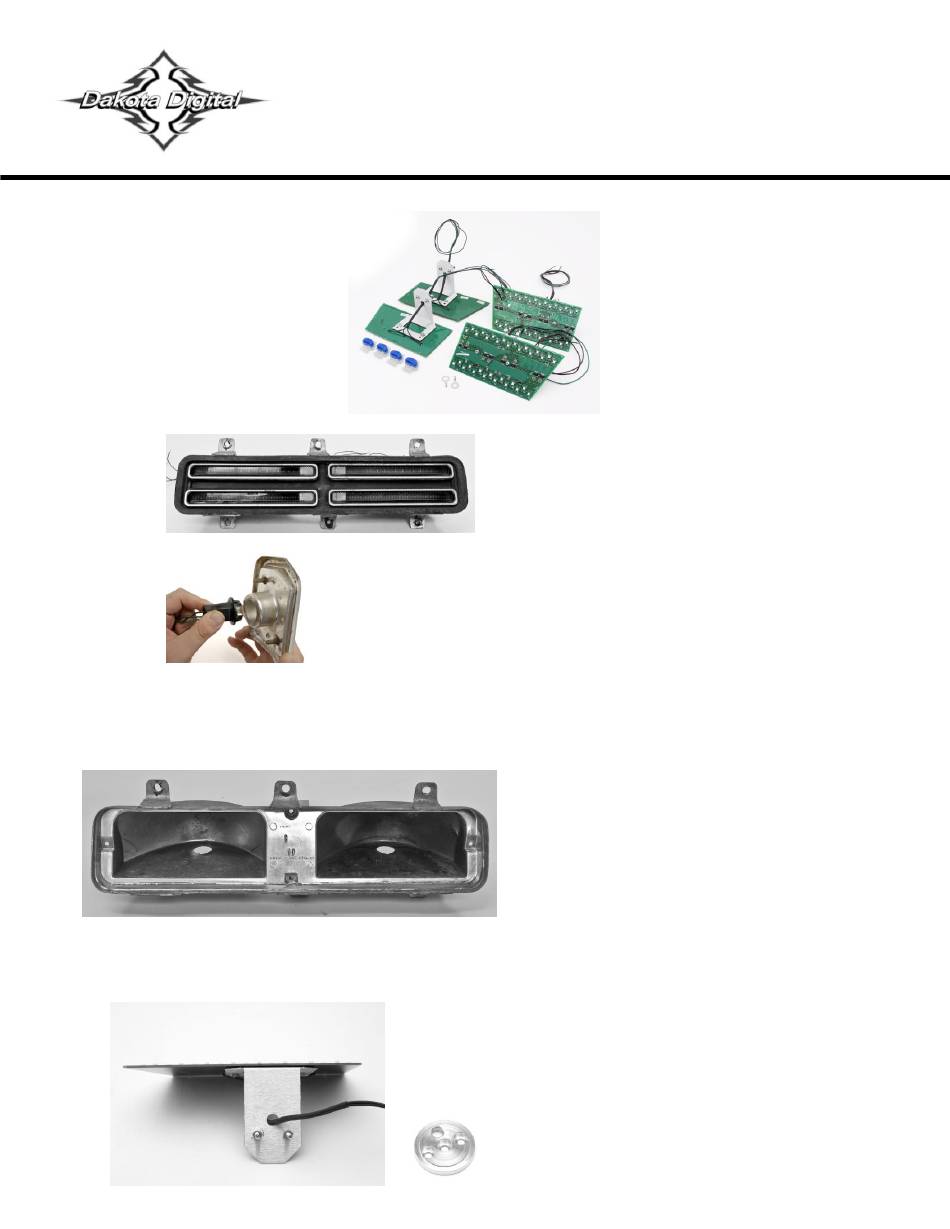

MAN# 650273
Kit Includes:
Installation:
1. Remove the original bulb sockets.
2. Remove the tail light housing hardware so the housing can be removed from the car. Remove
the housings from the vehicle carefully so the body gaskets are not damaged.
3. Next remove the lens to gain access to the housing. There are four screws that hold the lens in
place, remove the screws and separate the lens carefully.
4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is
recommended.
5. Remove the round mounting plate from the bottom of the assembly. It is attached with two
lock nuts.
INSTALLATION INSTRUCTIONS
LAT-NR431
LED Tail Lights for 1967 GTO.
MAN# 650273
Advertisement
Related Manuals for Dakota Digital LAT-NR431
Summary of Contents for Dakota Digital LAT-NR431
- Page 1 INSTALLATION INSTRUCTIONS LAT-NR431 LED Tail Lights for 1967 GTO. MAN# 650273 Kit Includes: Installation: 1. Remove the original bulb sockets. 2. Remove the tail light housing hardware so the housing can be removed from the car. Remove the housings from the vehicle carefully so the body gaskets are not damaged.
- Page 2 6. Pass the wires through the housing where the original bulb and socket were. Set the LED assemblies into the housing so the studs extend out the hole in the bottom of the housing. 7. Feed the wires through the larger hole in the mounting plate. Guide the mounting plate to the bottom of the housing.
- Page 3 This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
