Dante Operation
Dante Transmitters and Receivers
A Dante network is comprised of transmitters that output digital audio onto the Dante network and receivers that receive digital audio from the
Dante network.
The AXI 22 AT D Plus mic/line inputs are Dante transmitters because the analog audio input is converted into digital audio and transmitted
onto the Dante network.
The AXI 22 AT D Plus line outputs are Dante receivers because the outputs receive digital audio from the Dante network and output that
signal as analog audio.
Network View Layout
Dante transmitters are listed horizontally across the top of the
window (see figure 12,
1
side of the window ( ).
2
Create a link in the connection matrix (
audio from a Dante transmitter to a Dante receiver.

Routing Transmitters and Receivers

1.
Click the + box next to the device with the desired Dante transmitters.
The available transmitters display horizontally (
2.
Click the + box next to the device with the desired Dante receivers. The
available receivers display vertically (
3.
Click the intersection of the desired transmitter and receiver in the
connection matrix (
3
Example: Q3@Desk-IO
NOTE:
Notice the clearly defined transmitter and receiver channel
names to help manage connections.
A green check mark at the intersection of a transmit and receive channel
indicates the subscription is active. A check mark is also placed next to
the receiver channel (if a green check mark does not appear, refer to the
Dante Controller section of the AXI 22 AT D Plus User Guide).
NOTE:
A transmitter can transmit signal to multiple receivers, but a receiver can only receive signal from one transmitter.
4.
Click the intersection again to disconnect the transmitter from the receiver.
Additional subscriptions between transmitters and receivers can be made or removed using steps 1 through 4 as shown above (for additional
information on Dante Controller operation, see the AXI 22 AT D Plus User Guide at www.extron.com).

Downloading and Installing DSP Configurator Software

The AXI 22 AT D Plus can be controlled with Extron DSP Configurator software using the USB or AT ports, or DataViewer using the USB
port. Install DSP Configurator on a PC running Microsoft
page on www.extron.com.
NOTE: An Extron Insider account is required to download DSP Configurator.
1.
At www.extron.com, hover over the
2.
Click the DSP Configurator Software
3.
Click the Download
See the DSP Configurator Help File in the software for detailed operating information.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
and Regulatory Compliance Guide
6
). Dante receivers are listed vertically on the left
) to create a subscription and route
3
1
).
2
).
Desk L@ConfRm-DSP
is connected to
Download tab. The
DSP Configurator Software
link. The
button and follow the on-screen instructions to complete the DSP Configurator installation process.
on the Extron website.
© 2024 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
Network View
).
.
Figure 12.
Windows . For full computer requirements, see the DSP Configurator product
® ®
Download
window drops down.
www.extron.com

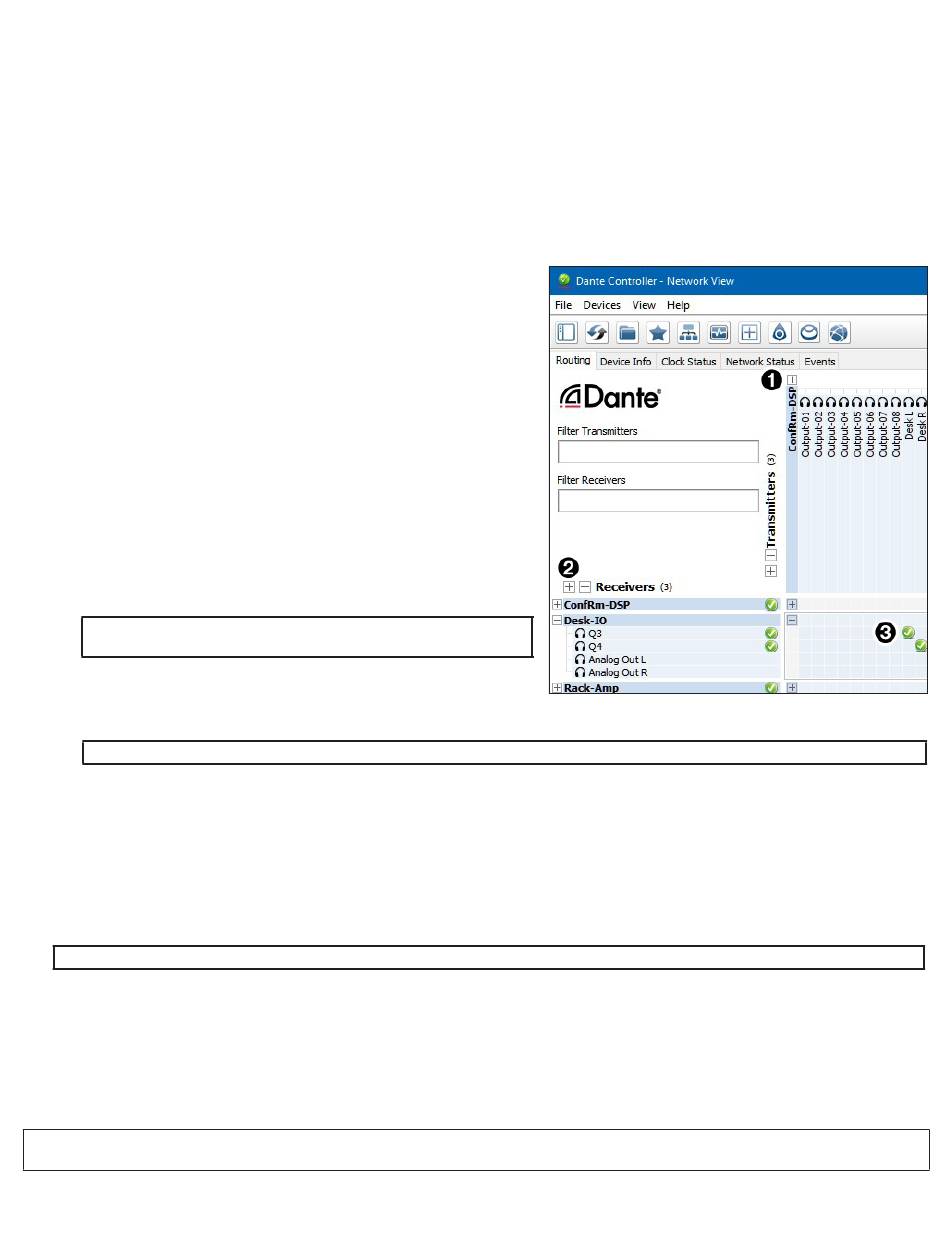

Dante Controller - Network View Screen
