AXI 22 AT D Plus • Setup Guide (Continued)
ATTENTION:
•
Always use a power supply provided by or specified by Extron. Use of an unauthorized power supply voids all regulatory
compliance certification and may cause damage to the supply and the end product.
•
Utilisez toujours une source d'alimentation fournie par Extron. L'utilisation d'une source d'alimentation non autorisée annule
toute conformité réglementaire et peut endommager la source d'alimentation ainsi que l'unité.
•
Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The power
supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location, Pollution
Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.
•
Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces d'aération ou
dans les cavités murales. La source d'alimentation doit être située à proximité de l'équipement de traitement audiovisuel dans
un endroit ordinaire, avec un degré 2 de pollution, fixé à un équipement de rack à l'intérieur d'un placard, d'une estrade, ou
d'un bureau.
•
The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70,
article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently fixed to building
structure or similar structure.
•
Cette installation doit toujours être en accord avec les mesures qui s'applique au National Electrical Code ANSI/NFPA 70,
article 725, et au Canadian Electrical Code, partie 1, section 16. La source d'alimentation ne devra pas être fixée de façon
permanente à une structure de bâtiment ou à une structure similaire.
Line output 1 and Line output 2 (see
B
balanced or unbalanced mono line level devices or one stereo device. Connect these mono or stereo line outputs directly to an amplifier,
recorder, or other audio device with line-level analog inputs. These outputs are listed as receivers on the Dante network (see
Transmitters and Receivers

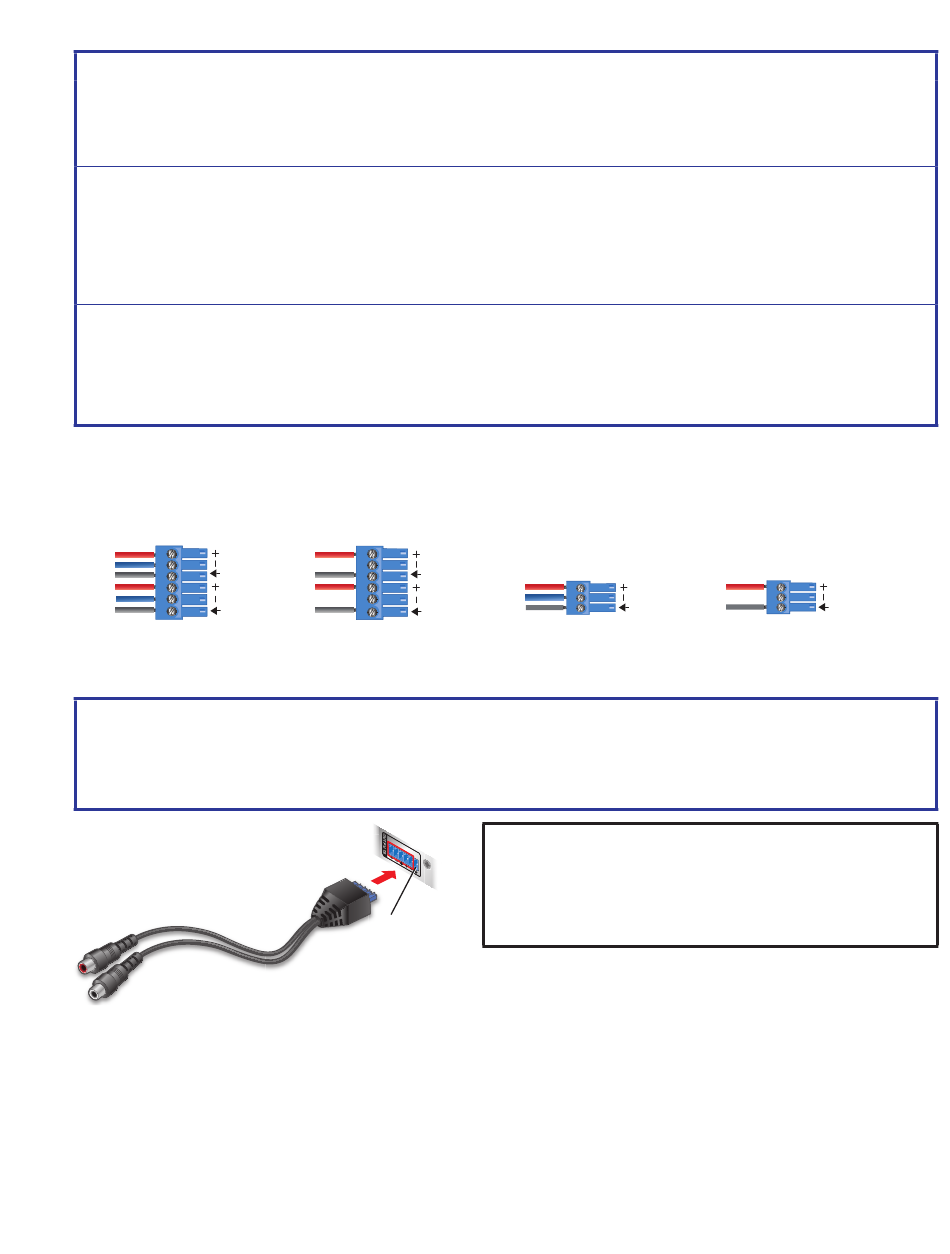

Wire as shown in figure 3.
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Balanced Output
6-pole Audio OUTPUT Wiring
Figure 3. Audio Output Wiring Diagram
ATTENTION:
•
For unbalanced audio outputs, connect the sleeves to the ground contact. DO NOT connect the sleeves to the negative (-)
contacts.
•
Pour l'audio asymétrique, connectez les manchons au contact au sol. Ne PAS connecter les manchons aux contacts négatifs
(–).
Figure 4. CSR 6 Wiring Diagram
RJ-45 AT (PoE) port — Insert an Ethernet cable into this RJ-45 port to connect the AXI 22 AT D Plus to a Dante network. This
C
port supports Power over Ethernet (PoE), communication with DSP Configurator for configuration, digital audio transport (AT), and
communication with the Dante/AES67 network for configuration via Dante Controller, which simultaneously transmits and receives a
maximum of two Dante audio flows. Each audio flow can contain a maximum of two Dante audio channels (2-ch in x 2-ch out) and each
can be transported as either unicast or multicast data. The network speed of this port is 10/100 Mbps.
2
figure 1
on page 1) — Use a 6-pole 3.5 mm captive screw connector to connect two
on page 6).
Tip
NO Ground Here
Sleeve
Tip
NO Ground Here
Sleeve
Unbalanced Output
1 1 1
2 2 2
5-pole CSR
DO NOT
Connect Here
Tip
Ring
Sleeve
Balanced Output
3-pole Audio OUTPUT Wiring
NOTES:
•
Balanced or unbalanced stereo sources can be connected
with 6-pole connectors.
•
When using the 5-pole CSR adapter, connect it so the far left
plug is inserted into the far left jack of the 6-pole input (see
figure 4).
Tip
NO Ground Here
Sleeve
Unbalanced Output
Dante
