Summary of Contents for GLP JDC2 IP

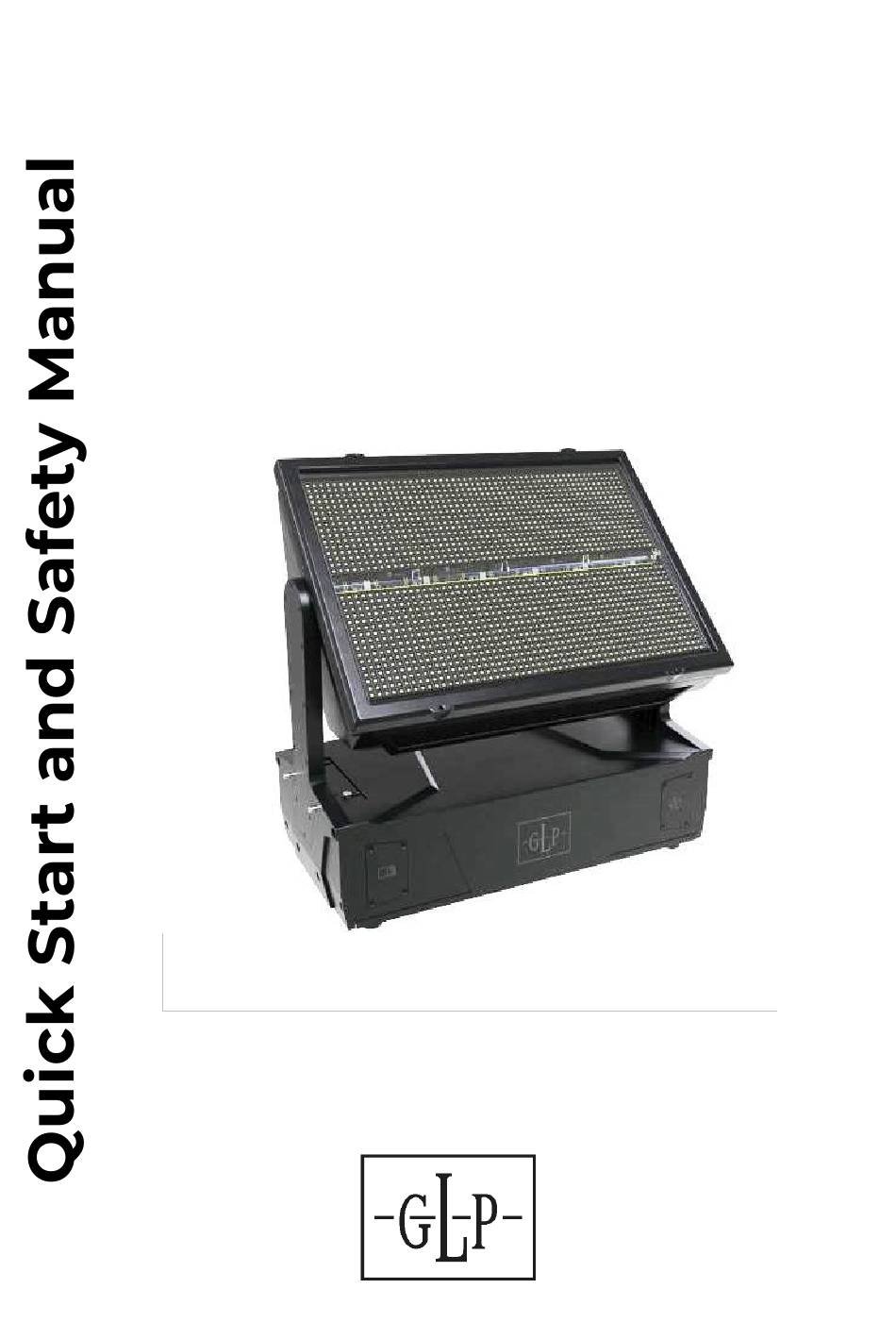

- Page 1 JDC2 IP Fixture software v.6.0.0 Document revision 20240905-03...
-
Page 2: Document Revisions
JDC2 IP Quick Start and Safety Manual © 2024 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries. -
Page 3: Table Of Contents
The IP rating system ..................12 Storage ........................12 Suitable environment ................... 12 Temperature fluctuation ................12 Connectors and cables ................12 4. JDC2 IP overview....................14 5. Features ........................15 User Manual ......................15 Tilt lock ........................15 6. Installation ........................16 Mounting options .................... -
Page 4: Safety
Warning! Risk of eye injury. General safety information Read this manual carefully before installing, using or servicing the GLP JDC2 IP lighting fixture. If you have any doubts or questions about how to use the fixture safely, contact your GLP® supplier for assistance. Your GLP supplier will be happy to help. - Page 5 • Check the GLP website at www.glp.de and make sure that you have the latest version of this manual. Check the fixture software version indicated on page 2 of this manual and then use the fixture’s control panel to check the version installed...
-
Page 6: Electrical Safety
Do not reapply power until the fixture has been repaired and made safe by a technician authorized by GLP. • Check that all power distribution equipment, cables and connectors are in perfect condition, rated for the electrical requirements of all connected devices, suitable for their application and suitable for the installation environment. -
Page 7: Fire Safety And Protection From Burns
Eye safety • The JDC2 IP is classified as a Risk Group 2 lighting fixture according to EN 62471 at a distance of 1 m (3.3 ft.). Possibly hazardous radiation emitted. Do not stare into the light output from the fixture. -
Page 8: Strobe Safety
JDC2 IP • Do not look at the fixture’s light output with optical instruments or any device that may concentrate the light output. • Make sure that persons near to or working on the fixture are not looking directly into the light output when the fixture lights up suddenly. - Page 9 • If the fixture becomes damaged, stop using it immediately and disconnect it from power. Do not attempt to use a fixture that is obviously damaged. • Do not modify the fixture in any way not described in its user documentation. • Install genuine GLP parts only. Rev. 20240905-03...
-
Page 10: Avoiding Damage To The Fixture
JDC2 IP 2. Avoiding damage to the fixture Important! Follow the directions in this section carefully, or the fixture may suffer damage that is not covered by the product warranty. General precautions • Do not drop the fixture or expose it to mechanical stress. -
Page 11: Avoiding Damage From Dust And Airborne Particles
JDC2 IP - In outdoor applications during daylight, make sure that the front face of the fixture is shielded or points away from the sun at all times, even when the fixture is not in use. - Do not aim other high-powered lighting fixtures directly at the fixture. -
Page 12: Outdoor Usage
JDC2 IP 3. Outdoor usage Although JDC2 IP fixtures have an IP rating for safe outdoor usage, the fixtures are designed for temporary outdoor use only. For important information on the outdoor use of IP-rated GLP fixtures, please see the document "Safety and warranty information for using GLP lighting fixtures in... - Page 13 JDC2 IP Arrange cables with a drip loop to prevent water from flowing down cables into connectors. Rev. 20240905-03...
-
Page 14: Jdc2 Ip Overview
JDC2 IP 4. JDC2 IP overview Figure 2. JDC2 IP overview A - Head G – Safety cable attachment point (underside of base) B – Cooling vent H – Control panel with backlit display C – Tilt lock I – NFC Sensor (behind display) D –... -
Page 15: Features
JDC2 IP 5. Features The JDC2 IP from GLP can be used in temporary installations for entertainment purposes in outdoor locations and in permanent and temporary installations in dry locations. Fixtures can be placed on or fastened to a level surface, or they can be suspended from a suitable structure as directed in this manual. -
Page 16: Installation
Warning! Read ‘Safety’ starting on page 4 for important safety information that you must understand before you install or operate the fixture. Install JDC2 IP fixtures only as described in this chapter, or you may create an installation that is unsafe. -
Page 17: End-To-End Alignment
16. Installing on a rigging truss or similar structure You can suspend the JDC2 IP fixture from a rigging truss or pipe using the bracket that is supplied with the fixture and rigging clamps that are available from GLP as optional accessories. - Page 18 Rigging clamps must be approved for the weight that they will support. To install the JDC2 IP on a rigging truss or pipe: Check that the truss or pipe is secure and can safely hold ten times the weight that it will support.
- Page 19 JDC2 IP Rigging clamps must be approved for the weight that they will support. Rev. 20240905-03...
-
Page 20: Ac Mains Power
AC power at 100-240 V, 50/60 Hz. Do not connect the fixture to power at any other voltage or to an external dimmer. The JDC2 IP does not have a power ON/OFF switch. Power is applied to the fixture as soon as the power cable becomes live. -
Page 21: Connecting Multiple Fixtures To Power In A Chain
(the Mains Thru output may not be used). Do not connect more than two (2) JDC2 IP fixtures in total to power in one chain at 200-240 V, 50 Hz. The power input cable supplied with the fixture is rated 16 A maximum. -
Page 22: Connecting To Dmx Data
The fixture also supports RDM (ANSI E1.20 Remote Device Management) over the DMX link. The JDC2 IP has two 5-pin XLR connectors for IN and THRU connections on a DMX data link using standard DMX protocol. Connectors use standard DMX pinout: •... -
Page 23: Starting And Stopping Operation
JDC2 IP 9. Starting and stopping operation Warning! Before you apply power to the JDC2 IP or operate it after a blackout, make sure that nobody is looking directly into the front of the fixture and that there is sufficient clearance for the head to tilt safely. -
Page 24: Service
Installing optical accessories The JDC2 IP has four M3 screw threads in the front of the head for the installation of optical accessories. JDC2 IP accessories such as a soft diffuser and an asymmetrical beam shaper are available from GLP. -
Page 25: Cleaning
JDC2 IP Cleaning JDC2 IP fixtures require occasional cleaning to prevent the buildup of dust, dirt, and residue from atmospheric effects. Failure to keep the fixture clean will significantly reduce light output and may cause heat buildup and damage that is not covered by the product warranty. -
Page 26: Technical Specifications
GLP 2 duration modes: Percentage and normal Tilt: 184°, 16-bit control Control and programming Control systems: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh Art-Net and sACN in preparation. Optional FPO port: LumenRadio CRMX (for more information contact GLP Service) - Page 27 Energy Efficiency Index (EEI): 0.28 Power Consumption Ec (kWh/1000h): 1500 kWh/1000h Maximum permitted number of fixtures daisy-chained to power 1 x JDC2 IP total @ 100-120 V, 60 Hz 2 x JDC2 IP total @ 200-240 V, 50 Hz Connections...
-
Page 28: Dimensions And Weight
JDC2 IP Dimensions and weight Height, head straight up (including rubber feet, without bracket): 452 mm / 17.8 in. Height, head horizontal (including rubber feet, without bracket): 354 mm / 14.0 in. Additional height with bracket: 30 mm (1.2 in.) Width across yoke: 444 mm / 17.5 in. -
Page 29: Dimensions
JDC2 IP 12. Dimensions JDC2 IP All dimensions are in millimeters Rev. 20240905-03... -
Page 30: Mounting Bracket Dimensions
Mounting bracket dimensions...
