- Page 1 LED Wall Washer GTD-L336P User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
- Page 2 © 2017 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
GTD-L336P User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................5 Product introduction .................................. 6 Installation ....................................6 Device installation ..................................6 Power / Control connection ............................... 7 Power connection ................................... -
Page 4: Safety Instructions
GTD-L336P User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ... -
Page 6: Packing And Shipping
GTD-L336P User Manual Packing and shipping Unpacking Notes All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. -
Page 7: Product Introduction

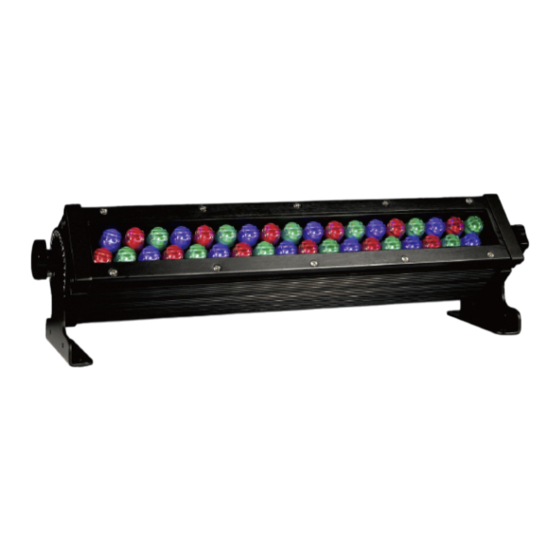

GTD-L336P User Manual Product introduction Manual adjusting screw Bracket Cast aluminm cover LED lens Barn door DMX input Display DMX output Power input 10 Power output 11 Safety cable mounting position Installation Device installation This fixture can be installed on stage or mounted in any directions. -
Page 8: Power/ Control Connection
GTD-L336P User Manual Power/ Control connection Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. Please apply series connection when many sets of fixtures are connected to the power source to avoid heavy load to the power source. -
Page 9: Testing
GTD-L336P User Manual Testing Connect the fixture to AC power. Check if the LED lamp is on and the fixture is independently controllable before putting into operation. Control panel The control panel with buttons and digital display can access the function menu and configure the fixture easily. -
Page 10: Menu Structure
GTD-L336P User Manual Menu structure L336P – Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Addr AXXX A001 Setting the DMX address MSTR/ ALON Running build-in program as the master or the slave... -
Page 11: Dmx Protocol
GTD-L336P User Manual DMX protocol L336P - DMX Protocol Revision: A Valid from firmware version: 1.0 DMX mode Default Name DMX value Function Standard (11ch) Basic (7ch) percentage Value 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast... - Page 12 GTD-L336P User Manual DMX mode Default Name DMX value Function Standard (11ch) Basic (7ch) percentage Value 0.0% 9.4% No function 9.8% 13.7% 3200K 14.1% 18.0% 3400K 18.4% 22.4% 3600K 22.7% 26.7% 3800K 27.1% 31.0% 4000K 31.4% 35.3% 4200K 35.7% 39.6% 4400K 40.0%...
-
Page 13: Technical Specification
GTD-L336P User Manual Technical specification Optical Light source: LED 3W (12 red, 12 green, 12 blue), quantity: 36pcs Expected average lifetime: 50000 hours Beam angle: 25° x 29°(50% peak angle)，44° x 52°(10% peak angle) RGB linear color mixing. -
Page 14: Cleaning And Maintenance
GTD-L336P User Manual Certification and Safety EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013 Safety: EN 60598-2-17:1989/A2:1991 Photometric Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. -
Page 15: Troubleshooting
GTD-L336P User Manual Troubleshooting Possible Cause Suggested Correction Problem Power switch not turned on. Turn on power switch. Locate the blown fuse. Remove the broken fuse. Insert a Take out the fuse and check if it is blown. replacement fuse of the correct amperage. -
Page 16: System Wiring Diagram
GTD-L336P User Manual System wiring diagram... -
Page 17: Spare Parts List
GTD-L336P User Manual Spare parts list Item Notes Switching Power Supply 1412050025A EDS150-5224P Aluminum substrate 5802010027A LJB0207A LED lamp board 5802910062A LJB0208B Display board 5809210043A L336P-101E10&102F10 SDI0201B Appendix 1... - Page 18 GTD-L336P User Manual Notes: P/N: 1502011029A Time: June 3 , 2017...
