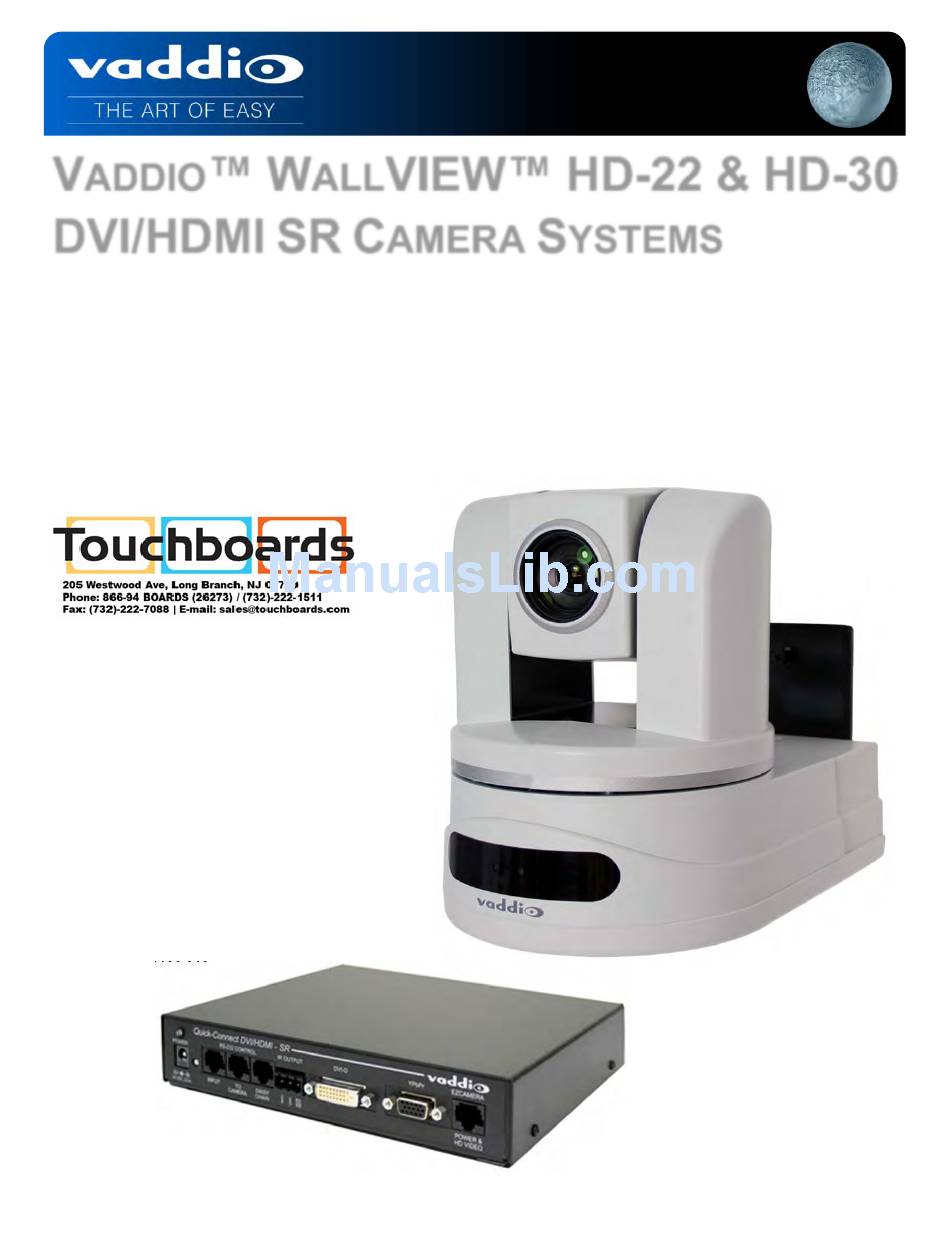

V
™ W
ADDIO
DVI/HDMI SR C
PowerVIEW™ Series High Definition PTZ Cameras featuring the Quick-Connect™
DVI/HDMI SR Interface
WallVIEW HD-22 DVI/HDMI SR - High Definition PTZ Camera System
Model Number 999-6966-000 (North America)
Model Number 999-6966-001 (International)
WallVIEW HD-30 DVI/HDMI SR - High Definition PTZ Camera System
Model Number 999-6976-000 (North America)
Model Number 999-6976-001 (International)
Quick-Connect DVI/HDMI SR Interface
PN: 998-1105-018
© 2013 Vaddio - All Rights Reserved. WallVIEW HD-22 & HD-30 DVI/HDMI SR Camera Systems - Document Number 342-0644 Rev A
VIEW™ HD-22 & HD-30
ALL
AMERA
Installation and User Guide
S
YSTEMS
(22X Optical Zoom)
(30X Optical Zoom)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO WALLVIEW HD-22
Summary of Contents for VADDIO WALLVIEW HD-22
- Page 1 WallVIEW HD-30 DVI/HDMI SR - High Definition PTZ Camera System (30X Optical Zoom) Model Number 999-6976-000 (North America) Model Number 999-6976-001 (International) Quick-Connect DVI/HDMI SR Interface PN: 998-1105-018 © 2013 Vaddio - All Rights Reserved. WallVIEW HD-22 & HD-30 DVI/HDMI SR Camera Systems - Document Number 342-0644 Rev A...
- Page 2 WallVIEW HD-22 and HD-30 SR Systems Inside Front Cover - Blank WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 2 of 24...
-
Page 3: Table Of Contents
Rear Panel Connections with Feature Call-outs ....................7 Image: WallVIEW HD-22/30 SR Camera System ..................... 7 First Time Set-up with the WallVIEW HD-22 or HD-30 DVI/HDMI SR System ............8 Image: PowerVIEW HD-22/30 Rear Panel Connections .................. 8 ... -
Page 4: Overview
Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 5: Unpacking
One (1) CONCEAL Wall Mount with Mounting Hardware Rear Connector/Cable Cover One (1) EZCamera Control Adapter (RJ-45 to DB-9) Mounting Hardware Documentation WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 5 of 24... -
Page 6: Camera Front View With Feature Call-Outs
IR sensors are built into the front of the HD-22 and HD-30 to receive IR signals from the IR remote control supplied with the camera. 4) Blue Power Light: A Vaddio blue power light is illuminated when the camera is turned on. WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 6 of 24... -
Page 7: Rear Panel Connections With Feature Call-Outs
Optional slot cards can be plugged into the rear panel slot of the HD-22 and HD-30 cameras. The HD-SDI Slot Card is sold separately and the EZIM CCU Slot Card is available in the CCU system package. WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 7 of 24... -
Page 8: First Time Set-Up With The Wallview Hd-22 Or Hd-30 Dvi/Hdmi Sr System
IR OUT on/off (SW3): The IR output is sent out on the RS-232 RJ-45 jack on the back of the camera. Turning on the IR output will allow IR signals to be transmitted over the Cat-5 cable to the head end. When using RS-232 control or Vaddio CCU controllers (also via RS-232), turn the IR OUT to OFF (up). ... -
Page 9: Quick-Connect Dvi/Hdmi Sr Interface
½-Rack sized enclosures. Optional panel holds two (2) interfaces side-by-side in 1-RU space. 2) Product Info: Logo, Name, Part Number FCC and CE Marks and standard FCC disclaimer language (exciting stuff)... WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 9 of 24... -
Page 10: Installation Procedures
DB-9F in some circles) to RJ-45F control adapter is supplied. More Notes: Use of pass-thru type RJ-45 connectors is highly discouraged. The Vaddio Cat-5 wiring standard uses pins 1, 2, 7 and 8 on both the power/video and the control Cat-5 cables. The pass- through connectors have proven to provide insufficient connectivity for these important signals. - Page 11 (or stored preset home position if one is set) and will output video when it has completely booted up. The WallVIEW is now ready for control information from a controller or IR Remote Commander. WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 11 of 24...
-
Page 12: Image: Basic Connectivity Example Of The Hd-22 Or Hd-30
(w/cable adapter) Cat-5 HD MV Multi-Viewer Monitor ProductionVIEW™ and Console (not shown) Precision Camera Controller Simulated Video Feed HD Monitor (Simulated Video) WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 12 of 24... -
Page 13: Daisy Chain Configurations
HAIN ONFIGURATIONS In some cases, daisy chain control situations just can’t be avoided. Because of this, Vaddio added “Daisy Chain Control Emulation” or DCCE™ to the Quick-Connect DVI/HDMI SR Interface in order to use the ClearVIEW or PowerVIEW series cameras daisy chain control situations. Hardware codecs (Cisco & Polycom) that control cameras using a daisy chain control topology are prime examples of where DCCE can be used. -
Page 14: Compliance And Ce Declaration Of Conformity - Powerview Hd-22 And Hd30
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 15: Compliance And Ce Declaration Of Conformity - Quick-Connect Dvi/Hdmi Sr Interface
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 16: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 17: General Specifications
Weight Approx. 2.4 lbs. (1.1kg) Moon in Front Page Header: Umbriel - Moon of the planet Uranus (tinted blue to expose detail). WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 17 of 24... -
Page 18: Appendix 1: Pin-Outs For The Hd-22/30 Camera
Digital GND (Out to Camera) Pin - 7 TXD (to RXD of control source) Pin - 8 RXD (from TXD of control source) WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 18 of 24... -
Page 19: Drawing: Powerview Hd-22/30 Camera Dimensions
WallVIEW HD-22 and HD-30 SR Systems Drawing: PowerVIEW HD-22/30 Camera Dimensions WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 19 of 24... -
Page 20: Communication Specification
No Flow control NOTE: The Vaddio PowerVIEW HD-22 and 30Control Protocol is similar, but not identical to, the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-22/30 specific commands in the following Command and Inquiry Lists. -
Page 21: Hd-22/30 Command List (2/2)
Pan Range: 8044 – 7FBC (-32,700 to +32,700) Tilt Range: E891 – 4C2B (-5,999 to +19,499) Actual Pan/Tilt ranges defined in Inquiry list WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 21 of 24... -
Page 22: Hd-22/30 Inquiry List (1/1)
8x 09 7E 59 00 FF ***Manual AGC Gain: 0:0dB, 1:3dB, 2:6dB, 3:9dB, 4:12dB, 5:15dB, 6:18dB, 7:21dB, 8:24dB, 9:27dB, 10:30dB, 11:33dB, 12:36dB, 13:39dB & 14:42dB WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 22 of 24... - Page 23 WallVIEW HD-22 and HD-30 SR Systems Inside Rear Cover - Blank WallVIEW HD-22 and HD-30 DVI/HDMI SR Cameras Systems - Document Number 342-0644 Rev A Page 23 of 24...
- Page 24 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2013 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, PowerVIEW, ProductionVIEW, WallVIEW, EZCamera, Quick-Connect, CONCEAL, DCCE and HSDS are trademarks of Vaddio.
