VADDIO ClearVIEW HD-20SE 999-6985-000 Installation And User Manual
High definition, robotic ptz camera featuring the quick-connect sr system interface
Hide thumbs
Also See for ClearVIEW HD-20SE 999-6985-000:
- Installation and user manual (46 pages) ,
- Installation and user manual (28 pages) ,
- Installation and user manual (18 pages)
Table of Contents
Advertisement
Quick Links
Installation and User Guide
V
™ C
VIEW™ HD-20
QSR S
ADDIO
LEAR
SE
YSTEM
ClearVIEW HD-20
High Definition, Robotic PTZ Camera featuring the Quick-Connect
SE
SR System Interface
Model Number 999-6985-000 (North America)
Model Number 999-6985-001 (International)
Model Number 999-6985-000AW (North America) Arctic White Camera
Model Number 999-6985-001AW (International) Arctic White Camera
Quick-Connect SR Interface
Part Number: 998-1105-016
© 2015 Vaddio - All Rights Reserved. ClearVIEW HD-20
QSR Camera System Manual - Document Number 342-0934 Rev A
SE
Advertisement
Table of Contents
Related Manuals for VADDIO ClearVIEW HD-20SE 999-6985-000
Summary of Contents for VADDIO ClearVIEW HD-20SE 999-6985-000
- Page 1 Model Number 999-6985-000AW (North America) Arctic White Camera Model Number 999-6985-001AW (International) Arctic White Camera Quick-Connect SR Interface Part Number: 998-1105-016 © 2015 Vaddio - All Rights Reserved. ClearVIEW HD-20 QSR Camera System Manual - Document Number 342-0934 Rev A...
-
Page 2: Table Of Contents
ClearVIEW HD-20 QSR S YSTEM ABLE OF ONTENTS Overview ..................................3 Unpacking: ................................. 4 Anatomy of the ClearVIEW HD-20se HD PTZ Camera .................... 5 Image: Front View ClearVIEW HD-20 ......................5 Image: Rear View ClearVIEW HD-20 Connectors ..................6 First Time Set-up with the ClearVIEW HD-20se: ...................... 7 Image: Rear Panel Connections ........................ -
Page 3: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 4: Unpacking
The information contained in this manual will help you install and operate your product. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website. -

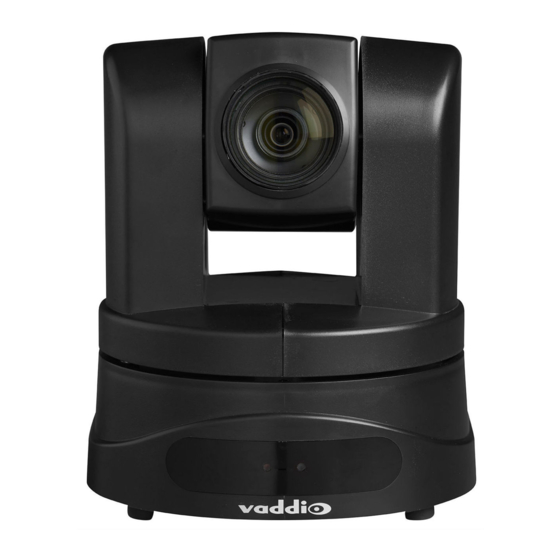

Page 5: Anatomy Of The Clearview Hd-20Se Hd Ptz Camera
IR signals from the IR remote control supplied with the camera. 4) Blue Power Light: A Vaddio blue LED power light is illuminated when the camera is turned on. This LED will blink when IR signals are received. ClearVIEW HD-20... -
Page 6: Image: Rear View Clearview Hd-20 Se Connectors
ClearVIEW HD-20 QSR S YSTEM Image: Rear View ClearVIEW HD-20 Connectors ⑤ ⑨ ⑥ ⑩ ⑦ ⑪ ⑧ ⑫ 5) RS-232 IN & IR Out: The RS-232 accepts modified VISCA protocol for camera control, as well as transmits IR signaling received by the IR receivers, which can be transmitted to third party devices (color coded blue). -
Page 7: First Time Set-Up With The Clearview Hd-20Se
Set the IR frequency of the camera if it is to respond to the IR remote control. c. If using the IR forwarding feature, set the IR OUT switch to ON (SW3). d. Set the Baud Rate dip switch (SW4) to 9600bps for most applications. Default for Vaddio EZCamera Cabling Systems is 9600bps. -
Page 8: Quick-Connect Sr Interface
ClearVIEW HD-20 QSR S YSTEM SR I UICK ONNECT NTERFACE Image: Rear Panel with Feature Call-outs ① ② ③ ④ ⑤ 1) Power Input: 5.5mm OD x 2.5mm ID coaxial connector for the provided 24 VDC, 2.0 Amp switching power supply. 2) EZCamera Power &... -
Page 9: Image: Basic Connectivity Example Of The Clearview
For RS-232, use a standard Cat-5 cable (568B termination for RJ-45 connectors) from the RS-232 port on the back of a Vaddio ProductionVIEW camera controller or switcher. If the camera will be connected to a third-party control system (such as AMX or Crestron), a DE-9 to RJ-45 adapter is supplied with the camera for RS-232. -
Page 10: Installation Basics
Cat-5 cable into the wrong RJ-45 may cause damage to the camera system and void the warranty! Step 2: System Wiring Follow the sample wiring diagrams for connecting the Cat-5 cables to the camera and Quick-Connect SR Interface. Additional diagrams are available on the Vaddio website. Connect the camera side as follows: ... - Page 11 ClearVIEW HD-20 QSR S YSTEM Step 3: Secure the Camera To the CONCEAL Wall Mount Bracket After all cables are attached to the camera, place the camera onto the camera mount and insert the two 1/4”-20 screws into the camera through the two-screw slots in the bottom of the mount. Note: Be sure to align each side of the camera evenly for the best fit prior to tightening the mounting screws.
-
Page 12: Compliance And Ce Declaration Of Conformity - Clearview
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 13: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 14: General Specifications
ClearVIEW HD-20 QSR S YSTEM ENERAL PECIFICATIONS ClearVIEW HD-20 , HD PTZ Camera Part Numbers 999-6985-000 (North America), 999-6985-001 (Int’l) - Black Camera Version 999-6985-000AW (North America), 999-6985-001AW (Int’l) - Artic White Camera Version Image Sensor 1/2.8-Type Exmor, high-speed, low-noise CMOS Image Sensor 2.38 Megapixels (2.14M effective pixels). -
Page 15: Ez-Power Video Rj-45 Connector Pin-Outs
ClearVIEW HD-20 QSR S YSTEM EZ-Power Video RJ-45 Connector Pin-outs Important Note: The EZ-Power Video RJ-45 Connector is for use with the Quick-Connect SR, Quick- Connect DVI/HDMI SR and Quick-Connect USB Interfaces ONLY (568B Wiring Standard). The video signals are differential (HSDS™) and can only be received by the interfaces above. YPbPr EZ-POWER Power+... -
Page 16: Communication Specification
TXD (to RXD of control source) No Flow control NOTE: The Vaddio ClearVIEW HD-20 Control Protocol is similar, but not identical to, the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-Series specific commands in the following Command and Inquiry Lists. -
Page 17: Se Command List (2/2)
ClearVIEW HD-20 QSR S YSTEM HD-20 Command List (2/2) Command Set Command Command Packet Comments CAM_Backlight 8x 01 04 33 02 FF 8x 01 04 33 03 FF CAM_Aperture Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Down 8x 01 04 02 03 FF Direct... -
Page 18: Se Inquiry List (1/1)
ClearVIEW HD-20 QSR S YSTEM HD-20 Command List (2/2) Notes *Zoom and Focus Data: CAM_Zoom: Range(0x000–0x071A) CAM_Focus: Range (0x0ed-0x0944) dependent on Zoom Position **Additional Information: Pan Range: 8044 – 7FBC (-32,700 to +32,700) Tilt Range: E891 – 4C2B (-5,999 to +19,499) Actual Pan/Tilt ranges defined in Inquiry list HD-20 Inquiry List (1/1) - Page 19 ClearVIEW HD-20 QSR S YSTEM : HD-20 OSD M ABLE TRUCTURE Use this OSD menu with the IR Commander to make video adjustments (AWB, COLOR, EXP, etc…) on the HD-20 Camera. Menu Controls Modes/Range Default Notes SSDR Dynamic Range Adjustment SSDR 0-15 *When Dynamic Range is ON Return...
- Page 20 ClearVIEW HD-20 QSR S YSTEM HD-20 OSD Menu Structure (continued) Menu Controls Range/Modes Default Notes SPECIAL DAY/NIGHT> COLOR / B/W / AUTO COLOR Do not use DIS> OFF / ON Digital Image Stabilization - leave off DEFOG OFF / ON / MANUAL/AUTO Do not use COMM ADJUST>...
- Page 21 ClearVIEW HD-20 QSR S YSTEM Inside Back Cover - Mostly Blank ClearVIEW HD-20 QSR S , Document Number 342-0934 Rev A Page 21 of 22 YSTEM...
- Page 22 ©2015 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, ClearVIEW, ProductionVIEW, EZCamera, Quick-Connect, CONCEAL and HSDS are trademarks of Vaddio.
