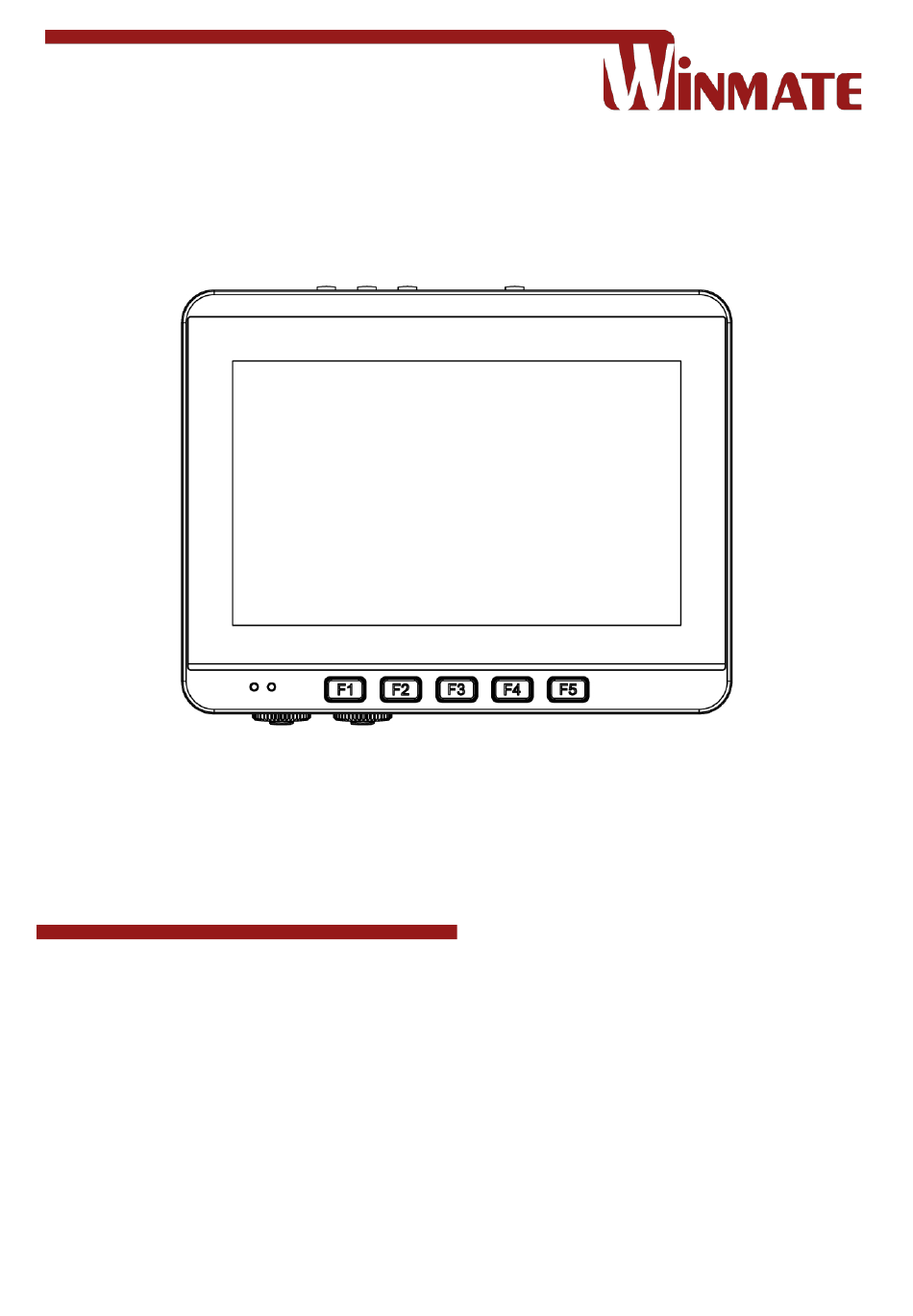

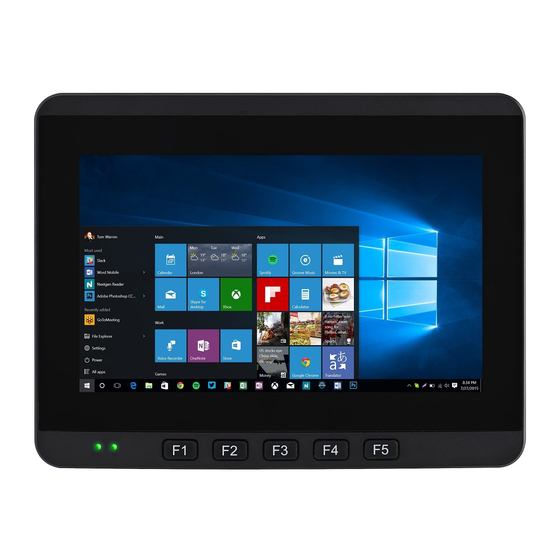

- Page 1 Vehicle Mount Computer Intel® Celeron® Elkhart Lake N6210 Processor (1.5M Cache, up to 2.60 GHz) FM07E User Guide Document Part No. 9152111I109O Version 1.1 Please read the instructions carefully before using this product, and save this manual for future use.
-
Page 3: Table Of Contents
FM07E Vehicle Mount Computer User Guide Table of Content Table of Content ..........................1 Read Me First ..........................5 Informations de sécurité (FR)......................6 Safety Information (EN) ......................... 6 General Guideline .......................... 6 About This Guide ........................... 6 Chapter 1: Introduction ......................... 7 1.1 Introduction .......................... - Page 4 FM07E Vehicle Mount Computer User Guide 3.4.3 DIDO Controller ......................26 3.5 Using the Wireless WAN (4G/LTE) ..................26 3.6 Using Recovery Wizard to Restore Computer ................ 27 Chapter 4: Vehicle Mounting ....................... 28 4.1 Vehicle Mount Instruction ....................... 28 4.2 VESA Mount Installation ......................
- Page 5 Warranty Winmate Inc. warrants that each of its products is free from material and workmanship defect for a period of one year starting from the invoice date. If the customer discovers a defect, Winmate Inc. will, at its option, repair or replace the defective product to the customer, provided it is returned during the warranty period, with transportation charges prepaid.
- Page 6 FM07E Vehicle Mount Computer User Guide FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. ⚫ This device must accept any interference received including interference that ⚫...
-
Page 7: Read Me First
Read Me First Read Me First Follow and adhere to all warnings and instructions in this manual. For your safety, please read all safety and operating instructions before using the product. Keep this manual for future reference. Attention: Pour réduire le risque d’incendie ou de choc électrique ne pas exposer l’appareil à... -
Page 8: Informations De Sécurité (Fr)
It is recommended to reboot the device when some functions are defect or inactive. If it still cannot solve the problems, please contact your dealer or agent. About This Guide This User Guide provides instruction for the system administrator to follow when configuring and using the FM07E Vehicle Mount Computer. Note: Display images shown may vary slightly from actual display. -
Page 9: Chapter 1: Introduction
1024 x 600 pixel resolution. The FM07E delivers flexibility and mobility in a vehicle mounted computer form factor. FM07E is designed to be mounted on the vehicle and supports 9~36V DC wide power input with ignition. -
Page 10: Package Contents
FM07E Vehicle Mount Computer User Guide 1.2 Package Contents Standard Before using this device, make sure that all the items listed below are present in your package: FM07E Computer User Guide M12 LAN Cable M12 Power Cable RS-232 Cable USB Cable... -
Page 11: Components
Chapter 1: Introduction 1.3 Components 1.3.1 Front View Item Description 7-inch Touch Screen Acts as one of the inputs for the device 5 programmable function keys that can be configured by Win-Set ® Function Keys Utility Power LED indicator On: Power is on Off: Power is off LED Indicators Storage LED indicator... -
Page 12: Rear View
FM07E Vehicle Mount Computer User Guide 1.3.2 Rear View Item Description Speaker Emits sound RAM Mount RAM base dimensions: 38.1 x 30 mm VESA Mount VESA dimensions : 75 x 75 mm 1.3.3 Side View Left Side Right Side Item... -
Page 13: Top And Bottom View
Chapter 1: Introduction 1.3.4 Top and Bottom View Top Side Item Description WWAN Antenna For WWAN antenna (Optional). GPS Antenna For GPS antenna (Optional). WLAN Antenna For WLAN antenna. (Main) Power Button Press power button to start the system. Power Input 9-36V DC with Ignition. -
Page 14: Chapter 2: Hardware
2.1 System Hardware 2.1.1 Central Processing Unit The FM07E is running on Intel® Celeron® Elkhart Lake N6210 Processor (1.5M Cache, up to 2.60 GHz) and the operating system of this device is Windows 10 IoT Enterprise. 2.1.2 Input and Output Connectors The FM07E device supports the following I/O connectors: •... -
Page 15: Power Cable Installation
Wiring Instruction 1. Place the device on the vehicle dock and make sure the device is Off. 2. Connect the M12 power cable to FM07E by aligning the connector pins and then push it, twist to fasten the connection. 3. Connect the AC plug to the electrical outlet. -
Page 16: Connecting The Power Cable For Installation On The Vehicle
FM07E Vehicle Mount Computer User Guide 2.2.3 Connecting the power cable for installation on the vehicle WARNING!/ AVERTISSEMENT! This power cable should only be used on the 12 to 36 Volt forklifts. Ce câble d'alimentation ne doit être utilisé que sur les chariots élévateurs de 12 à 36 volts. -
Page 17: Vehicle Dc Power Supply
2.3 Power Control 2.3.1 Power Button Power button is located on the top of the device. When the FM07E is connected to the external power and the power button is ON, the device can be powered on. 2.3.2 Ignition Control... -
Page 18: External Connectors
FM07E Vehicle Mount Computer User Guide 2.4 External Connectors 2.4.1 Power Connector The FM07E has M12 type 4 pin power input connector which accepts 9-36V DC power input. Use power cable (supplied with FM07E) to connect the FM07E to the source of power. Warning!/ Avertissement! This procedure requires a trained service personnel only, improper installation can cause serious damage to the vehicle or the device. -
Page 19: Rs-232 Connector
Chapter 2: Hardware 2.4.3 RS-232 Connector The FM07E has DB-9 RS-232 connector. Use serial cable to connect the FM07E to external devices such as printer or scanner. Pin assignment and signal names of RS-232 connector Signal Description Data Carrier Detect – Input Receive Data –... -
Page 20: Usb 2.0 Connector
CN2-15 2.4.5 USB 2.0 Connector The FM07E has DB-9 USB 2.0 connector located on the side that can support two USB devices such as printer or scanner. Pin assignment and signal names of USB 2.0 (D-9 Female) connector and cable... -
Page 21: External Vehicle Remote Antenna Installation
2. Align the antenna with the SMA connector and fasten it as following picture. 3. Adjust the position of external antennas. 2.6 USB Keyboard/ Mouse A standard USB keyboard or mouse can be attached to the FM07E using the appropriate cable. Attach the cable to the FM07E USB-A type connector. -
Page 22: Chapter 3: Software
FM07E Vehicle Mount Computer User Guide Chapter 3: Software This chapter and describes how to operate FM07E Vehicle Mount Computer. 3.1 Setting Up Windows for the First Time This chapter details how to setup the Windows that may be installed on the tablet for the first time. - Page 23 Chapter 3: Software 3. On the Here's the legal stuff screen, read through the disclosures, then tap Accept. 4. Windows will then try to connect to network. Tap Skip this step to continue without a wireless connection as you can then set up the network later. 5.
-
Page 24: Control Panel
FM07E Vehicle Mount Computer User Guide 6. To create a local account, type your User name, password, and Password hint in the fields provided, then tap Next. 7. The initial setup screens are complete, and the desktop is displayed. 8. Read any introductory screens describing features of your computer, and tap Next upon completing each. -
Page 25: Display
Chapter 3: Software 3.3.2 Display In the Windows 10 IoT Enterprise, user can adjust the resolution or adjust brightness. All these functions are managed through the control panel. Start > Control Panel > Appearance and Personalization > Display 3.3.3 Power Options Select a Power Plan Windows 10 IoT Enterprise contains two standard options for power plan: Balanced and Power saver. -
Page 26: Region And Language
FM07E Vehicle Mount Computer User Guide 3.3.4 Region and Language The instruction for installing, changing and uninstalling language in this section are applicable to FM07E with Windows 7 Professional for Embedded System. Start > Control Panel > Clock, Region and Language > Language 3.3.5 Sounds Start >... -
Page 27: Winset Introduction
Chapter 3: Software 3.4 Winset Introduction Winset provides quick access to the tablet’s functions and features, such as setting up shortcuts, using camera, powering on/off built-in devices, programming function key, and changing power management. To launch the Winset, double-tap on Winset Utility Icon .Operations and functions on each menu options is explained in detail in the coming section. -
Page 28: Dido Controller
FM07E Vehicle Mount Computer User Guide 3.4.3 DIDO Controller 3.5 Using the Wireless WAN (4G/LTE) The FM07E supports data 4G/LTE connection. Before using the data connection program, please insert the Micro-SIM card to your vehicle mount computer. Caution/ Attention Please power off the tablet before installing the Micro SIM card, or the device might be damaged by the incorrect installation behaviors. -
Page 29: Using Recovery Wizard To Restore Computer
Chapter 3: Software 3.6 Using Recovery Wizard to Restore Computer The FM07E Vehicle Mount Computer has a dedicate recovery partition stored on the hard drive of the vehicle computer to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built-in to each device. -
Page 30: Chapter 4: Vehicle Mounting
The rear cover of the FM07E supports VESA mount (75 x 75 mm). VESA Mounting Installation Instructions: 1. Attach the VESA Plate to the rear cover of the FM07E using 4 x M4 mm Phillips screws. 2. Follow instructions provided by VESA mount parts supplier. -
Page 31: Mounting 1 - No Drill Solution
Chapter 4: Vehicle Mounting Important: The information below is just a guideline on how you should mount the Winmate device using RAM Mount. To purchase the RAM parts, please follow the RAM Mounts Part and purchase from your preferred retailer. -
Page 32: Mounting 2 - Drill Solution
FM07E Vehicle Mount Computer User Guide 4.3.2 Mounting 2 – Drill Solution You can order mounting accessories from RAM Mounts. RAM Mount Part Component Description Number 3.68” Round Base with 2.25” round base RAM-D-202U mounts - on the forklift Ball... -
Page 33: Ram Mount Assembly
Chapter 4: Vehicle Mounting 4.3.3 RAM Mount Assembly Step 1 Install RAM Clamp to vehicle or forklift 1.1 Determine the position for mounting the RAM clamp mount according to RAM Mounts installation guide and specification. 1.2 Place the upper clamp with ball on the beam, insert the bolt. 1.3 Place the lower clamp below the beam. - Page 34 FM07E Vehicle Mount Computer User Guide RAM Mount Component Description Part Number Winmate Keyboard 4 VESA Holes on the plate to Adapter Plate device and 4 AMPS holes to (designed by Winmate) RAM Ball Screw SUS304 M4 x 10 mm Screw...
-
Page 35: Appendix A: Product Specifications
Appendix A: Product Specifications Appendix A: Product Specifications FM07E- 7-inch Vehicle Mount Computer Item Specifications System Processor Intel® Celeron® Elkhart Lake N6210 Processor (1.5M Cache, up to 2.60 GHz) System Memory 4GB SO-DIMM, DDR4 3200 (up to 16GB) Storage 128GB M.2 2242 SSD Operating System Windows®... - Page 36 FM07E Vehicle Mount Computer User Guide FM07E- 7-inch Vehicle Mount Computer Item Specifications Operating Temperature -20°C to 60°C Humidity 10% to 95% RH, non-condensing IP Rating IP65 Shock MIL-STD-810G Method 516.6 Procedure I, 30 g for 18 ms, 300 m/s2 Vibration MIL-STD-810G Method 514.6 Procedure I, 1.60/ 1.96/ 2.18 g rms for XYZ/ 5-500 Hz...
- Page 37 NOTE...
- Page 38 NOTE...
- Page 39 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2022 Winmate Inc. All rights reserved.
