PANEL DESCRIPTION

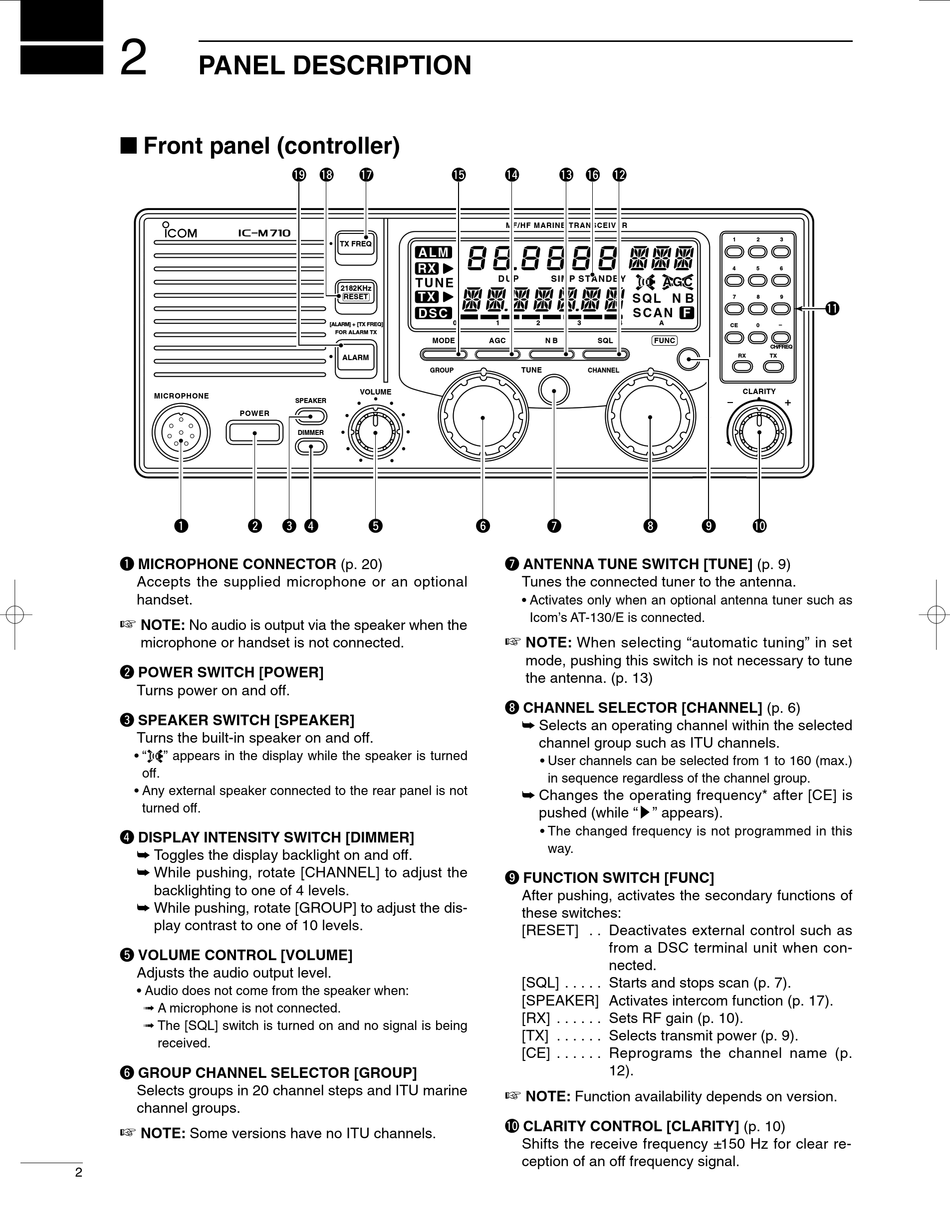

I Front panel (controller)
iM 710
MICROPHONE
POWER
q
q MICROPHONE CONNECTOR (p. 20)
Accepts the supplied microphone or an optional
handset.
NOTE: No audio is output via the speaker when the
microphone or handset is not connected.
w POWER SWITCH [POWER]
Turns power on and off.
e SPEAKER SWITCH [SPEAKER]
Turns the built-in speaker on and off.
• "è" appears in the display while the speaker is turned
off.
• Any external speaker connected to the rear panel is not
turned off.
r DISPLAY INTENSITY SWITCH [DIMMER]
➥ Toggles the display backlight on and off.
➥ While pushing, rotate [CHANNEL] to adjust the
backlighting to one of 4 levels.
➥ While pushing, rotate [GROUP] to adjust the dis-
play contrast to one of 10 levels.
t VOLUME CONTROL [VOLUME]
Adjusts the audio output level.
• Audio does not come from the speaker when:
➟ A microphone is not connected.
➟ The [SQL] switch is turned on and no signal is being
received.
y GROUP CHANNEL SELECTOR [GROUP]
Selects groups in 20 channel steps and ITU marine
channel groups.
NOTE: Some versions have no ITU channels.
2
!9 !8 !7
TX FREQ
2182KHz
RESET
[ALARM] + [TX FREQ]
FOR ALARM TX
ALARM
VOLUME
SPEAKER
DIMMER
w e r t
!5 !4 !3
MF/HF MARINE TRANSCEIVER
A LM
RX
D U P SIMP STANDBY
TU N E
T X
D SC
0 1 2 3
MODE AGC N B
TUNE
GROUP
y u
u ANTENNA TUNE SWITCH [TUNE] (p. 9)
Tunes the connected tuner to the antenna.
• Activates only when an optional antenna tuner such as
Icom's AT-130/E is connected.
NOTE: When selecting "automatic tuning" in set
mode, pushing this switch is not necessary to tune
the antenna. (p. 13)
i CHANNEL SELECTOR [CHANNEL] (p. 6)
➥ Selects an operating channel within the selected
channel group such as ITU channels.
• User channels can be selected from 1 to 160 (max.)
in sequence regardless of the channel group.
➥ Changes the operating frequency* after [CE] is
pushed (while "s" appears).
• The changed frequency is not programmed in this
way.
o FUNCTION SWITCH [FUNC]
After pushing, activates the secondary functions of
these switches:
[RESET] . . Deactivates external control such as
[SQL] . . . . . Starts and stops scan (p. 7).
[SPEAKER] Activates intercom function (p. 17).
[RX] . . . . . . Sets RF gain (p. 10).
[TX] . . . . . . Selects transmit power (p. 9).
[CE] . . . . . . Reprograms the channel name (p.
NOTE: Function availability depends on version.
!0 CLARITY CONTROL [CLARITY] (p. 10)
Shifts the receive frequency ±150 Hz for clear re-
ception of an off frequency signal.
!6 !2
1
4
AGC AGC
S QL N B
7
S C AN F
4 A
CE
SQL FUNC
RX
CHANNEL
CLARITY
i o
from a DSC terminal unit when con-
nected.
12).
2 3
5 6
8 9
!1
0 –
CH/FREQ
TX
!0
