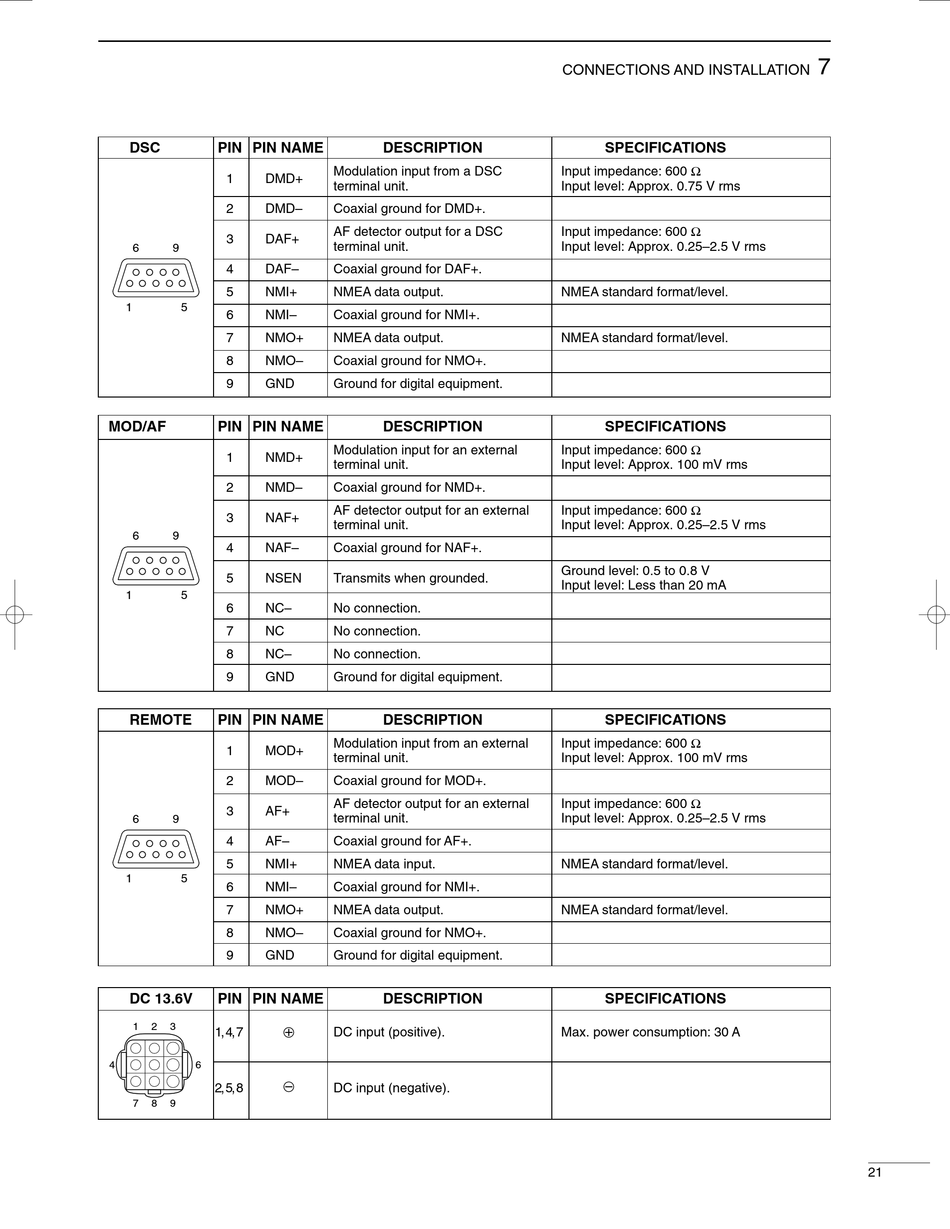

Icom IC-M710RT Instruction Manual page 25

DSC PIN PIN NAME
1 DMD+
2 DMD–
3 DAF+
6 9
4 DAF–
5 NMI+
1 5
6 NMI–
7 NMO+
8 NMO–
9 GND
MOD/AF PIN PIN NAME
1 NMD+
2 NMD–
3 NAF+
6 9
4 NAF–
5 NSEN
1 5
6 NC–
7 NC
8 NC–
9 GND
REMOTE PIN PIN NAME
1 MOD+
2 MOD–
3 AF+
6 9
4 AF–
5 NMI+
1 5
6 NMI–
7 NMO+
8 NMO–
9 GND
DC 13.6V PIN PIN NAME
1 2 3
1, 4, 7
4 6
2, 5, 8
7 8 9
DESCRIPTION
Modulation input from a DSC
terminal unit.
Coaxial ground for DMD+.
AF detector output for a DSC
terminal unit.
Coaxial ground for DAF+.
NMEA data output.
Coaxial ground for NMI+.
NMEA data output.
Coaxial ground for NMO+.
Ground for digital equipment.
DESCRIPTION
Modulation input for an external
terminal unit.
Coaxial ground for NMD+.
AF detector output for an external
terminal unit.
Coaxial ground for NAF+.
Transmits when grounded.
No connection.
No connection.
No connection.
Ground for digital equipment.
DESCRIPTION
Modulation input from an external
terminal unit.
Coaxial ground for MOD+.
AF detector output for an external
terminal unit.
Coaxial ground for AF+.
NMEA data input.
Coaxial ground for NMI+.
NMEA data output.
Coaxial ground for NMO+.
Ground for digital equipment.
DESCRIPTION
+
DC input (positive).
_
DC input (negative).
CONNECTIONS AND INSTALLATION
SPECIFICATIONS
Input impedance: 600 Ω
Input level: Approx. 0.75 V rms
Input impedance: 600 Ω
Input level: Approx. 0.25–2.5 V rms
NMEA standard format/level.
NMEA standard format/level.
SPECIFICATIONS
Input impedance: 600 Ω
Input level: Approx. 100 mV rms
Input impedance: 600 Ω
Input level: Approx. 0.25–2.5 V rms
Ground level: 0.5 to 0.8 V
Input level: Less than 20 mA
SPECIFICATIONS
Input impedance: 600 Ω
Input level: Approx. 100 mV rms
Input impedance: 600 Ω
Input level: Approx. 0.25–2.5 V rms
NMEA standard format/level.
NMEA standard format/level.
SPECIFICATIONS
Max. power consumption: 30 A
7
21
