7

CONNECTIONS AND INSTALLATION

I Supplied accessories

DC power cable (OPC-568) . . . . . . . . . . . . . . . . . 1
Mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Bracket knobs (8820000170) . . . . . . . . . . . . . . . . 4
CONNECTORS
DIN connector (8-pin for ACC1) . . . . . . . . . . . . . . 1
DIN connector (7-pin for ACC2) . . . . . . . . . . . . . . 1
Tuner connector (56100000150) . . . . . . . . . . . . . . 1
Pins for tuner connector (6510019030) . . . . . . . . . 4
DIN connector cover (GMDSS only—attach to the
NUTS AND BOLTS
Allen bolt (M6 × 50) . . . . . . . . . . . . . . . . . . . . . . . . 4
Self-tapping screws (M6 × 30) . . . . . . . . . . . . . . . . 4
Nuts (M6; use 2 pcs. for each bolt) . . . . . . . . . . . . 8
Flat washers (M6) . . . . . . . . . . . . . . . . . . . . . . . . . 8
Spring washers (M6) . . . . . . . . . . . . . . . . . . . . . . . 4
Self-tapping screws
(3.5 × 30 for mic. hanger) . . . . . . . . . . . . . . . . 2
FUSES
FGB 30 A (rear panel) . . . . . . . . . . . . . . . . . . . . . . 2
FGB 5 A (internal) . . . . . . . . . . . . . . . . . . . . . . . . . 2

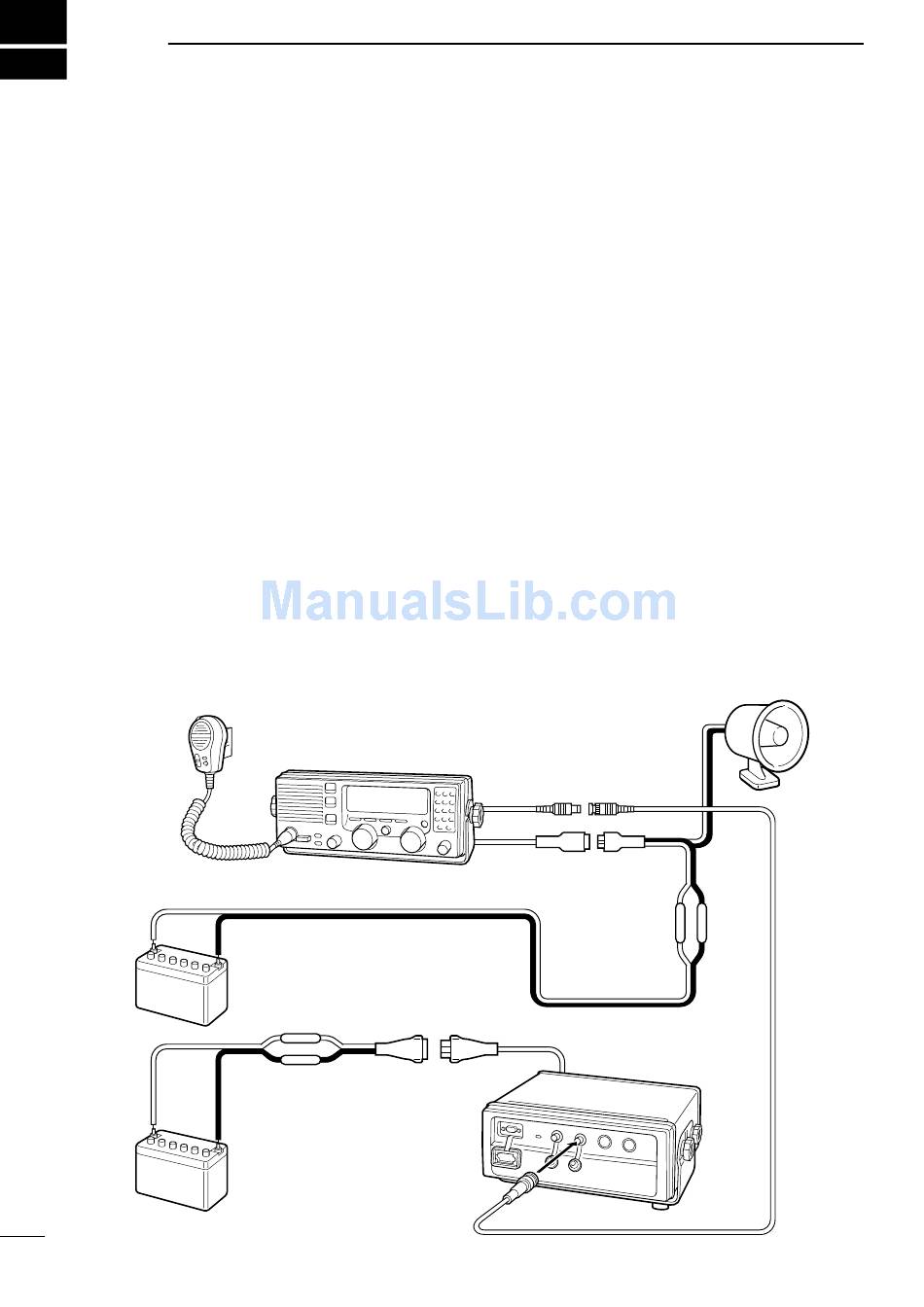

I Attaching 1 remote controller

16
ACC sockets) . . . . . . . . . . . . 1
RC-21 (REMOTE CONTROLLER) ACCESSORIES
Microphone (HM-120*) . . . . . . . . . . . . . . . . . . . . . 1
Microphone hanger* . . . . . . . . . . . . . . . . . . . . . . . 1
DC power cable (OPC-775) . . . . . . . . . . . . . . . . . 1
Mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Bracket knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
NUTS AND BOLTS
Self-tapping screws*
(3.5 × 30 for mic. hanger) . . . . . . . . . . . . . . . . 2
Flat washers (M5) . . . . . . . . . . . . . . . . . . . . . . . . . 2
Nuts (M6; use 2 pcs. for each bolt) . . . . . . . . . . . 10
Spring washers (M6) . . . . . . . . . . . . . . . . . . . . . . . 5
Allen bolt (M6 × 50) . . . . . . . . . . . . . . . . . . . . . . . . 5
Self-tapping screws . . . . . . . . . . . . . . . . . . . . . . . . 5
Flat washers (M6) . . . . . . . . . . . . . . . . . . . . . . . . 10
Ground lug (M5) . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FUSES
FGB 30 A (rear panel) . . . . . . . . . . . . . . . . . . . . . . 2
FGB 5 A (internal) . . . . . . . . . . . . . . . . . . . . . . . . . 2
*Depends on version.
