I N S T A L L A T I O N
I N S T R U C T I O N S
OCEAN MASTER MEGA MAX VOILARE CENTER POST

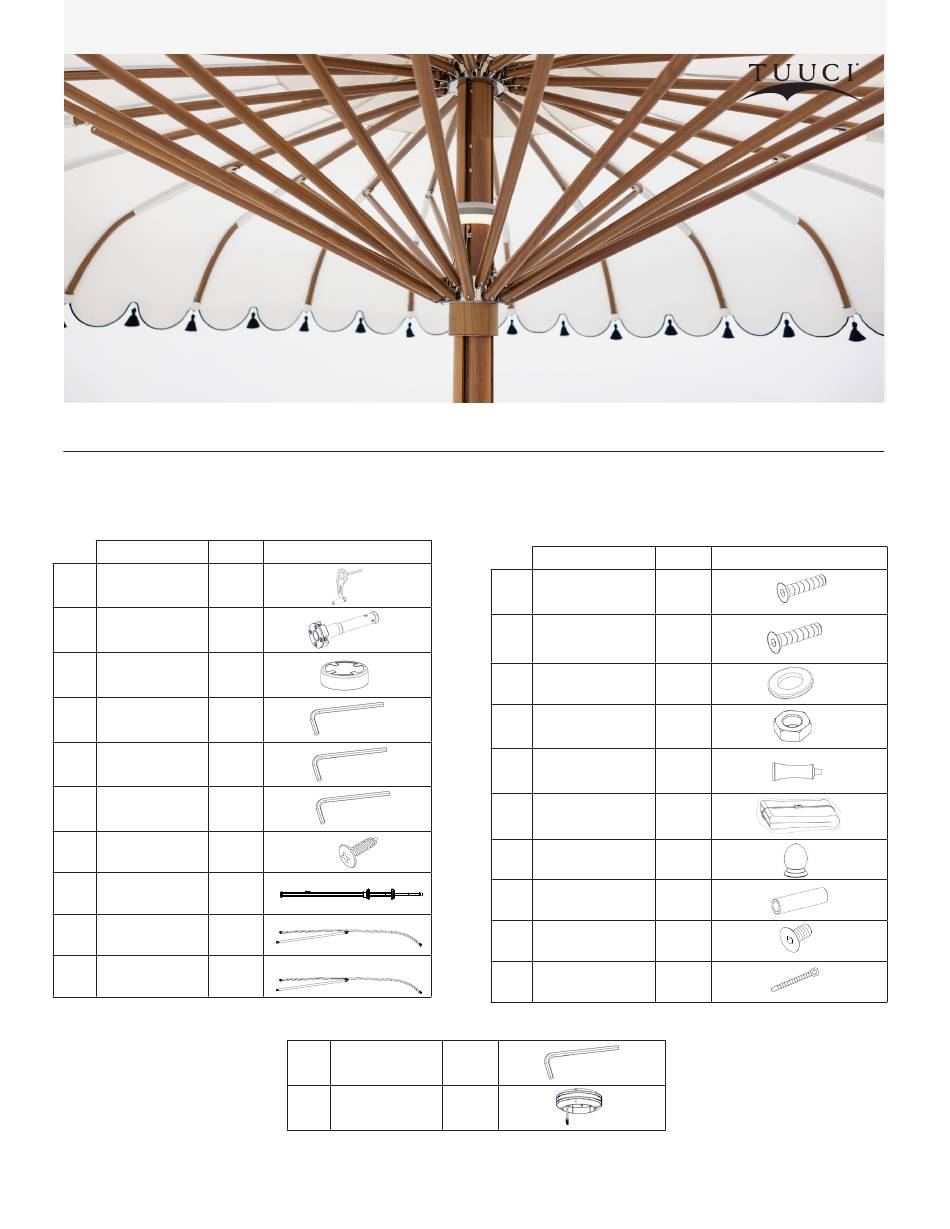

HARDWARE AND PARTS INCLUDED (IMAGES ARE NOT 1:1 SCALE)
DESCRIPTION
QTY
a
Crank Handle
1
b
Base Stem
1
c
Beauty Cover
1
d
1/2" Allen Wrench
1
e
5/16" Allen Wrench
1
f
5/32" Allen Wrench
2
Screw
g
50
#10 x 7/8"
h
Pole
1
i
Ribs A
12
j
Ribs B
12
IMPORTANT: THE ANCHOR MUST BE INSTALLED BEFORE MOUNTING THE PARASOL.
TO PROTECT YOU AND YOUR PRODUCT, PLEASE READ THE INSTALLATION INSTRUCTIONS.
1013708
PART IMAGE
INCLUDED ON MODEL WITH LIGHT
2.5 mm Allen
n
1
Wrench
Ambia LED Light
o
1
+ Touch Switch
1
DESCRIPTION
QTY
Screw
k
5
1/2-13" x 1-1/2"
Screw
l
5
1/2-13" x 2-1/4"
m
Washer, 1/2"
5
n
Nut, 1/2-13"
5
o
Lubricant
1
p
Canopy
1
q
Finial
1
r
Bushing 1/4-20
50
s
1/4-20 x 1/2" Screw
50
t
Umbrella Strap
1
PART IMAGE
