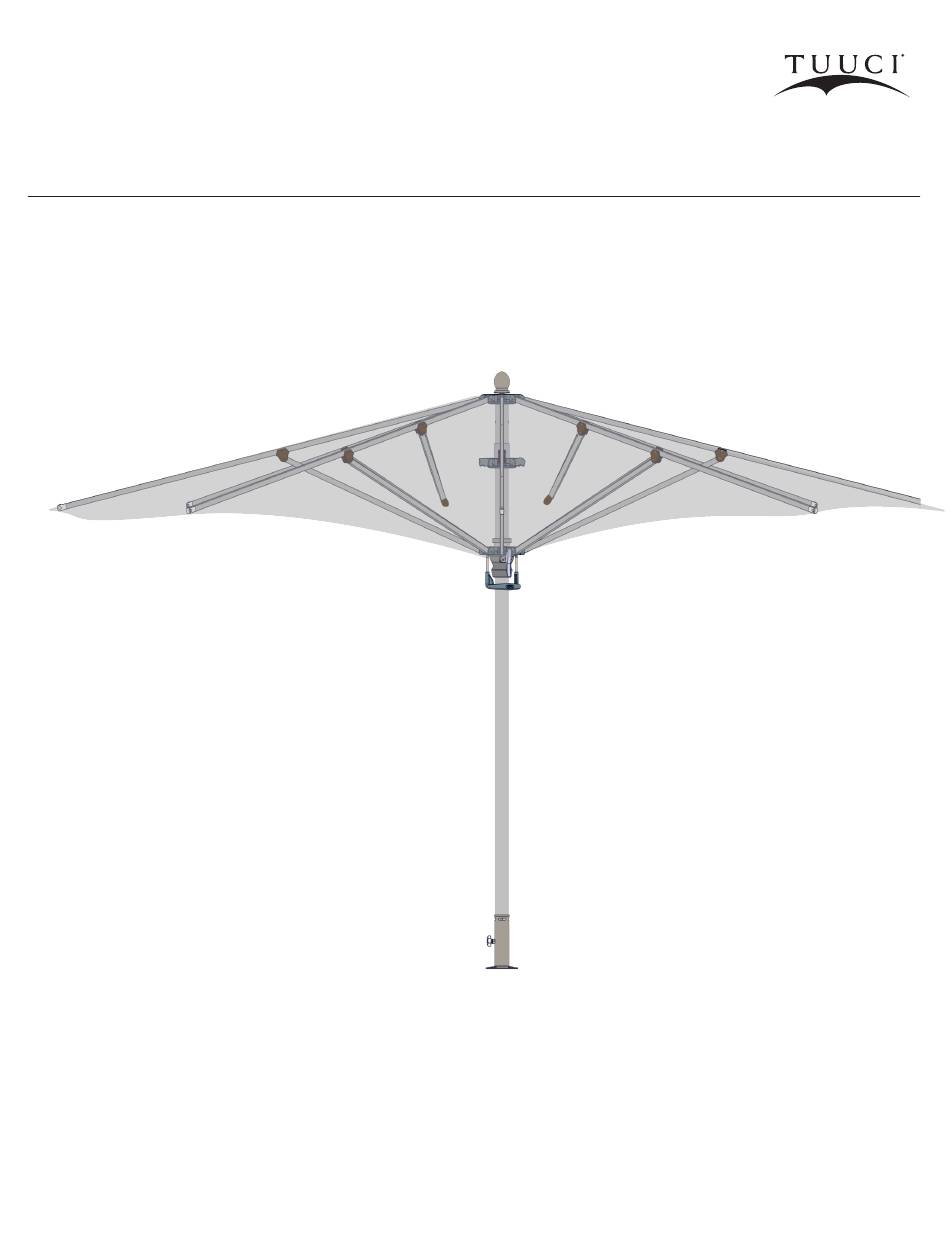

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S BAY MASTER MAX CENTER POST TO PROTECT YOUR PRODUCT, PLEASE READ THE OPERATING INSTRUCTIONS BEFORE OPENING THE PARASOL.
- Page 2 I N S T A L L A T I O N I N S T R U C T I O N S BAY MASTER MAX CENTER POST STEP 1 REMOVE ALL PACKAGING FROM IN AND AROUND PARASOL. STEP 2 REMOVE DECK MOUNT FROM MAST AND INSTALL SELECTED MOUNTING ANCHOR.
- Page 3 I N S T A L L A T I O N I N S T R U C T I O N S BAY MASTER MAX CENTER POST STEP 4 GENTLY SEPARATE EACH INDIVIDUAL RIB FROM CENTER POST, APPROXIMATELY 10 INCHES.
- Page 4 I N S T A L L A T I O N I N S T R U C T I O N S BAY MASTER MAX CENTER POST STEP 6 CONNECT RIB STRUTS TO HUB WITH KEY RING CLIP.
- Page 5 I N S T A L L A T I O N I N S T R U C T I O N S BAY MASTER MAX CENTER POST STEP 7 TO CLOSE PARASOL, PRESS DOWN CLIP BRACKET TO DISENGAGE FROM SLOT THEN SLIDE DOWN GENTLY.
-
Page 6: Lighting Specifications
3.34 A LIGHT SPECIFICATIONS: 4 LED BARS WITH THREE (3) LEVELS OF BRIGHT- NESS OPERATED THROUGH A TOUCH SWITCH. OPERATING CURRENT: A. LOW: 0.07 A B. MEDIUM: 0.25 A C. HIGH: 0.60 A LED COLOR TEMPERATURE: 3000 K TUUCI.COM INSA4000...
