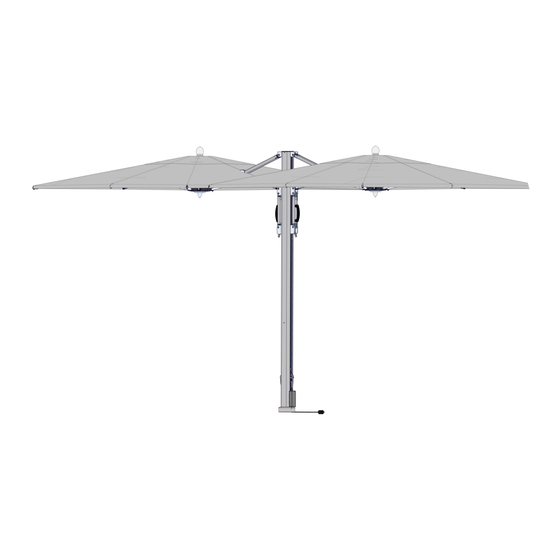

Tuuci OCEAN MASTER MAX DUAL CANTILEVER Installation Instructions
With easydrive crank
Hide thumbs
Also See for OCEAN MASTER MAX DUAL CANTILEVER:
- Operating instructions (3 pages) ,
- Installation instructions manual (10 pages) ,
- Installation instructions manual (7 pages)
Related Manuals for Tuuci OCEAN MASTER MAX DUAL CANTILEVER
Summary of Contents for Tuuci OCEAN MASTER MAX DUAL CANTILEVER

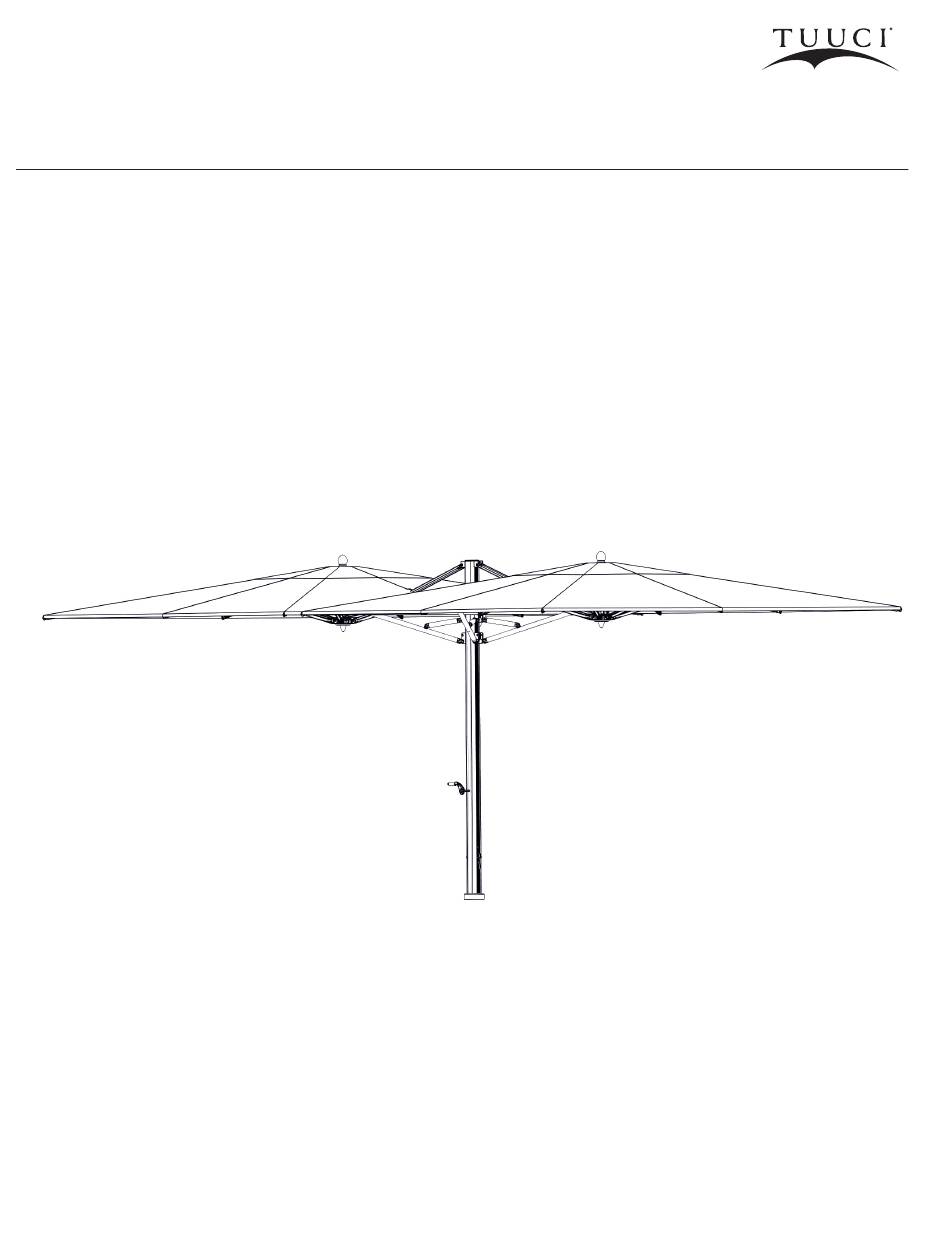

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S OCEAN MASTER MAX DUAL CANTILEVER EASYDRIVE™ CRANK To protect your product, please read the operating instructions before opening the parasol.
- Page 2 To rotate parasol: Pull pin to unlock cam handle, pull up and turn parasol to desired location. Lock cam lock handle down. CAM LOCK HANDLE CART HANDLE COVER SECURITY STEM TUUCI.COM INSA2005...
- Page 3 3/8' SCREW Step 7 Install canopy frame by using two hex keys (5.5mm) and screw two 3/8" screws and 3/8" bushing screws at the top pole connector and upper car. 3/8' BUSHING SCREW 3/8' SCREW UPPER LOWER CAR TUUCI.COM INSA2005...
- Page 4 TELESCOPE Step 9 Insert crank handle and open telescope by turning crank handle counterclockwise until it stops. The canopy and parasol will remain closed. Keep tension on the cable as you crank in a counterclockwise position. OPEN TELESCOPE TUUCI.COM INSA2005...
- Page 5 Step 14 Close parasol during wind conditions that exceed manufacturer's specifications. MAST Note: Ensure that ribs are not tangled. CABLE CONNECTOR TROLLEY CAR BRACKET SECURITY PIN CABLE CONNECTOR TOP POLE CLOSE OPEN LOWER POLE TUUCI.COM INSA2005...
