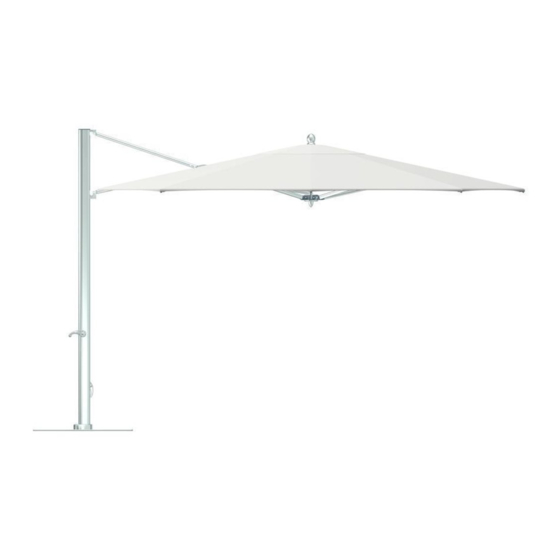

Tuuci MAX Single Cantilever Assembly & Operating Instructions

ASSEMBLY & OPERATING INSTRUCTIONS

MAX SINGLE CANTILEVER

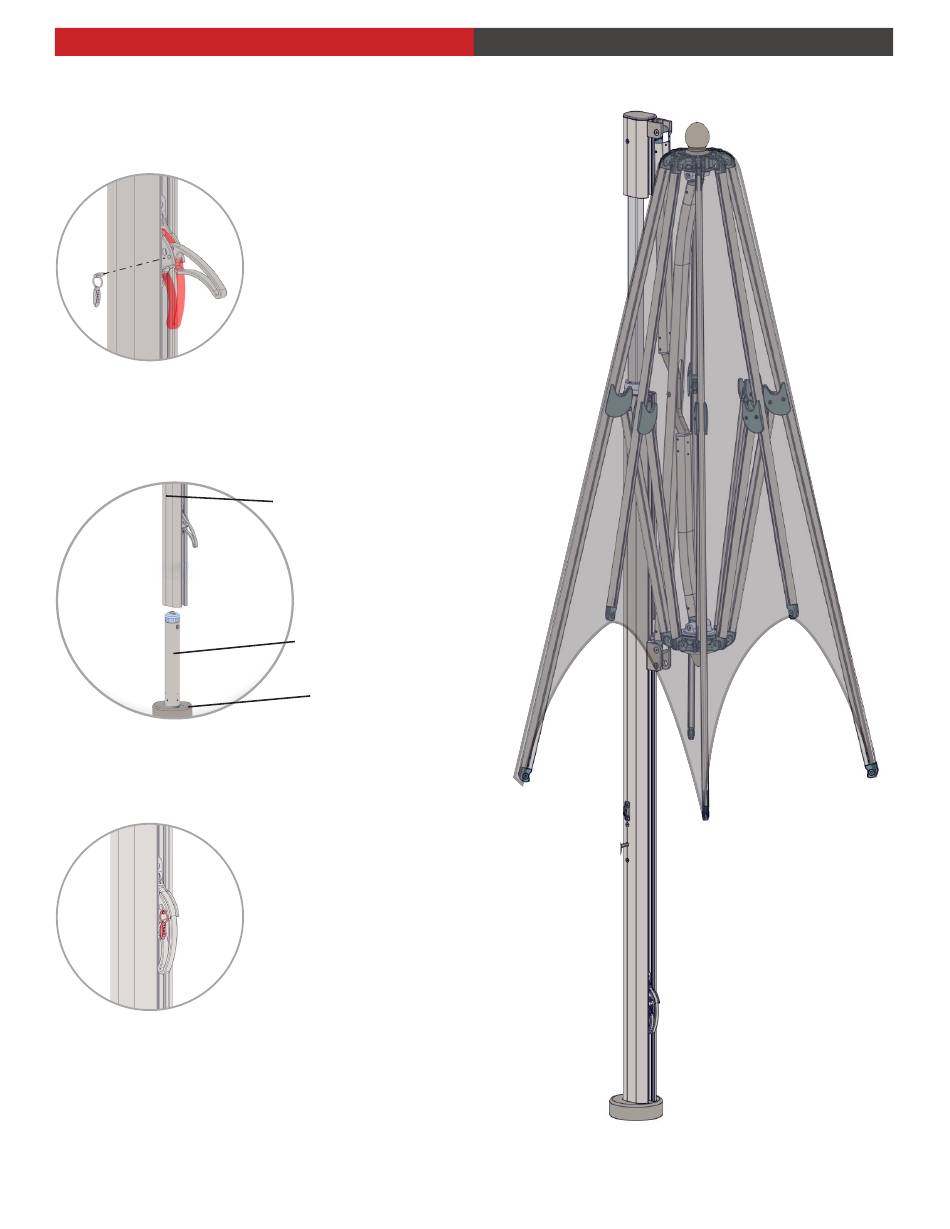

Step 1

Remove all packaging from inside and outside of the umbrella.

Step 2

Pull the pin to unlock the cam lock handle. Open the cam lock handle.

Step 3

Once you have leveled the stem using the base installation instructions,

slide the beauty cover and umbrella over the security stem as illustrated

below (security stem is included with umbrella).

mast

security stem

beauty cover

Step 4

Push cam lock handle down until it is locked into the

security stem. Insert the pin into the lock handle.

Step 5

Gently separate each rib individually from the center hub

approximately 10 inches. If the rib does not move easily,

do not force. Inspect the product for additional packaging.

INSA 2021

tuuci

Table of Contents

Need help?

Do you have a question about the MAX Single Cantilever and is the answer not in the manual?

Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MAX SINGLE CANTILEVER Step 1 Remove all packaging from inside and outside of the umbrella. Step 2 Pull the pin to unlock the cam lock handle. Open the cam lock handle. Step 3 Once you have leveled the stem using the base installation instructions, slide the beauty cover and umbrella over the security stem as illustrated below (security stem is included with umbrella).
Page 2 MAX SINGLE CANTILEVER EASY DRIVE CRANK SYSTEM Step 1 Connect the umbrella cable swedge eye to the cable bracket on top of the bottom trolley cart using the provided security pin (figure Note: If the cable does not have enough give to reach the bracket (see step 2), pull the black rope until the cable swedge eye reaches the cable bracket on top of the bottom trolley.
Page 3 MAX SINGLE CANTILEVER AMBIA LED Light LIGHTING SPECIFICATIONS WITH LED LIGHT (IF APPLICABLE) Power Supply: Input Voltage 90 - 305 VAC Step 1 0.6A / 115 VAC Connect the electrical cord to the outlet. Input Current 0.3A / 230 VAC...
Page 4 In cases where the parasol is taken down and stored during the winter season, the Sunbrella® canopy should be cleaned, allowed to air dry, and stored in a dry, well ventilated area. A TUUCI Protective Cover should be used when umbrella is not in use.
