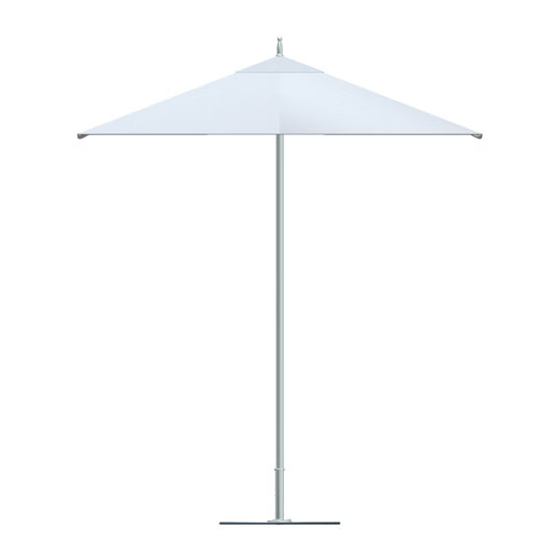

Tuuci MAX Center Post Assembly & Operating Instructions

Download this manual

ASSEMBLY & OPERATING INSTRUCTIONS

Step 1

Remove all packaging from the inside and outside of the umbrella.

Step 2

Remove pin and lift up cam lock handle.

cam lock handle

Step 4

Mount umbrella onto security

stem, push down cam lock

handle and insert pin.

tuuci

beauty cover

applies to:

square

MAX Center Post

Step 3

Remove security stem from inside

umbrella and mount to your base

(instructions included with base).

Step 5

Separate each rib from center

pole approximately 10 inches.

security stem

octagon

rectangle

INSA1007

Need help?

Do you have a question about the MAX Center Post and is the answer not in the manual?

Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MAX Center Post Step 1 Remove all packaging from the inside and outside of the umbrella. Step 2 Remove pin and lift up cam lock handle. Step 3 Remove security stem from inside umbrella and mount to your base (instructions included with base).
Page 2 ASSEMBLY & OPERATING INSTRUCTIONS MAX Center Post CRANK LIFT SYSTEM EASY DRIVE SYSTEM Step 6 Step 5 Turn crank handle clockwise to open umbrella. Insert crank handle & unlock Stop turning handle once lower pole makes con- locking gear button.
Page 3 • Prior to opening, ensure that the shade product is properly secured to an adequate shade anchor system. • When opening a TUUCI parasol, separate each rib 10 inches from the center post before raising the hub. Do not force hub if it does not rise easily.
Page 4: Warranty
If any TUUCI applied finish flakes, bubbles, peels, the safe, sensible and reasonable operation of our shade structures within or loses color within one (1) year from the date of purchase, TUUCI will re- the recommended deployment guidelines. Please contact TUUCI directly if place or repair any paint finish damage at its own discretion.
Page 5: Care And Maintenance
In cases where the parasol is taken down and stored during the winter season, the Sunbrella® canopy should be cleaned, allowed to air dry, and stored in a dry, well ventilated area. A TUUCI Protective Cover should be used when umbrella is not in use.
