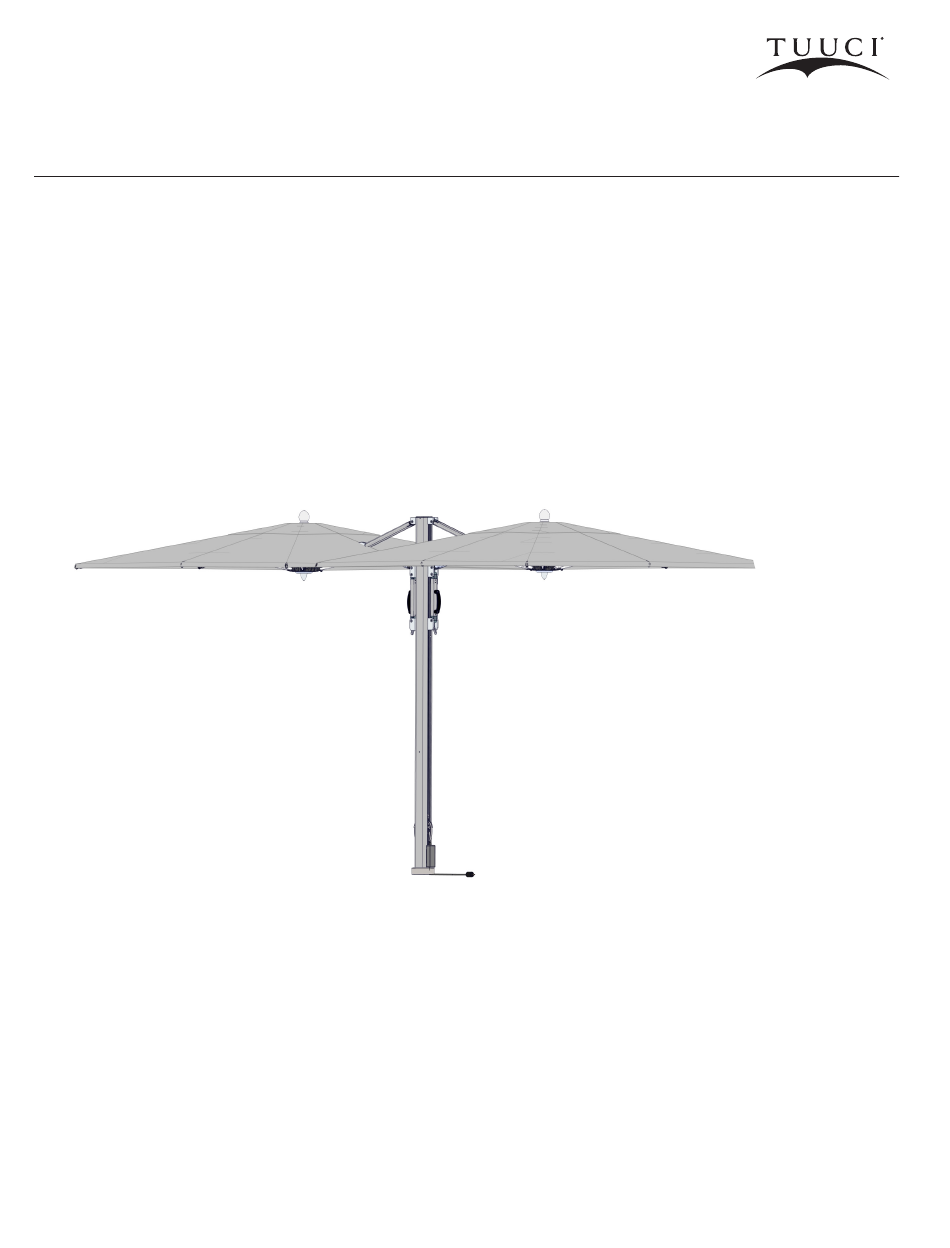

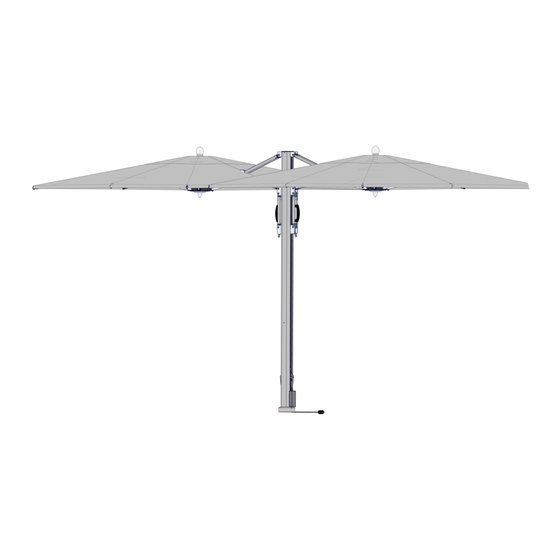

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S OCEAN MASTER MAX DUAL CANTILEVER AMBIA™ LED LIGHT | AUTOMATION To protect your product, please read the operating instructions before opening the parasol.
- Page 2 INSTRUCTIONS, SLIDE THE BEAUTY COVER AND PARASOL OVER THE SECURITY STEM (SECURITY STEM IS INCLUDED WITH PARASOL). NOTE: ENSURE THAT CABLES ARE NOT PINCHED WHEN INSERTING THE PARASOL OVER THE SECURITY STEM AND WHEN INSTALLING THE BEAUTY COVER. PARASOL BEAUTY COVER SECURITY STEM TUUCI.COM 1007287...
- Page 3 STEP 6 INSTALL 2ND CANOPY FRAME BY USING THE 3/8” BUSHINGS AND SCREWS. NOTE: ADD A DROP OF PROVIDED LOCTITE TO THE END OF THE SCREW THREADS. REMOVE ROPE LOWER TROLLEY CART FOR PARASOLS WITH HIGH WIND STABILIZERS TUUCI.COM 1007287...
- Page 4 TROLLEY CART ELECTRICAL SLEEVE CONNECTION STEP 8 MOUNT ELECTRICAL SLEEVE TO SCISSOR BRACKET WITH 3/8” BUSHING AND 3/8”-16 FLAT HEAD SCREW. NOTE: ADD A DROP OF PROVIDED LOCTITE TO THE END OF THE SCREW THREADS. SCISSOR BRACKET ELECTRICAL SLEEVE TUUCI.COM 1007287...
- Page 5 C A N T I L E V E R AMBIA™ LED LIGHT | AUTOMATION STEP 9 CONNECT CABLE FROM ELECTRICAL SLEEVE TO SCISSOR CABLE. STEP 10 PUSH IN CABLE AND CONNECTOR THROUGH SCISSOR GROMMET HOLE. PUSH CONNECTOR SCISSOR GROMMET HOLE INSIDE SCISSOR ARM TUUCI.COM 1007287...
- Page 6 C A N T I L E V E R AMBIA™ LED LIGHT | AUTOMATION STEP 11 PLUG IN POWER CORD OF YOUR AUTOMATED PARASOL INTO 220V RECEPTACLES. THE TUUCI LOGO ONCONTROL PANEL WILL BE BACKLIT IN WHITE, WHEN THE PARASOL IS PROPERLY PLUGGED INTO THE POWER SOURCE.
- Page 7 PRESS THE HEATER ICON BUTTON ON THE CONTROL PANEL TO TURN-ON THE TWO HEATERS UNDER EACH CANOPY. THE COLOR WILL CHANGE FROM WHITE TO BLUE, SIGNALING THAT THE HEATERS ARE ON. POWER ON OPEN CLOSE LIGHT BULB HEATER TUUCI.COM 1007287...
- Page 8 CLOSE THE PARASOL WITH TIE-BACK WHEN NOT IN USE. NOTE: CLOSE PARASOL DURING CONSISTENT WIND CONDITIONS THAT EXCEED 25MPH. UMBRELLA SHOULD NOT BE CLOSED ENTIRELY UNTIL ALL HEATERS HAVE COOLED DOWN. ALLOW AT LEAST 10 MIN. FOR HEATERS TO COOL. TUUCI.COM 1007287...
- Page 9 CLOSE, AMBIA LED LIGHTS AND HEATERS) ARE INACTIVE. THE TUUCI LOGO IS NOT BACKLIT. WHEN THE PARASOL IS LEVEL AND NO LONGER TIPPED OR TILTED, IT WILL RETURN TO A POWERED DOWN STATE WITH THE TUUCI LOGO BACKLIT IN WHITE AND ALL OTHER FUNCTIONS OFF. PRESS THE POWER BUTTON TO TURN-ON THE PARASOL. THEN, TURN-ON THE VARIOUS FUNCTIONS.
- Page 10 12. CUSTOMER’S ELECTRICAL POWER SOURCE CONNECTIONS IF ANY, ARE TO BE INSTALLED / CONNECTED BY A CERTIFIED ELECTRICIAN. CHECK LOCAL CODES FOR GUIDANCE. 13. WHEN CLOSING / OPENING UMBRELLA KEEP HANDS AND FACE CLEAR OF ALL PINCH POINTS, OR PROTRUDING UMBRELLA COMPONENTS. FOR FREQUENTLY ASKED QUESTIONS VISIT TUUCI.COM/AUTOMATIONCL TUUCI.COM 1007287...
