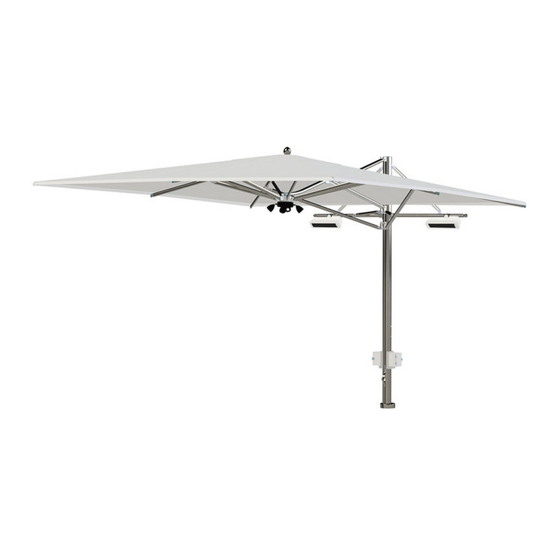

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S OCEAN MASTER MAX CANTILEVER AMBIA™ LED LIGHTS | HEATERS TO PROTECT YOUR PRODUCT, PLEASE READ THE OPERATING INSTRUCTIONS BEFORE OPENING THE PARASOL. TUUCI.COM 1007310...
- Page 2 NOTE: CERTAIN MODELS MAY INCLUDE A TEMPORARY SHIPPING BRACKET THAT NEED TO BE REMOVED. REMOVE HEATER BRACKETS STEP 2 REMOVE HEX SCREW FROM ELBOW FITTING. elbow fitting STEP 3 REMOVE FLAT HEAD HEX SCREW FROM HEATER ARM AND BRACKET. flat head screw bracket heater arm TUUCI.COM 1007310...
- Page 3 NOTE: ADD A DROP OF PROVIDED LOCTITE TO THE END OF THE SCREW THREADS. flat head screw add loctite heater arm STEP 5 REPEAT STEP 1 THROUGH 4 FOR ALL HEATER ARMS. STEP 6 PULL PIN FROM CAM LOCK AND LIFT THE HANDLE TO UNLOCK UMBRELLA. TUUCI.COM 1007310...
- Page 4 STEP 8 LOCK UMBRELLA DOWN BY PUSHING THE CAM LOCK HANDLE IN THE DOWN POSITION AND REINSERT THE PIN. MOUNT BEAUTY COVER OVER CONTROL BOX. CAM LOCK HANDLE cam lock handle CONTROL BOX BEAUTY COVER TUUCI.COM 1007310...
- Page 5 AMBIA™ LED LIGHTS | HEATER STEP 9 PLUG IN YOUR UMBRELLA INTO A 220V RECEPTACLE. THE TUUCI LOGO ON THE USER CONTROL PANEL WILL BE BACKLIT IN WHITE, WHEN THE UMBRELLA IS PROPERLY PLUGGED INTO THE POWER SOURCE. STEP 10 PRESS THE POWER BUTTON TO TURN ON THE UMBRELLA.
- Page 6 TO BLUE AFTER PRESSING THE BUTTON, SIGNALING THAT THE AMBIA™ LED LIGHT IS ON. TURNING THE HEATERS ON PRESS THE HEATER ICON BUTTON TO TURN-ON THE HEATERS. THE COLOR WILL CHANGE FROM WHITE TO BLUE, SIGNALING THAT BOTH HEATERS ARE ON. heater Light bulb TUUCI.COM 1007310...
- Page 7 THE POWER BUTTON WILL BE FLASHING IN YELLOW WHEN THE UMBRELLA IS NOT LEVEL. ALL FUNCTIONS (AMBIA LED AMBIA™ LED LIGHT AND HEATERS) ARE INACTIVE. THE TUUCI LOGO IS NOT BACKLIT. WHEN THE UMBRELLA IS LEVEL AND NO LONGER TIPPED OR TILTED, IT WILL RETURN TO A POWERED DOWN STATE WITH THE TUUCI LOGO BACKLIT IN WHITE AND ALL OTHER FUNCTIONS OFF.
- Page 8 12. CUSTOMER’S ELECTRICAL POWER SOURCE CONNECTIONS IF ANY, ARE TO BE INSTALLED / CONNECTED BY A CERTIFIED ELECTRICIAN. CHECK LOCAL CODES FOR GUIDANCE. 13. WHEN CLOSING / OPENING UMBRELLA KEEP HANDS AND FACE CLEAR OF ALL PINCH POINTS, OR PROTRUDING UMBRELLA COMPONENTS. FOR FREQUENTLY ASKED QUESTIONS VISIT TUUCI.COM/AUTOMATIONCL TUUCI.COM 1007310...
