Tuuci OCEAN MASTER M1 CANTILEVER Quick Start Manual

OCEAN MASTER M1 CANTILEVER

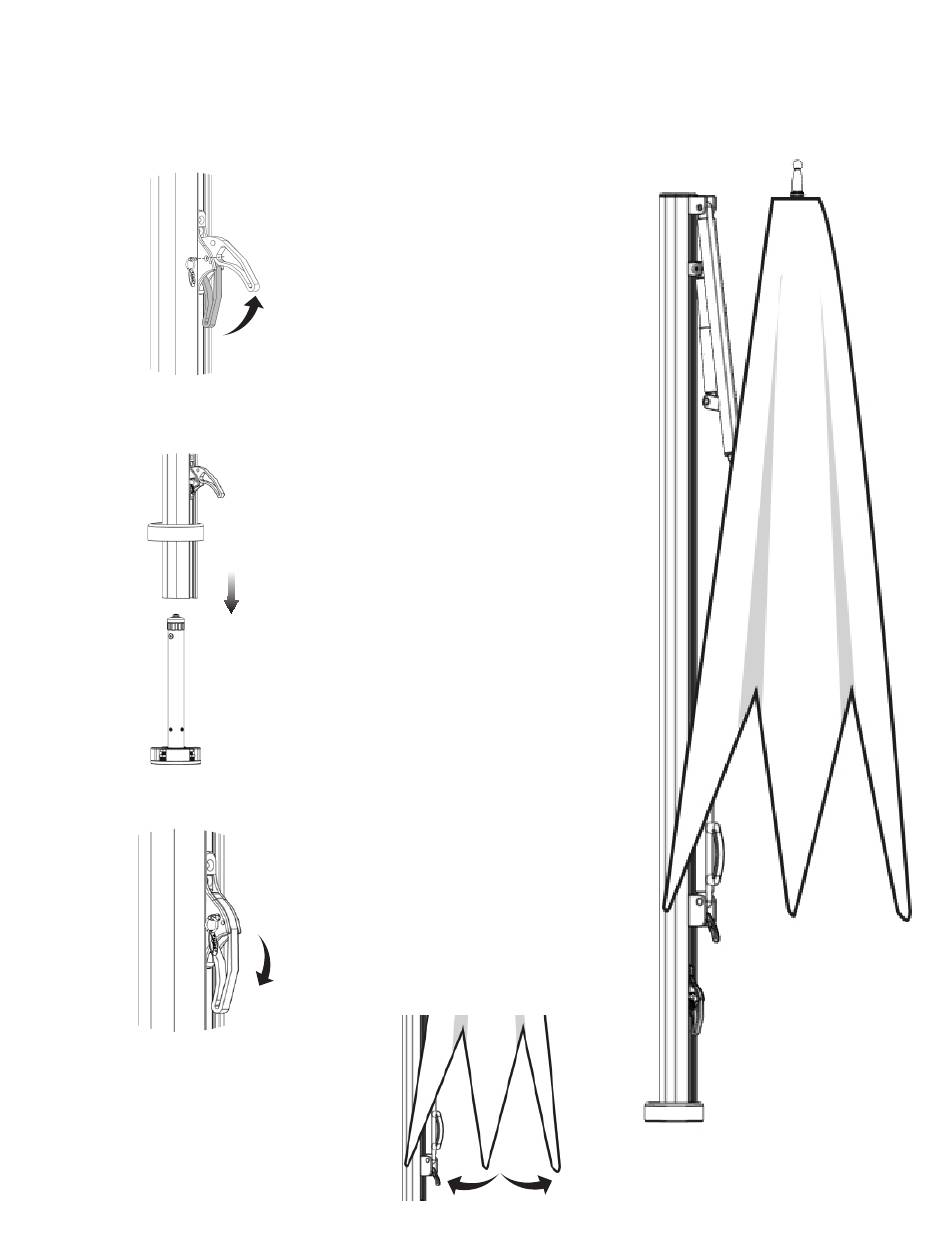

Step 1

Remove all packaging from in and around the umbrella.

Step 2

Pull pin from cam lock and lift the handle to unlock umbrella.

Step 3

Once you have leveled the stem using the base installation instructions, slide the beauty

cover and umbrella over the security stem (security stem is included with umbrella).

Step 4

Lock umbrella down by pushing the cam lock handle in the down position and reinsert the pin.

Step 5

Gently separate each rib individually from center hub approx.

10 inches. If rib does not move easily do not force,

inspect product for additional packaging.

1 | tuuci

1008357

Table of Contents

Need help?

Do you have a question about the OCEAN MASTER M1 CANTILEVER and is the answer not in the manual?

Page 1 OCEAN MASTER M1 CANTILEVER Step 1 Remove all packaging from in and around the umbrella. Step 2 Pull pin from cam lock and lift the handle to unlock umbrella. Step 3 Once you have leveled the stem using the base installation instructions, slide the beauty cover and umbrella over the security stem (security stem is included with umbrella).
Page 2 OCEAN MASTER M1 CANTILEVER HOW TO OPEN THE CANOPY A. Unlock cart lock by pushing up. B. Slide cart handle up until it snaps into the locking position. C. Lock canopy in the open position by pushing down on the cart lock.
