Tuuci OCEAN MASTER MAX DUAL CANTILEVER Installation Instructions Manual
Ambia led light, automation
Hide thumbs
Also See for OCEAN MASTER MAX DUAL CANTILEVER:
- Operating instructions (3 pages) ,
- Installation instructions manual (10 pages) ,
- Installation instructions (5 pages)
Related Manuals for Tuuci OCEAN MASTER MAX DUAL CANTILEVER
Summary of Contents for Tuuci OCEAN MASTER MAX DUAL CANTILEVER

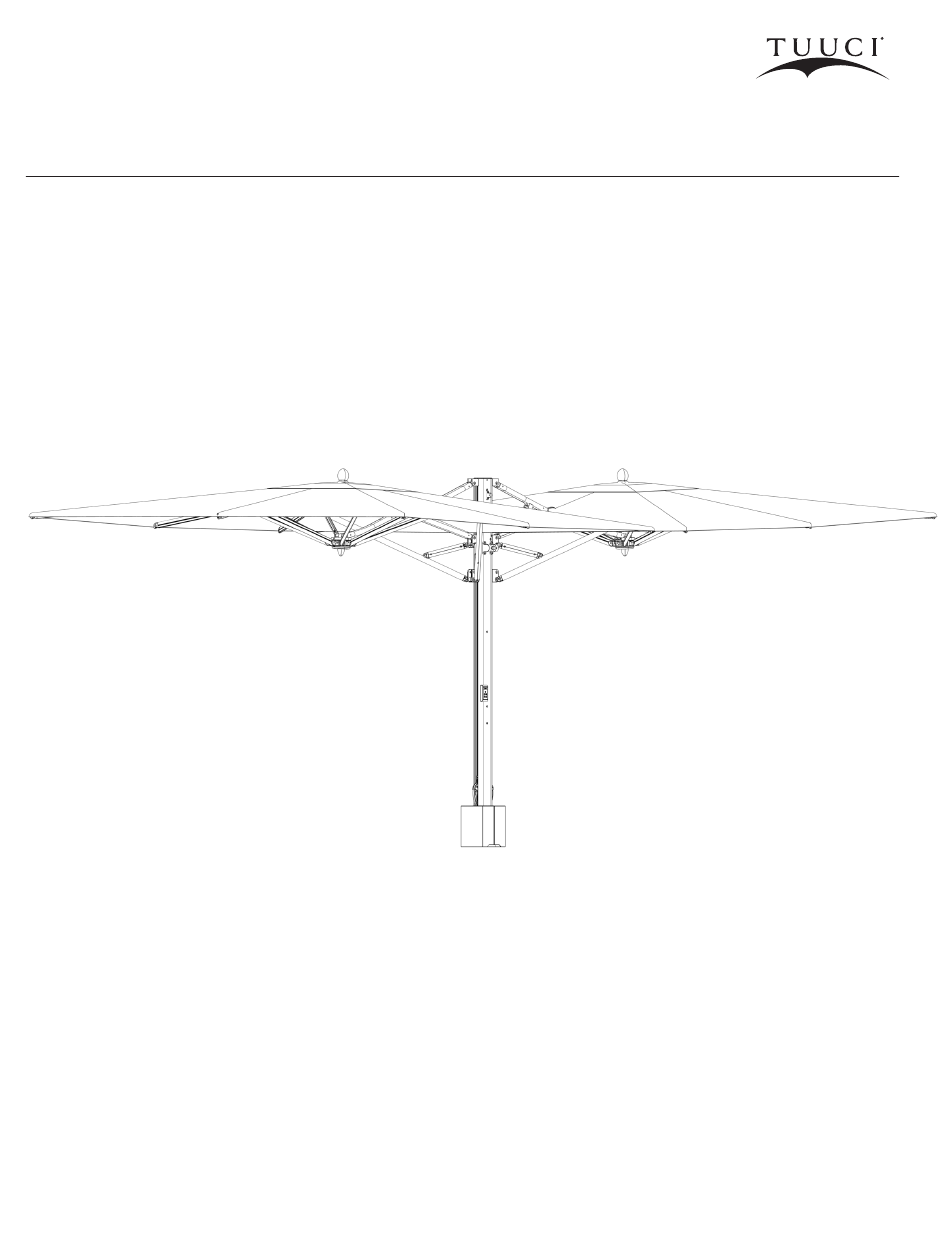

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S OCEAN MASTER MAX DUAL CANTILEVER AMBIA™ LED LIGHT | AUTOMATION To protect your product, please read the operating instructions before opening the parasol.
- Page 2 Step 4 Lock parasol down by pushing the cam lock handles in the down position and lock with pins. Mount beauty covers over control boxes. cam lock handles cam lock handles electrical beauty cover TUUCI.COM 1007287-1010024...
- Page 3 Note: Add a drop of provided loctite to the end of the screw threads. upper trolley remove cart rope short arms long arms lower lower trolley trolley cart cart for parasols with high wind stabilizers TUUCI.COM 1007287-1010024...
- Page 4 Add a drop of provided loctite to the end of the screw threads. electrical sleeve Step 9 Step 10 Connect cable from electrical sleeve to scissor cable. Push in cable and connector through scissor grommet hole. scissor grommet hole push connector inside scissor arm TUUCI.COM 1007287-1010024...
- Page 5 AMBIA™ LED LIGHT | AUTOMATION Step 11 Plug in your automated parasol into a 110V receptacle. The Tuuci logo on the user control panel will be backlit in white, when the parasol is properly plugged into the power source. Step 12 Press the Power button to turn on the parasol.
- Page 6 When the parasol canopies are fully closed, the close parasol icon color will change to white. Step 4 Close the parasol with tie-back when not in use. Note: Close parasol during consistent wind conditions that exceed 25mph. TUUCI.COM 1007287-1010024...
- Page 7 The Power button will be flashing in yellow when the parasol is not level. All functions (open, close, Ambia LED light) are inactive. The TUUCI logo is not backlit. When the parasol is level and no longer tipped or tilted, it will return to a powered down state with the TUUCI logo backlit in white and all other functions OFF.
