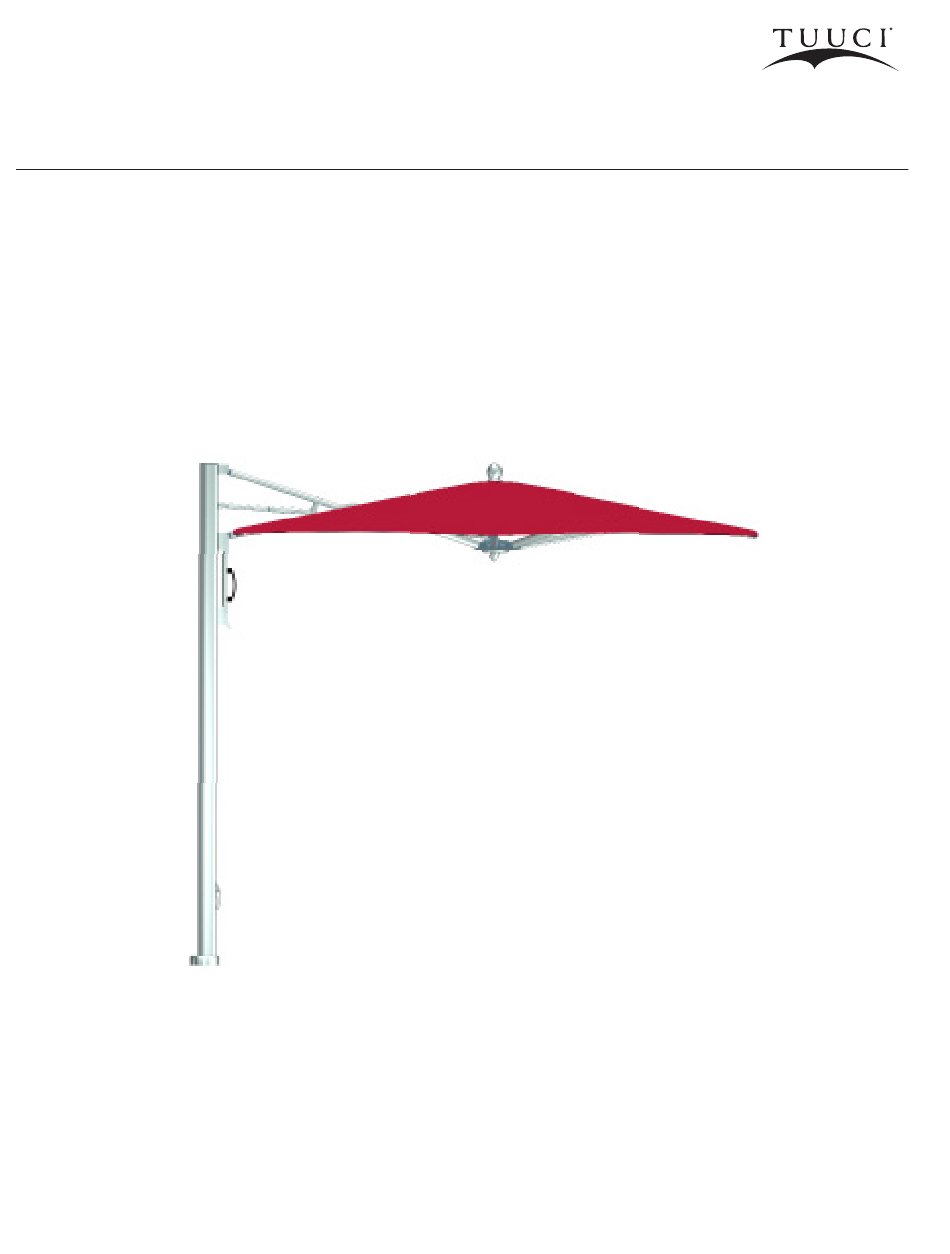

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S MAX CANTILEVER AUTO-LIFT ASSIST PISTON To protect your product, please read the operating instructions before opening the parasol.
- Page 2 Step 3 After the security stem is installed on the anchor (see anchor installation instructions), slide the beauty cover over the mast and insert the mast over the security stem. mast beauty cover security stem TUUCI.COM INSA2010...
- Page 3 Gently separate each individual rib from the center hub ap- proximately 10 inches. If the rib does not move easily, do not force. Inspect the product for additional packaging. Step 6 Push cart handle up until it snaps into the locking position. TUUCI.COM INSA2010...
- Page 4 Tap finial once to power on-off, or touch and hold for light dimming control. finial LIGHTING SPECIFICATIONS Power Supply: Input Voltage 90 - 305VAC 0.6A / 115VAC Input Current 0.3A / 230VAC Output Voltage 12 VDC Output Power 40 Watts Unit is supplied with a 12ft power cord and plug. TUUCI.COM INSA2010...
- Page 5 • Prior to opening, ensure that the shade product is properly secured to an adequate shade anchor system. • When opening a TUUCI parasol, separate each rib 10 inches from the center post, before raising the hub. Do not force hub if it does not rise easily.
