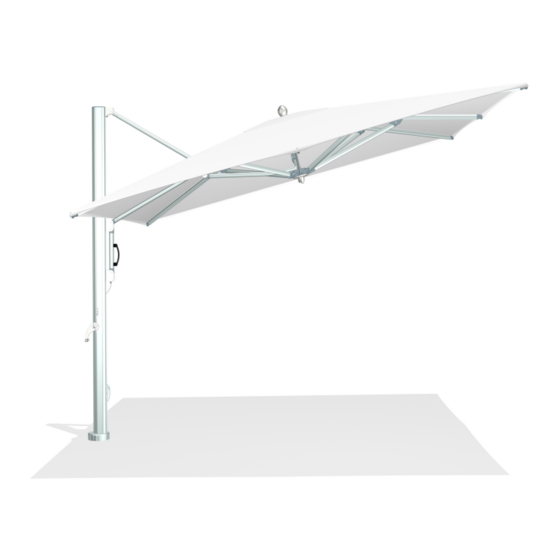

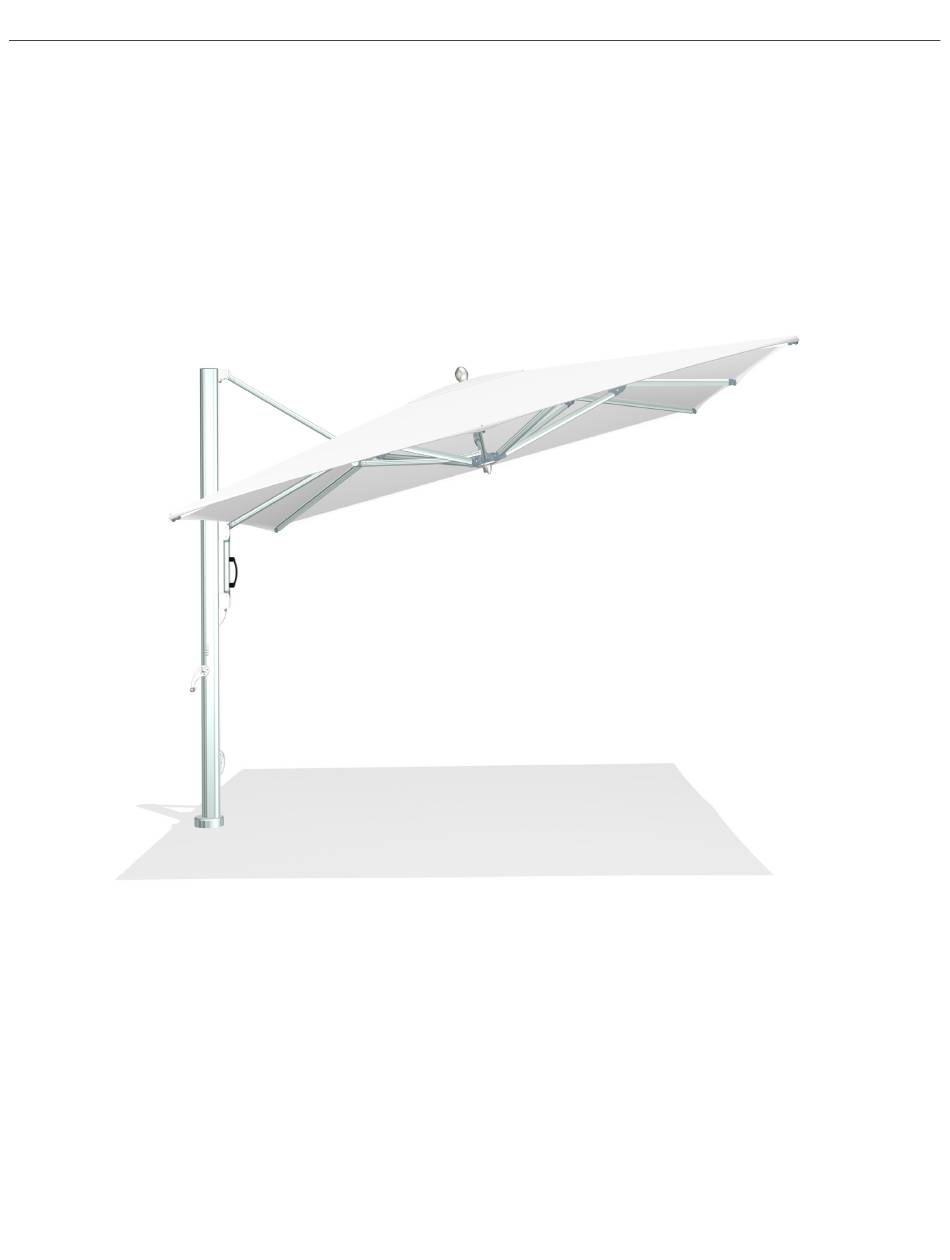

- Page 1 TUUCI MAX cantilever with tilt assembly & operating instructions applies to: ocean master MAX cantilever & plantation MAX cantilever...
- Page 2 Step 4 Push cam lock handle until it engages in the proper gear slot then lock handle with pin . applies to: square octagon rectangle INSA2000 tuuci...
- Page 3 Step 8 Insert crank handle and rotate clockwise. Step 9 Once umbrella is fully deployed, engage gear lock and remove crank handle. Make sure to store crank handle in a safe place. INSA2000 tuuci...
- Page 4 Step 10 Make sure cart lever is unlocked. Step 11 The angle of the canopy can be adjusted to a desired position by moving the cart handle up or down, lock the position by setting the cart lever down. INSA2000 tuuci...
- Page 5 Collapse the umbrella frame in full against the mast, then lock the closed position by setting the cart lever down. Step 17 Tie back umbrella canopy when not in use. Note: close umbrella during wind conditions that exceed manufacturer’s specifications. INSA2000 tuuci...
- Page 6 ASSEMBLY & OPERATING INSTRUCTIONS MAX Cantilever IF APPLICABLE - WITH LED LIGHT Step 1 Connect the electrical cord to the outlet. Step 2 Tap finial once to power on-off, or touch and hold for light dimming control. finial Unit is supplied with a 12ft power cord and plug. LIGHTING SPECIFICATIONS Power Supply: Input Voltage...
- Page 7 • Prior to opening, ensure that the shade product is properly secured to an adequate shade anchor system. • When opening a TUUCI parasol, separate each rib 10 inches from the center post, before raising the hub. Do not force hub if it does not rise easily.
