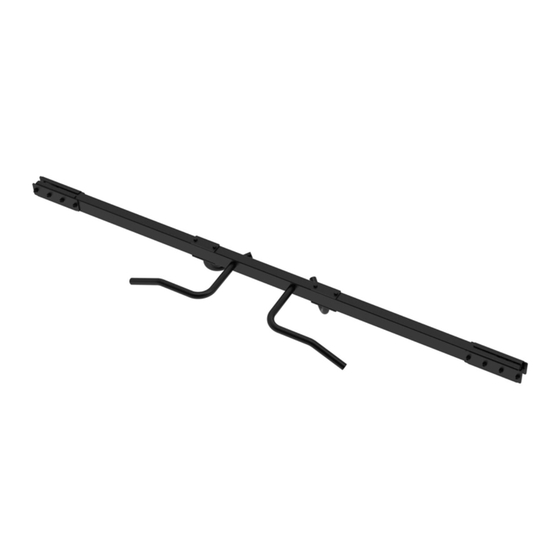

- Page 1 IF9327OPT CABLE CROSSOVER-TRADITIONAL OWNER'S MANUAL CAUTION! Read all precautions and instructions in this manual before using this equipment.
-
Page 2: Table Of Contents
Table Of Contents CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions----------------------------------------------------------- 3 Instructions-------------------------------------------------------------------------------- 5 Exploded View and Parts List------------------------------------------------------------ 6 Measurement Guide---------------------------------------------------------------------- 9 Assembly Instructions------------------------------------------------------------------ 10 Assembly--------------------------------------------------------------------------------- 11 Maintenance Schedule------------------------------------------------------------------ 15 General Maintenance Information----------------------------------------------------- 16 Weight Training Tips-------------------------------------------------------------------- 17... -
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: 1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit. 2. - Page 4 Important Safety Instructions Personal Safety During Assembly Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. Assemble and operate the equipment on a solid, level surface.
-
Page 5: Instructions
Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. -
Page 6: Exploded View And Parts List

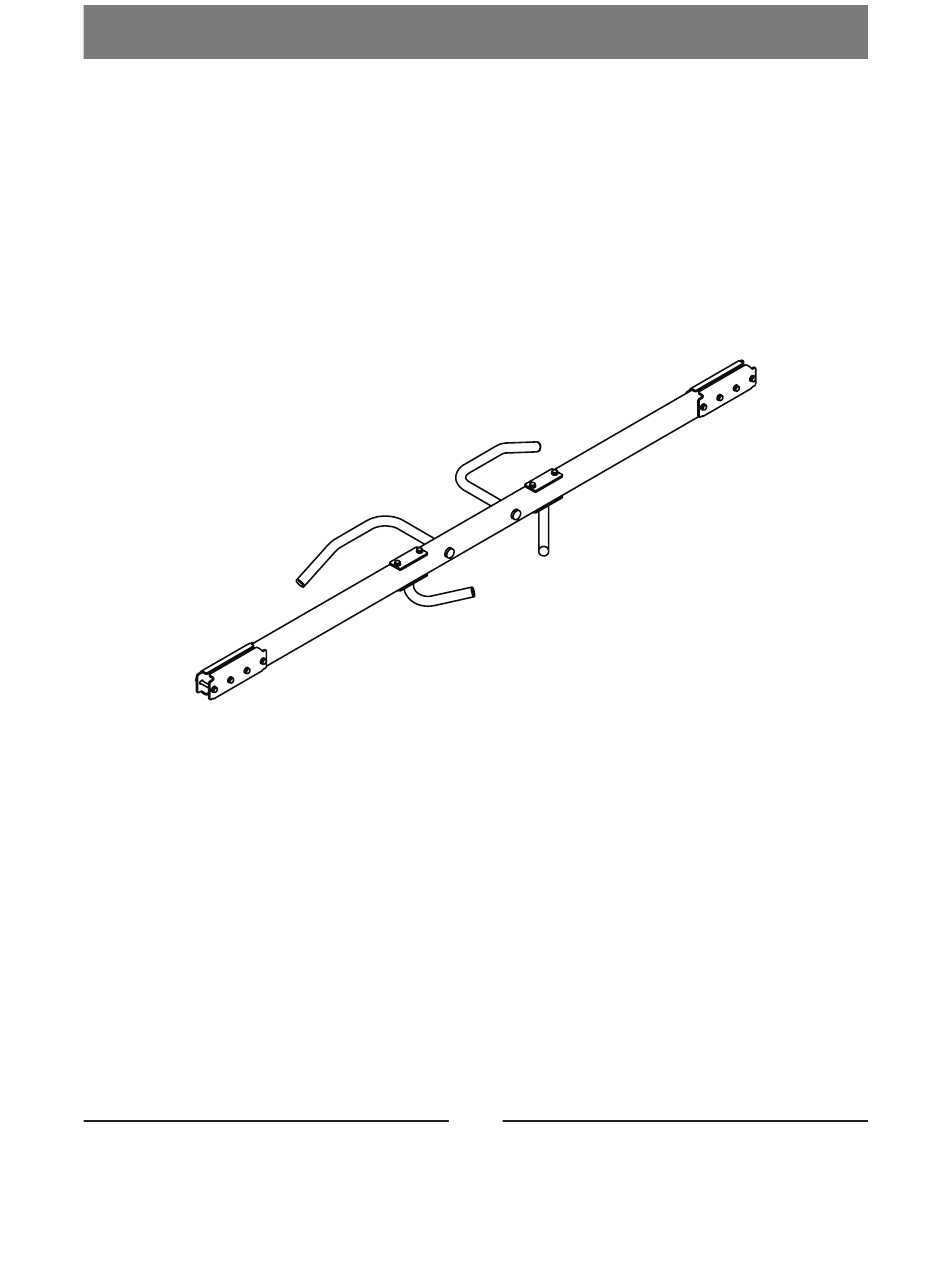

Exploded View and Parts List Overall ItemNo. Part No. Description Grade No. IF9327OPT01ASSY Main Frame ASSY IF9327OPT02ASSY Right Handle ASSY IF9327OPT03ASSY Left Handle ASSY IF9327OPT0400 U Plate GB5780M10*105DS20 Hex Head Bolt M10*105 GB5780M10*80DS20 Hex Head Bolt M10*80 GB9510DS2 Flat Washer φ11*φ20*2 NM10DS2 Nylon Lock Nut M10... - Page 7 Exploded View and Parts List Main Frame ASSY Part No. Description ItemNo. Grade No. IF9327OPT0100 Main Frame Plug □50.8*76.2 KPSFID2800 BNH0573 Plug φ32...
- Page 8 Exploded View and Parts List Right Handle ASSY Left Handle ASSY Part No. Description ItemNo. Grade No. IF9327OPT0200 Right Handle BNH0573 Plug φ32 Part No. Description ItemNo. Grade No. IF9327OPT0300 Left Handle BNH0573 Plug φ32...
-
Page 9: Measurement Guide
Measurement Guide BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw FHCS = Flat Head Cap Screw HHB = Hex Head Bolt CRPHS = Cross Recessed Pan Head Screw Millimeters Inches Diameter of bolt M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8") (mm/inch) -
Page 10: Assembly Instructions
Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. -
Page 11: Assembly
Assembly STEP 1 Attach the Right Handle ASSY (#2) and the Left Handle ASSY (#3) to the Main Frame ASSY (#1) using: four M10*105 HHB (#5) eight Φ11*Φ20*2 Flat Washer (#7) four M10 Nylon lock Nuts (#8) Note: Wrench Tighten Bolts and Nylon Lock Nuts. - Page 12 Assembly STEP 2-1 Cable Crossover: IF9325 + IF9327OPT + IF9325 Note: Before this assembly, you should remove eight Plug Φ11 form two IF9325. Attach the Main Frame ASSY (#1) to IF9325 & IF9325 using: four U Plate (#4) eight M10*80 HHB (#6) sixteen Φ11*Φ20*2 Flat Washer (#7)
- Page 13 Assembly STEP 2-2 5 Stack Multi-Station: IF9325 + IF9327OPT + IF9327 Note: Before this assembly, you should remove eight Plug Φ11 form IF9325 and IF9327. Attach the Main Frame ASSY (#1) to IF9325 & IF9327 using: four U Plate (#4) eight M10*80 HHB (#6) sixteen Φ11*Φ20*2 Flat Washer (#7)
- Page 14 Assembly STEP 2-3 8 Stack Multi-Station: IF9327 + IF9327OPT + IF9327 Note: Before this assembly, you should remove eight Plug Φ11 form two IF9327. Attach the Main Frame ASSY (#1) to IF9327& IF9327 using: four U Plate (#4) eight M10*80 HHB (#6) sixteen Φ11*Φ20*2 Flat Washer (#7)
-
Page 15: Maintenance Schedule
Maintenance Schedule COMMERCIAL HOME LATEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3 MONTHS Accessory Bars, and Handles Inspect;... -
Page 16: General Maintenance Information
General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: * Check all pieces for signs of visible wear or damage. * Check springs in snap hooks and pull-pins for proper tension and alignment. * If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: * To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout. -
Page 17: Weight Training Tips
Weight Training Tips Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training.
