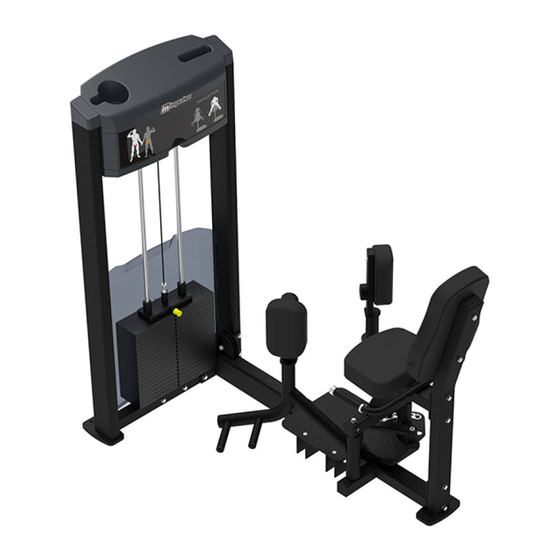

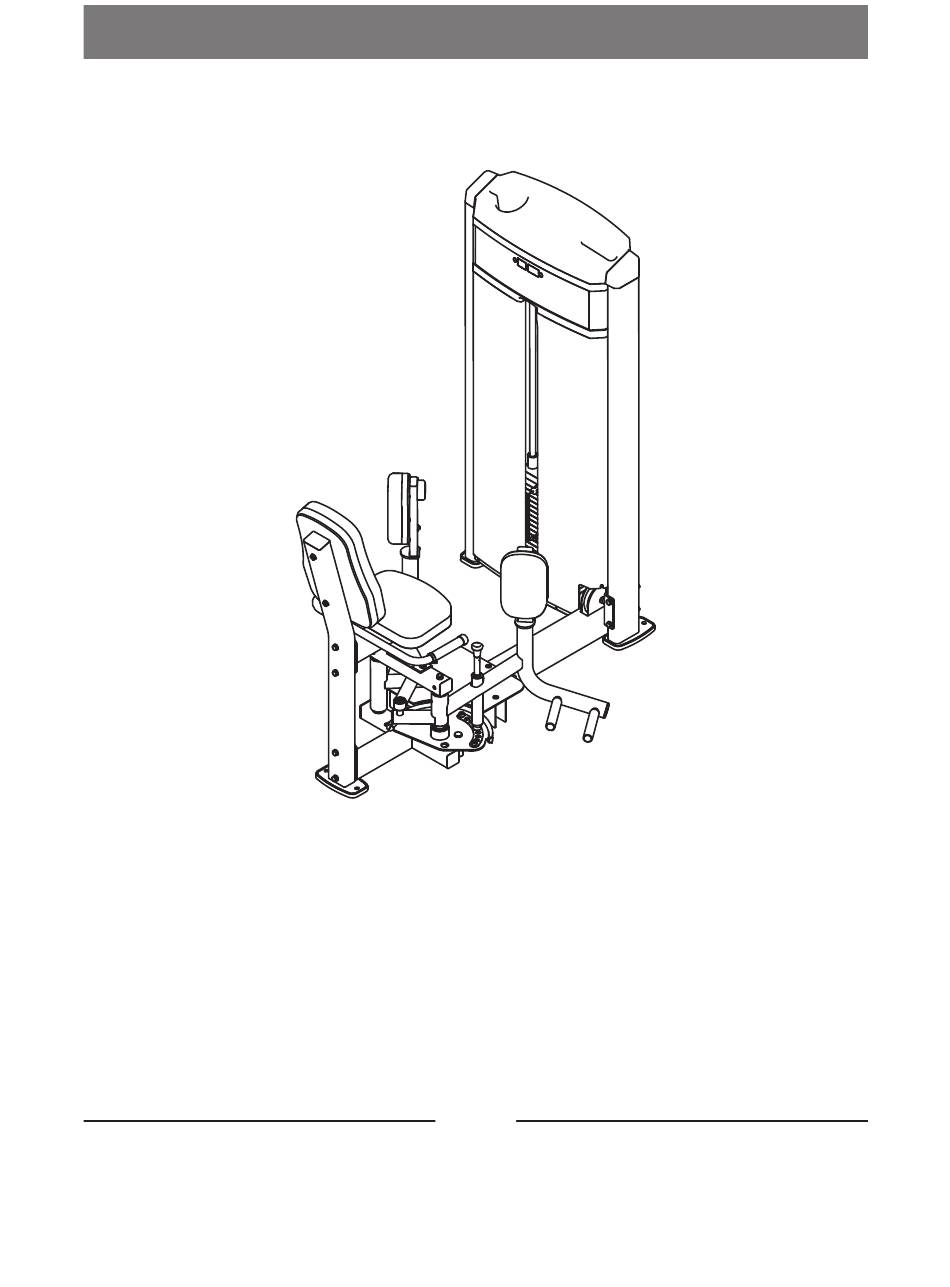

IF9336
ADDUCTOR
OWNER'S MANUAL
21N Rev B
CAUTION! Read all precautions and instructions in this manual before
using this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADDUCTOR IF9336 and is the answer not in the manual?

Questions and answers

Related Manuals for Impulse ADDUCTOR IF9336

Summary of Contents for Impulse ADDUCTOR IF9336

  • Page 1 IF9336 ADDUCTOR OWNER'S MANUAL 21N Rev B CAUTION! Read all precautions and instructions in this manual before using this equipment.

  • Page 2: Table Of Contents

    Table Of Contents CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions----------------------------------------------------------- 3 Instructions-------------------------------------------------------------------------------- 5 Exploded View and Parts List------------------------------------------------------------ 6 Measurement Guide--------------------------------------------------------------------- 16 Assembly Instructions------------------------------------------------------------------ 17 Assembly--------------------------------------------------------------------------------- 18 Adjust Instructions and Exercise Instructions---------------------------------------- 30 Maintenance Schedule------------------------------------------------------------------ 31 General Maintenance Information----------------------------------------------------- 32 Weight Training Tips-------------------------------------------------------------------- 33...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: 1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit. 2.
  • Page 4 Important Safety Instructions Personal Safety During Assembly Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. Assemble and operate the equipment on a solid, level surface.

  • Page 5: Instructions

    Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists.

  • Page 6: Exploded View And Parts List

    Exploded View and Parts List Overall ItemNo. G rade No.Part No. Description IF933501ASSY Weight Stack Frame ASSY IF933502ASSY Floorstand ASSY IF933503ASSY Seat Pad Frame ASSY IF93350400 Bottom bracket Frame IF933605ASSY Right Leg Frame ASSY IF933606ASSY Left Leg Frame ASSY IF933607ASSY Wheel Frame-B ASSY IF933508ASSY Connect Frame ASSY...
  • Page 7 Exploded View and Parts List Overall ItemNo. G rade No.Part No. Description GB5780M10*50DS20 Hex Head Bolt M10*50 GB818M6*20*20N19 Cross Recessed Pan Head Screw M6*20 GB818M6*10N19 Cross Recessed Pan Head Screw M6*10 GB9510DS2 Flat Washer Φ11*Φ20*2 NM10DS2 Nylon Lock Nut M10 GB5780M10*130DS20 Hex Head Bolt M10*130 GB9512DS2...
  • Page 8 Exploded View and Parts List Full Shroud Overall...
  • Page 9 Exploded View and Parts List Half Rear Shroud Overall...
  • Page 10 Exploded View and Parts List Weight Stack Frame ASSY Floorstand ASSY Part No. Description ItemNo. Grade No. IF9335B0100 Weight Stack Frame BS81223100 Foot Plate GB17880.5M6*16.5DS17 Rivet Nut M6 AC32705800 U-nut M6 ItemNo. Grade No. Part No. Description IF93350200 Wheel Frame BS81223100 Foot Plate Plug □50.8*76.2...
  • Page 11 Exploded View and Parts List Seat Pad Frame ASSY Left Leg Frame ASSY ItemNo. Grade No. Part No. Description IF93350300 Seat Pad Frame V39500 Aluminium Grip Ring Φ25.4 V39600 Aluminium Grip Cap Φ25.4 Plug □50.8*76.2 KPSFID2800 026-01PL0206-12 Grip STΦ30*Φ22*130 YZGB7710-32*3.2N19 Socket Set Screw 10-32*3.2 ItemNo.
  • Page 12 Exploded View and Parts List Right Leg Frame ASSY ItemNo. Grade No. Part No. Description IF93360500 Right Leg Frame IF933510ASSY Plug Pin ASSY Plug □50*25 CHL305WS0900 CWRVL0231900 Grip STΦ30*Φ22*145 HF405A0700 PlugΦ25.4 B10009900 PlugΦ50.8 GB2766005-2ZC3 Deep Groove Ball Bearing...
  • Page 13 Exploded View and Parts List Wheel Frame-B ASSY ItemNo. Grade No. Part No. Description IF93360700 Wheel Frame-B IF93352300 Lining Board IT80087000V1 Rubber Cap IN-S10111200 Rubber Sleeve Φ17*10.5 GB70M8*20DS20 Hexagon Socket Head Cap Screw M8*20 GB2766005-2ZC3 Deep Groove Ball Bearing GB958DS2 Flat WasherΦ9*Φ16*1.6 NM8DS2 Nylon Lock Nut M8...
  • Page 14 Exploded View and Parts List Connect Frame ASSY Seat Cushion Support Frame ASSY Bottom Bracket ASSY ItemNo. Grade No. Part No. Description IF93350800 Connect Frame GB2766002-2ZC3 Deep Groove Ball Bearing GB893.132FH12 Circlip For Hole ItemNo. Grade No. Part No. Description IF93350900 Seat Cushion Support Frame Plug □50...
  • Page 15 Exploded View and Parts List Front Bracket ASSY Right Bracket ASSY Left Bracket ASSY Part No. Description ItemNo. Grade No. 55.1 IF9301B2100 Front Bracket 52.2 ECU7P3500 Plastic Nut Part No. Description ItemNo. Grade No. 56.1 IF93SH010200 Right Bracket 56.2 ECU7P3500 Plastic Nut Part No.

  • Page 16: Measurement Guide

    Measurement Guide BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw FHCS = Flat Head Cap Screw HHB = Hex Head Bolt CRPHS = Cross Recessed Pan Head Screw Millimeters Inches Diameter of bolt M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8") (mm/inch)

  • Page 17: Assembly Instructions

    Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.

  • Page 18: Assembly

    Assembly STEP 1 1. Attach the Bottom bracket Frame (#4) to the Weight Stack Frame ASSY (#1) using: two M10*75 HHB (#34) two M10*135 HHB (#40) seven Φ11*Φ20*2 Flat Washer (#38) one Φ10 Spring Washer (#44) three M10 Nylon Lock Nut (#39) 2.
  • Page 19 Assembly STEP 2 1. Attach the Connect Frame ASSY (#8) to the Right Leg Frame ASSY (#5) and the Left Leg Frame ASSY (#6) using: two Flat Washer Φ13*Φ24*2.5 (#41) two Nylon Lock Nut M12 (#50) 2. Attach the Seat Cushion Support Frame ASSY (#9) to the Rollers (#11) using: two M10*25 HHB (#42) two Φ11*Φ20*2 Flat Washer (#38) two Φ10 Spring Washer (#44)
  • Page 20 Assembly STEP 3 TIPS: Firstly, attach one end of the Cable ASSY (#13) to the Wheel Frame-B ASSY (#7). Before attach the 4.5" Pulley to the frame, you should lead the other end of the Cable ASSY (#13) across it. 1.
  • Page 21 Assembly Full Shroud Select STEP 1. Attach one Front Bracket ASSY to the Weight Stack Frame ASSY, using: four Plastic Nut four ST4.2*16 Cross Disc Self Tapping Screw 2. Attach one Right Bracket ASSY and one Left Bracket ASSY to the Weight Stack Frame ASSY using: four Plastic Nut four ST4.2*16 Cross Disc Self Tapping Screw...
  • Page 22 Assembly STEP 4 Here is the assembly instruction for 160LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#23) two Weight Rubber Bumper (#30) fifteen Weight Plate 10LBS (#101) two weight stack space (#103) one Top Plate (#22) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#32) two Spring (#33) 2.
  • Page 23 Assembly STEP 4 Here is the assembly instruction for 200LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#23) two Weight Rubber Bumper (#30) nineteen Weight Plate 10LBS (#101) one Top Plate (#22) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#32) two Spring (#33) 2.
  • Page 24 Assembly STEP 4 Here is the assembly instruction for 235LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#23) two Weight Rubber Bumper (#30) fifteen Weight Plate 15LBS (#102) two weight stack space (#103) one Top Plate (#22) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#32) two Spring (#33) 2.
  • Page 25 Assembly STEP 4 Here is the assembly instruction for 295LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#23) two Weight Rubber Bumper (#30) nineteen Weight Plate 15LBS (#102) one Top Plate (#22) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#32) two Spring (#33) 2.
  • Page 26 Assembly All weight plate sticker paste schematic diagram...
  • Page 27 Assembly Full Shroud STEP 5 1. Attach the Bottom Bracket ASSY (#17) to the Weight Stack Frame ASSY (#1) using: two M10*75 HHB (#34) four Φ11*Φ20*2 Flat Washer (#38) two M10 Nylon Lock Nut (#39) 2. Attach two Top Bracket (#16) to the Training Placard Cover (#18) and the Top Rear Shroud (#24) using: four M6*10 CRPHS (#37) 3.
  • Page 28 Assembly Half Rear Shroud STEP 5 1. Attach the Bottom Bracket ASSY (#17) to the Weight Stack Frame ASSY (#1) using: two M10*75 HHB (#34) four Φ11*Φ20*2 Flat Washer (#38) two M10 Nylon Lock Nut (#39) 2. Attach two Top Bracket (#16) to the Training Placard Cover (#18) and the Top Rear Shroud (#24) using: four M6*10 CRPHS (#37) 3.
  • Page 29 Assembly STEP 6 1. Attach two Leg Pad (#12) to the Left Leg Frame ASSY (#6) and the Right Leg Frame ASSY (#5) using: two M10*50 BHCS (#54) two M10*60 BHCS (#53) two Big Rubber (#52) four Φ11*Φ20*2 Flat Washer (#38) 2.

  • Page 30: Adjust Instructions And Exercise Instructions

    Adjust Instructions and Exercise Instructions The Use Position adjustment 1. Pull the Adjustable Support and Adjust the Leg Frame to the desired position. 2. Make sure the pin gets into the hole completely. The use of Selector Pin W/Coil 1. Select an appropriate weight and put the Selector Pin W/Coil into the hole on it. 2.

  • Page 31: Maintenance Schedule

    Maintenance Schedule COMMERCIAL HOME LATEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3 MONTHS Accessory Bars, and Handles Inspect;...

  • Page 32: General Maintenance Information

    General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: * Check all pieces for signs of visible wear or damage. * Check springs in snap hooks and pull-pins for proper tension and alignment. * If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: * To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.

  • Page 33: Weight Training Tips

    Weight Training Tips Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training.
