Outputs
Sensor cable
2.6

Pulling Sensor Cable Through Electrical Conduit

It is very important to protect the end of the sensor cable when pulling it through a conduit. Water can accumulate in low
portions of conduit. Always use a cable cover, or similar method, to seal the end of the cable against water when pulling
the cable through conduit (see Figure 11). This will ensure proper operation of the meter.
NOTE
Cable cover is not provided.
1. Tie a rope or cable-snake securely around the middle of the cable cover.
2. Carefully pull the rope or snake until the sensor cable end clears the conduit.
3. Bring the cable end to the transmitter location. If necessary, secure the cable so that it does not fall back through the
conduit.
4. Remove the cable cover by pulling the rip wire. The cable cover will tear off (discard the cover).
I
CAUTION: Do not cut the cable cover off. Doing so may damage the sensor cable and adversely effect the
calibration of the meter.
Secure rope or snake to this
area of the cable cover
INSTALLING THE TRANSMITTER AND CABLES
Power

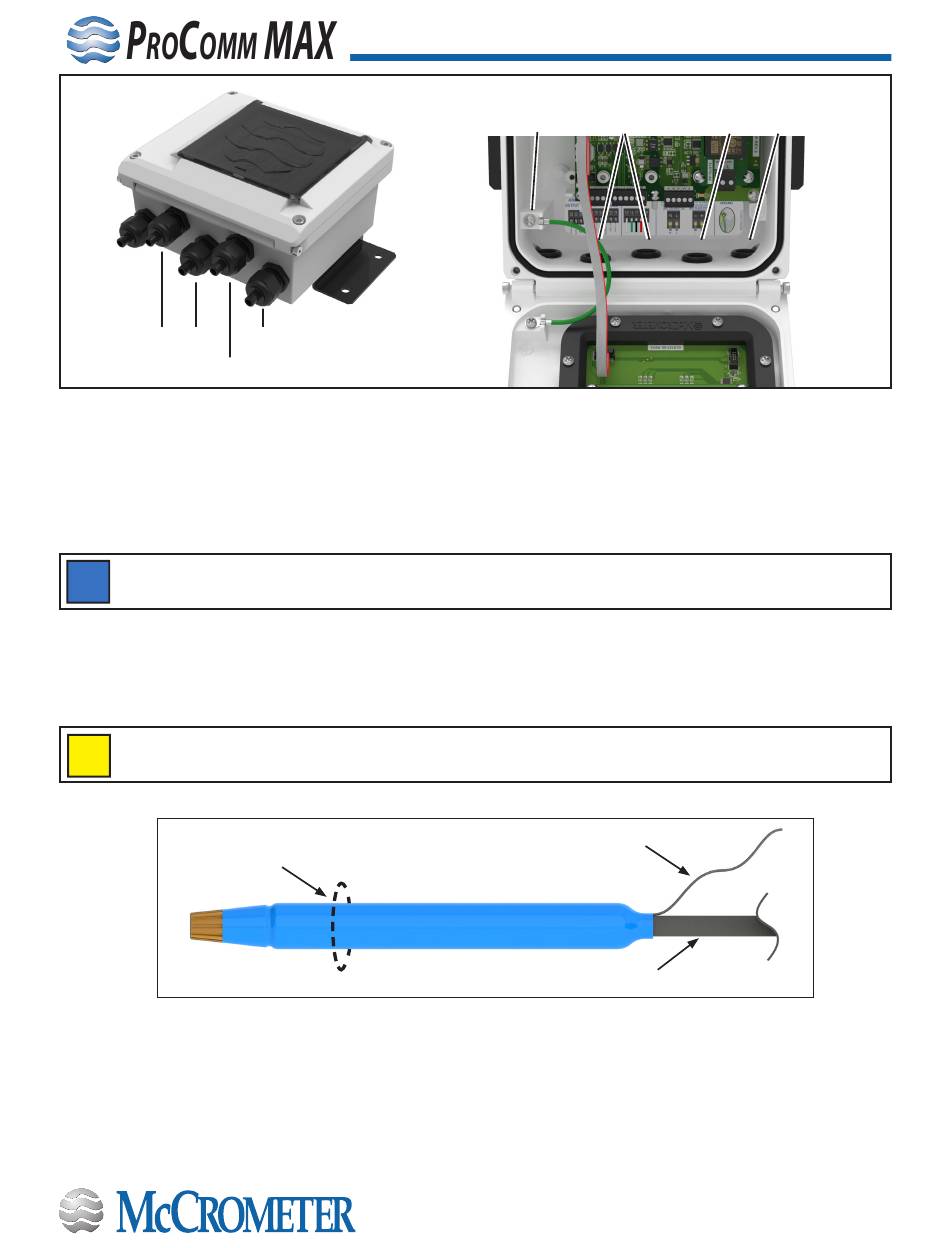

Figure 10. Remote mount transmitter cable assignments
Cable Cover
Figure 11. Cable Cover
Chassis
lug Outputs
Rip Wire
Sensor Cable
Page 6
Sensor
cable Power
30126-48 Rev. 1.0 | 23AUG2024
