Wiring Diagrams

!
CAUTION - Always disconnect the power cord before attempting any electrical connections.
METER MOUNT ONLY
COILS

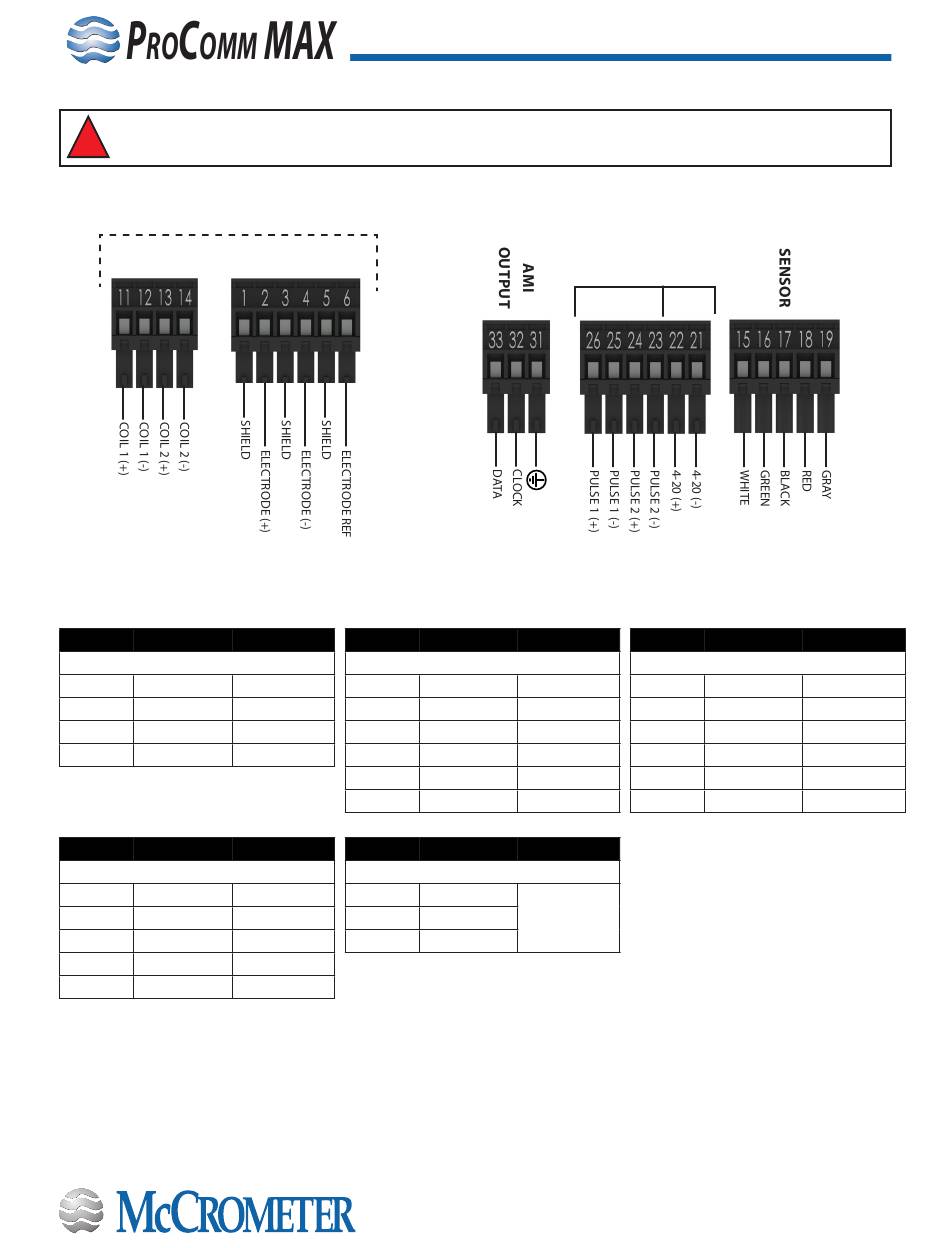

Terminal Block Assignments
Terminal Cable
COILS
11
COIL 1 (+)
12
COIL 1 (-)
13
COIL 2 (+)
14
COIL 2 (-)
Terminal Cable
SENSOR
15
A
16
B
17
(-) DC
18
(+) DC
19
SHIELD
ELECTRODES
Wire Color Terminal
1
2
ELECTRODE (+)
3
4
ELECTRODE (-)
5
6
ELECTRODE REF
Wire Color Terminal
33
White
32
Green
31
Black
Red
Gray/Bare
CABLING AND CONNECTING WIRING
BOTH METER MOUNT
AND REMOTE MOUNT
OUTPUTS
DIGITAL
Cable Wire Color
ELECTRODES
SHIELD
SHIELD
SHIELD
Cable Wire Color
AMI
DATA
Varies.
CLOCK
See section 3.8
GROUND
Page 8
4-20
Terminal Cable
OUTPUTS
26
PULSE 1 (+)
25
PULSE 1 (-)
24
PULSE 2 (+)
23
PULSE 2 (-)
22
4-20 (+)
21
4-20 (-)
30126-48 Rev. 1.0 | 23AUG2024
Wire Color
