Cable Gland Assignment For Wiring Harnesses - McCrometer ProComm Max Installation, Operation And Maintenance Manual

Figure 6. Remote mount
transmitter with five cable
gland pass-throughs
Figure 8. Meter mount
transmitter with four cable
gland pass-throughs
2.5

Cable Gland Assignment for Wiring Harnesses

To prevent signal interference and to keep the wiring organized, each cable gland is assigned for a specific wiring harness.
Refer to the assignment diagrams (Figure 9, Figure 10) below when you route your cable run.
INSTALLING THE TRANSMITTER AND CABLES
The remote mount transmitter is shipped with five 1/2" NPT cable glands.
Up to three cable glands may be removed and replaced with 1/2" conduits.
Attaching conduit directly to the enclosure may introduce dangerous
!
gasses and moisture into the enclosure creating a dangerous condition,
and will remove the enclosure's IP67 rating.
attaching conduit to the enclosure or altering the enclosure in any way is
not covered by the warranty.
Power
Outputs

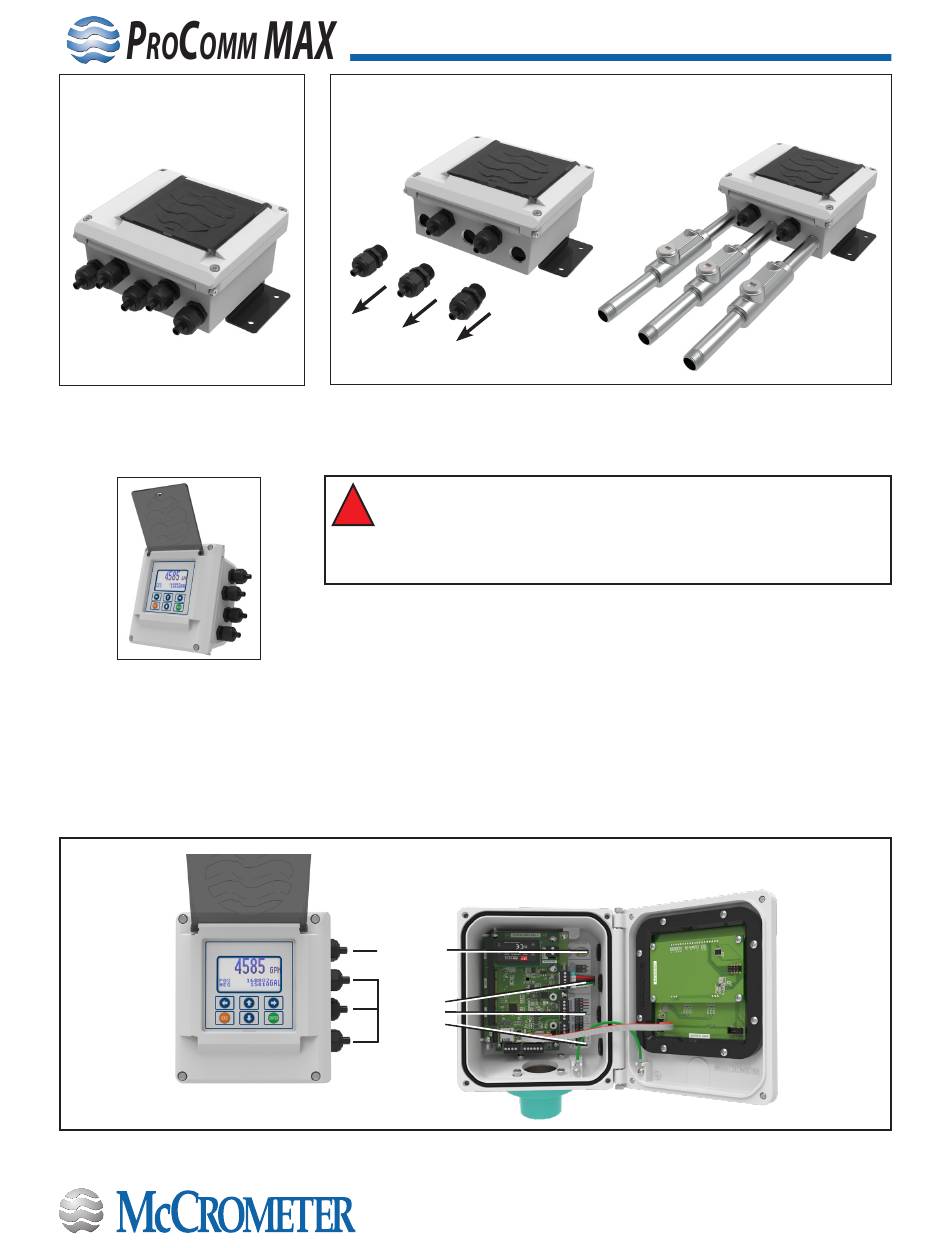

Figure 9. Meter mount transmitter cable assignments
Figure 7. Remote mount
transmitter with three conduit
pass-throughs
