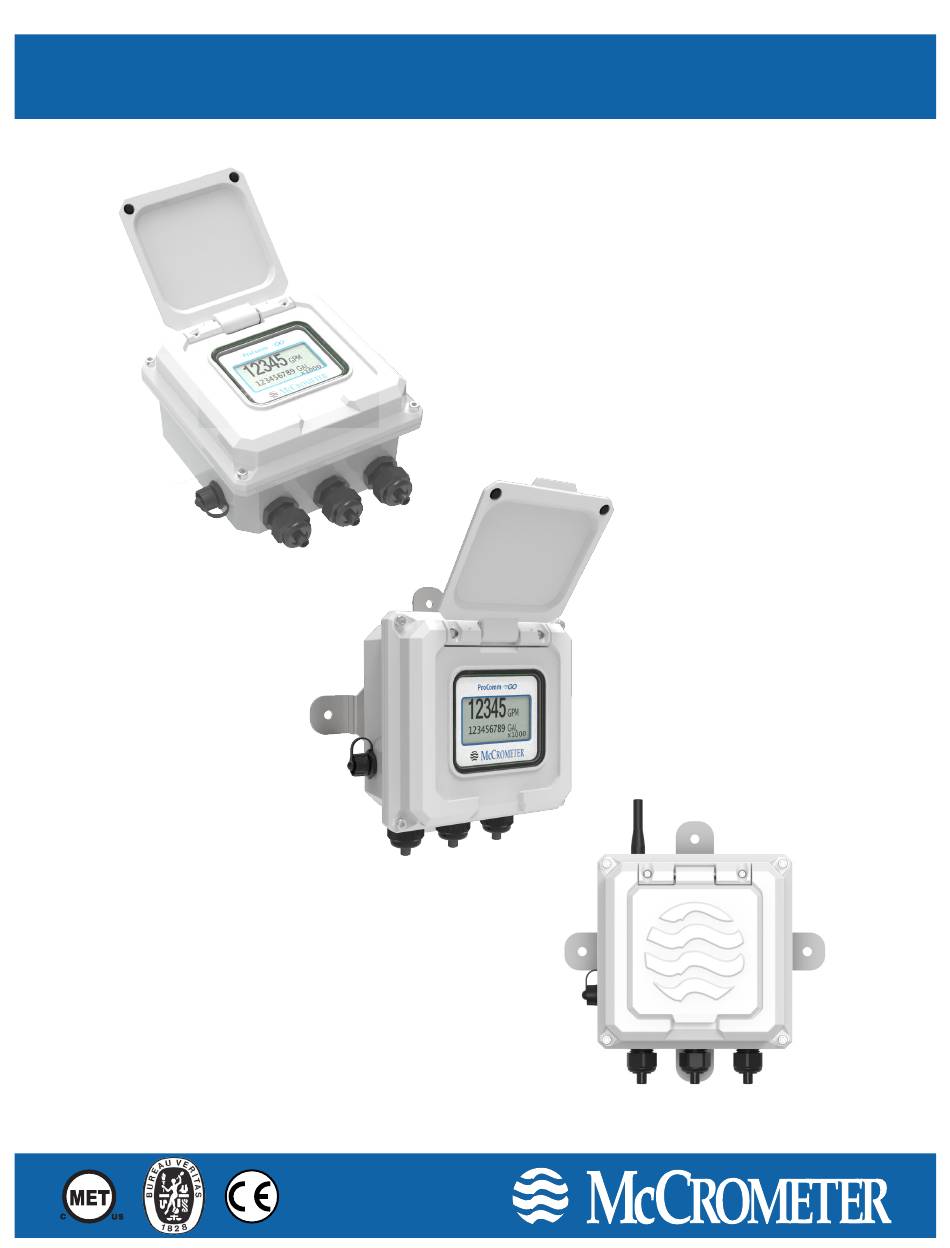

ProComm GO
Electromagnetic
Flow Meter Transmitter
Installation, Operation and
Maintenance Manual
Standard Model
For use in non-hazardous locations
HL Model
For use in hazardous locations:
• Class I, Division 2, Groups A B C D, T4
• Class I, Zone 2 IIC T4
30126-47 Rev. 1.0
(Not available with model with SmartTrax On Board)
26AUG2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for McCrometer ProComm GO PG Series
Summary of Contents for McCrometer ProComm GO PG Series
- Page 1 ProComm GO Electromagnetic Flow Meter Transmitter Installation, Operation and Maintenance Manual Standard Model For use in non-hazardous locations HL Model For use in hazardous locations: • Class I, Division 2, Groups A B C D, T4 • Class I, Zone 2 IIC T4 30126-47 Rev.
-
Page 2: Table Of Contents
Contents SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety Symbols . -
Page 3: Safety
. Safety Warnings When installing, operating, and maintaining McCrometer equipment where hazards may be present, you must protect yourself by wearing Personal Protective Equipment (PPE) and be trained to enter confined spaces . Examples of confined spaces are manholes, pumping stations, pipelines, pits, septic tanks, sewage digesters, vaults, degreasers, storage tanks, boilers, and furnaces . -
Page 4: Transmitter Overview
TRANSMITTER OVERVIEW ProComm 3000 1 .0 TRANSMITTER OVERVIEW Read this entire manual prior to installation and/or changing any settings . Retain this manual in your records, DO NOT DISCARD . The transmitter is the reporting device that displays transmits and stores, flow data received from the signal converter . The signal converter takes flow data from the sensor and turns it into usable data to allow the measurements, functional programming and data recording to be communicated through the transmitter display visually and as output signals . -
Page 5: Example Remote Mount Configuration
INSTALLING THE TRANSMITTER AND CABLES ProComm 3000 2 .2 Example Remote Mount Configuration After installing the sensor, mount the transmitter and connect the cable to the meter’s junction box and the transmitter’s external connection . Figure 4 below shows an example of a remote mount installation with an optional Smart Output connection . -
Page 6: Mounting The Transmitter
IMPORTANT: Do not cut or alter the cable length on power or signal cables! Connections to the sensor must be made with cable supplied by McCrometer specifically for that purpose . Do not substitute the supplied cable with other types of cable, even for short runs . For repairs or added lengths of cable, the entire cable between the sensor and the transmitter must be replaced . -
Page 7: Pulling Sensor Cable Through Electrical Conduit
INSTALLING THE TRANSMITTER AND CABLES ProComm 3000 2 .6 Pulling Sensor Cable Through Electrical Conduit It is very important to protect the end of the sensor cable NOTE when pulling it through a conduit . Water can accumulate Cable cover is not provided . in low portions of conduit . -
Page 8: Internal Wire Connection
INTERNAL WIRE CONNECTION ProComm 3000 3 .0 INTERNAL WIRE CONNECTION This section describes cable and wire harness connection inside the transmitter . Section 5 .0 describes wire connection for all peripherals outside of the transmitter, including pulse output and external power options . 3 .1 Terminal Block Diagram and Grounding Lug Coils and electrodes... -
Page 9: Wiring Diagrams
INTERNAL WIRE CONNECTION ProComm 3000 3 .2 Wiring Diagrams TERMINAL BLOCK ASSIGNMENTS Coils Harness Terminal Port Wire Color YELLOW Black BLACK Electrodes Harness Terminal Port Wire Color GREEN BARE WIRE White WHITE Bare wire Green Pulse Output Harness Terminal Port Wire Color PINK Pink... -
Page 10: Optional Smart Output Hook Up
Elster Black Green table shown at right . (Figure 14) Itron Green Black • Signals and associated wire colors in the McCrometer Neptune Green Black SmartOutput™ interface cable are identified together in Sensus Black Green the top row of the table at right . -
Page 11: Pin-Out Of Male And Female Connectors
INTERNAL WIRE CONNECTION INSTALLING THE SMARTTRAX ProComm 3000 3 .5 Pin-out of Male and Female Connectors Pin-out of Male and Female Connectors Black FEMALE CABLE Brown Gray Pulse / AMI / 5V Analog White Connector Blue Figure 17 . Pin-out of Female Connector Figure 12. -
Page 12: Accessing The Data
“Send Veri cation Code”. account. While you’re creating your account, you’ll get an email from Microsoft on behalf of McCrometer. Open the email and nd the veri cation code. To nish creating your Enter “New Password”, Re- STEP 2: Log-in to your account account, enter the enter password, “Con rm New... - Page 13 “Con rm New Use the following link: veri cation code and click Password”, enter preferred https://data.mccrometer.com on “Verify Code”. “Display Name” as it will show on the website and Click “Create”. Enter your email address &...
- Page 14 ACCESSING THE SMARTTRAX DATA ProComm 3000 Click on “TAKE OWNERSHIP” if you will be responsible for reoccurring data fees. Each device has a 30-day grace period following activation. Ownership can be transferred via the website anytime. Click on “CONFIGURE” to set-up and activate device.
- Page 15 ACCESSING THE SMARTTRAX DATA OPERATION ProComm 3000 Make changes to Con guration as needed and click on “DONE” to return to Dashboard. Unit has been added to your Account successfully. Page 11 Page 13 30125-82 Rev. 1.2 | 01NOV2023 30126-47 Rev. 1.0 | 26AUG2024...
-
Page 16: External Wire Connection
IMPORTANT Connections to the sensor must be made with cable supplied by McCrometer specifically for that purpose . Do not substitute the supplied cable with other types of cable, even for short runs . For repairs or added lengths of cable, the entire cable between the sensor and the transmitter must be replaced . -
Page 17: Power Options
EXTERNAL WIRE CONNECTION ProComm 3000 Remove protective cap . Note: Exact location of Insert connector into the connectors may depend on port . converter configuration . Turn the knurled collar on the cable until tight . When cable is connected, connect the meter-end protective cap to the cable- end protective cap (not... -
Page 18: Dc Power Cable (Optional)
EXTERNAL WIRE CONNECTION ProComm 3000 5 .4 DC Power Cable (Optional) The cable contains wiring for both the optional 10-32VDC power to the meter, and the 4-20mA output from the meter . (Figure 24) Note: Input power is for the transmitter only if that option was selected at time of purchase . The 4-20mA loop requires its own power supplied to the loop, not be used with red/black wires . -
Page 19: Solar Panel Option (For Use With Standard Model Only)
. See Figure 28 below . The solar panel comes complete with all accessories, except for the fixing rod . These instructions apply only to McCrometer-supplied solar panels with a rechargeable battery . Connecting directly to a solar panel could damage the transmitter . -
Page 20: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT Battery Installation and Replacement ProComm 3000 ProComm 3000 6 .0 BATTERY INSTALLATION AND REPLACEMENT Battery Installation and Replacement Procedure for the ProComm GO 3000 Converter This procedure applies to all ow meters with the ProComm WARNING GO 3000 converter. -
Page 21: Removing The Batteries
BATTERY INSTALLATION AND REPLACEMENT Battery Installation and Replacement ProComm 3000 ProComm 3000 II. Removing the batteries Unplug tall connectors to sensor, outputs, and Loosen the captive screws opposite of the hinge and power. lift the battery cover. Hinge Hinge screws Connectors Unplug the batteries. - Page 22 Battery Installation and Replacement BATTERY INSTALLATION AND REPLACEMENT ProComm 3000 ProComm 3000 III. Installing the batteries and restoring the power Cut the zip tie holding the 10. Pass the new zip tie through the 11. Wrap the new zip tie around the dry pack to the hinge on the slots in the internal hinge.
-
Page 23: Replacing The Gasket
Copyright © 2022 McCrometer, Inc. All printed material should not be changed or altered without permission of McCrometer. Any published pricing, technical data, and instructions are subject to change without notice. Contact your McCrometer representative for current pricing, technical data, and instructions. -
Page 24: Operation
General The flow meter comes pre-configured from the factory based on the installation parameters provided to McCrometer at the time of order . Other than activating the display, there is nothing required of the user for the basic operation of the flow meter . -
Page 25: Transmitter Boot
This is only a summary of the configuration tool’s functionality . The software has complete set-up and operation instructions included . The software can be downloaded from the McCrometer Web site . Software Operation Remove the cap that protects the USB port and plug in a mini USB type B Figure 34 . -
Page 26: Error Messages For Troubleshooting
ERROR MESSAGES FOR TROUBLESHOOTING ProComm 3000 9 .0 ERROR MESSAGES FOR TROUBLESHOOTING DISPLAY MESSAGE Troubleshooting BAT LOW Battery replacement Kit is needed to replace batteries . The batteries Should last approximately 6-9 months from the time the warning is shown . 420 ERR The 4-20 circuit is not wired correctly . -
Page 27: Specifications
SPECIFICATIONS ProComm 3000 10 .0 SPECIFICATIONS Physical Specifications Electronic Housing Diecast aluminum, powder coated enclosure w/ tamper resistant seal, 6½” x 6½” x 43/8” tall Transmitter See "Dimensions" section for meter mount and remote mount transmitter dimensions . Dimensions Battery: Standard: three 3 .6V lithium-thionyl chloride (Li-SOCI2) D size batteries with two AA backup batteries Power... -
Page 28: Other Specifications
SPECIFICATIONS ProComm 3000 Display and Measurement (cont .) Gallons Barrel (42G) Miners Inch Hour (11 . 2 2G) Cubic Feet Barrel (46G) Miners Inch Day (11 . 2 2G) Acre Feet Barrel (55G) Miners Inch Hour (9G) CUM Cubic Meters Imperial Gallon Miners Inch Day (9G) Totalizer Units... -
Page 29: Dimensions
DIMENSIONS ProComm 3000 11 .0 DIMENSIONS Meter mount converter 6 .44" 4 .34" 6 .94" 6 .94" Remote mount converter 4 .8” 6 .4” 8 .8” 8 .8” Page 27 30126-47 Rev. 1.0 | 26AUG2024... -
Page 30: Returning A Unit For Repair
. • Call the McCrometer Customer Service Department at 1-800-220-2279 and ask for a Return Authorization (RA) number . • Please make sure the meter is clean and free from foreign debris prior to shipping . -
Page 31: Warranty Statement
Current as of: WARRANTY STATEMENT ProComm GO converter warranty McCrometer warrants that this product will be free from Purchaser’s sole remedy and manufacturer’s sole obligation defects in material and workmanship for a period 12 for alleged product failure, whether under warranty...
