Transmitter Power Wiring Diagram

WARNING!
!
Hazardous supply voltage can shock, burn, or cause death.
These instructions are for connecting either the AC or DC power option. The connections are
shown below above the appropriate power card.
Install the power card as described in section 3.4. Connect power as shown below in Figure 14
and Figure 15.
The power supply line must be equipped with external surge protection for current overload
(fuse or circuit breaker with limiting capacity not greater than 10A). It must be easily accessible
for the operator and clearly identified.
Neutral Wire
Line Wire
(typically a
(typically a
white wire)
black wire)

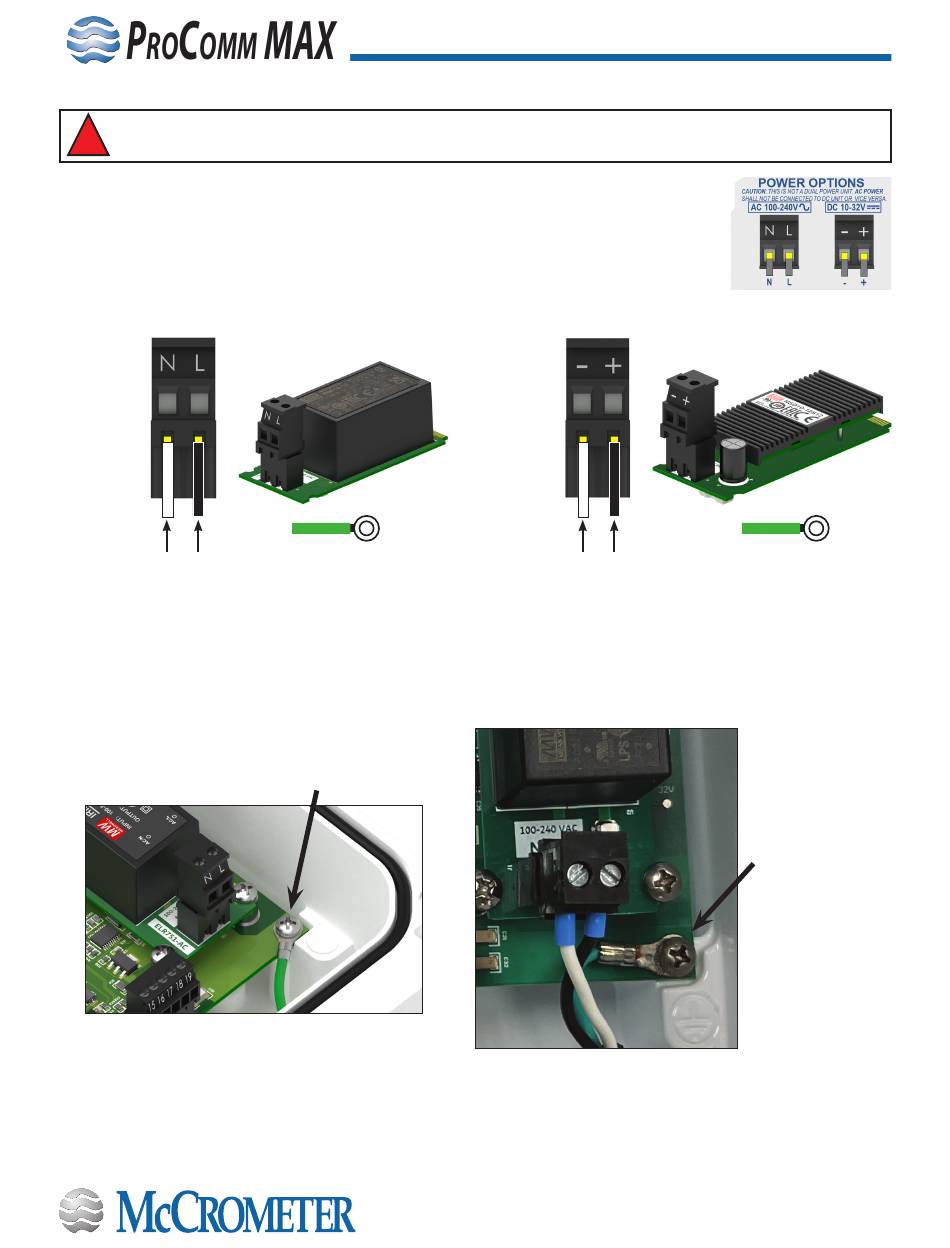

Figure 14. AC Power Supply
Terminal Block
Location of Chassis
Ground Lug
Ground Wire
(typically a
green wire)
Chassis Ground Connection
Page 10
CABLING AND CONNECTING WIRING
Power Supply
Power Supply +
(typically a
(typically a red
white wire)
wire)
Figure 15. Optional DC Power
Supply Terminal Block
Ground Wire
(typically a
green wire)
AC power card at left
as an example of the
ground connection.
30126-48 Rev. 1.0 | 23AUG2024
