4.4

Menu Structure

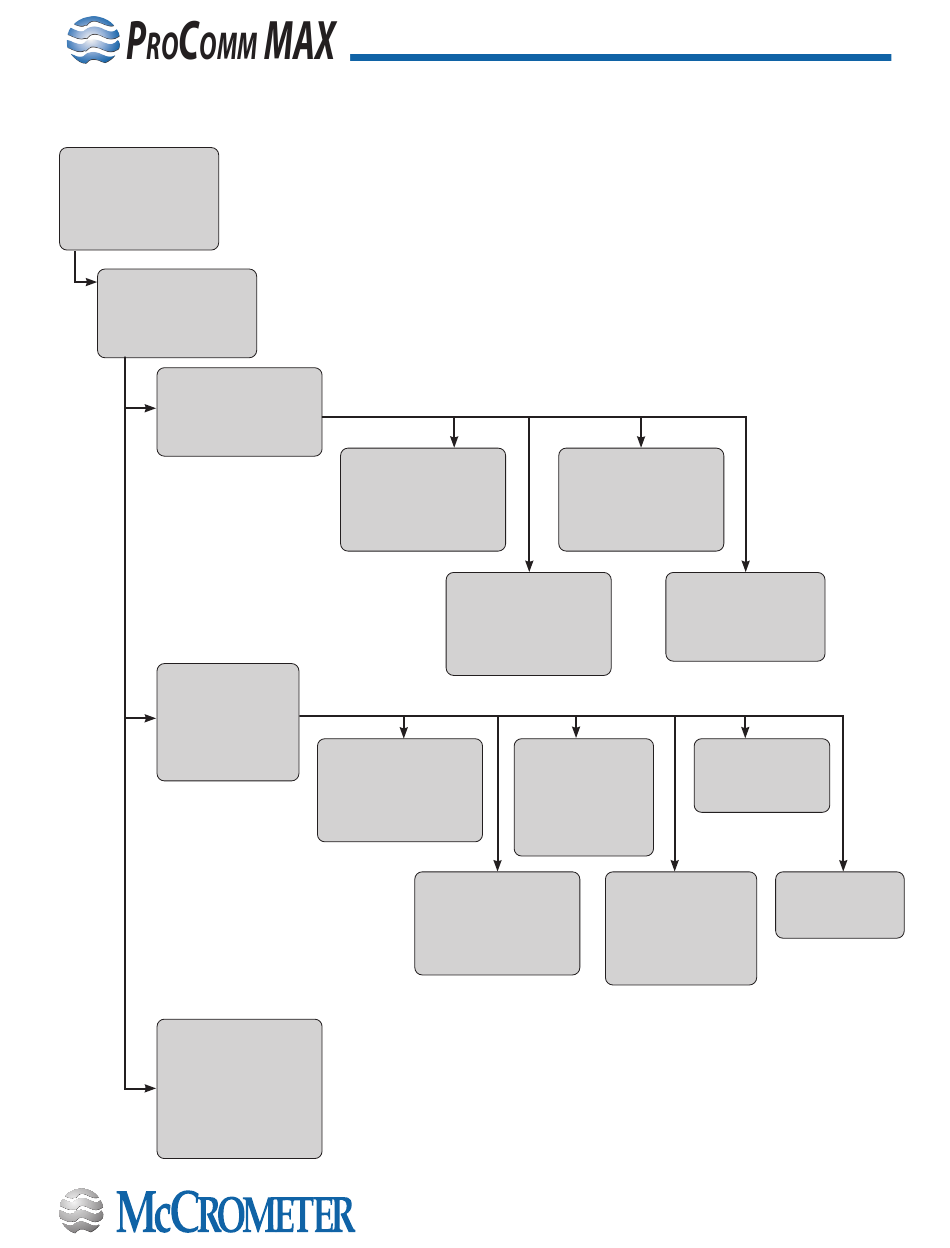

The following is the menu structure for the ProComm Max transmitter. NOTE: Some menus change as options are enabled.
QUICK START
Main Menu
Display UOM
Sensor
4-20mA
Pulse Out
MAIN MENU
Configuration
Outputs
Diagnostics
CONFIGURATION
Display UOM
Sensor
Alarms
Advanced
OUTPUTS
4-20mA Out 1
4-20mA Out 2
Pulse Output
AMI Smart
RS485 Modbus
Hart
DIAGNOSTICS
DataLog
Log Period
Log Event
Flow Sim
Sim Rate
Reboot
MAIN MENU is top menu
selection from QUICK START.
DISPLAY UOM
Flow Rate
Totalizer
Total MLT
Bidirection
Batch Total
4-20MA OUTPUT 1
Enable
Units
High 20mA=
Low 4mA=
Power SRC
4-20MA OUTPUT 2
Enable
Units
High 20mA=
Low 4mA=
Power SRC
TRANSMITTER OPERATION
ALARMS
EP Enable
EP Thresh
Max Flow
SENSOR
Pipe ID
ID Units
PWR Freq
Damping
PULSE OUTPUT
P1 Enable
Rate
P2 Enable
Rate
Units
PLS Width
RS485 MODBUS
Baud Rate
Address
Parity
Term. Res.
Page 16
ADVANCED
Flow Cutoff
KS
Total Set
Cal Coefficient
SMART OUTPUT
Enable
Protocol
HART OUTPUT
30126-48 Rev. 1.0 | 23AUG2024
