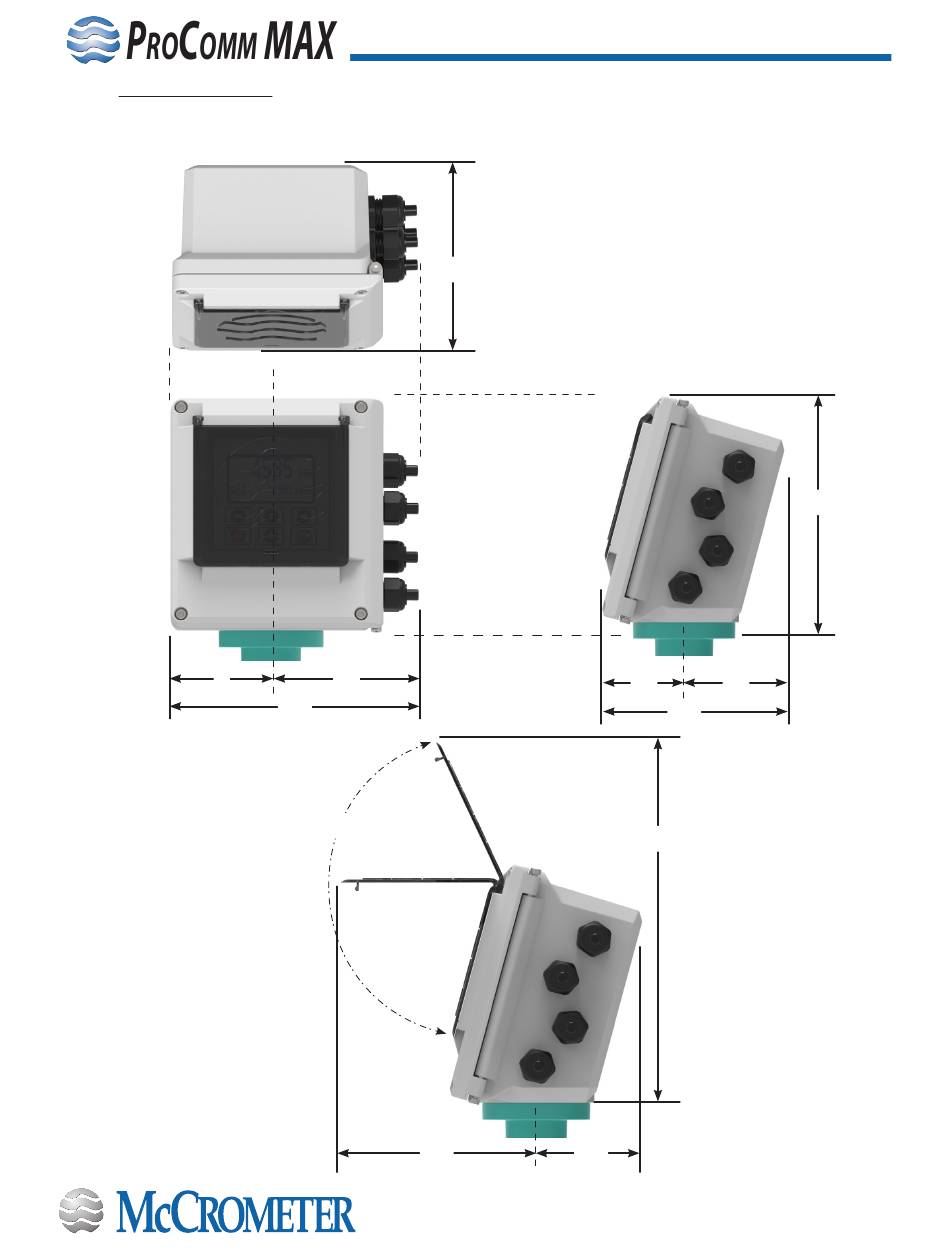

11.0 DIMENSIONS
Meter Mount Transmitter Dimensions
3"
5.6"
4.4"
7.4"
140º
5.7"
Page 23
DIMENSIONS
Height 6.9" (17.6 cm)
Width7.4" (18.8 cm)
Depth 5.6" (14.2 cm)
2.5"
3.1"
5.6"
10.25"
3.1"
30126-48 Rev. 1.0 | 23AUG2024
6.9"
