TRANSMITTER DESCRIPTION

1.0 TRANSMITTER DESCRIPTION
Read this entire manual prior to installation and/or changing any settings. Retain this manual in your records, DO NOT
DISCARD.
The signal transmitter is the reporting, input and output control device for the sensor. The transmitter allows the
measurements, functional programming, control of the sensor and data recording to be communicated through the
display and inputs & outputs. The microprocessor-based signal transmitter has a multi-point curve-fitting algorithm to
improve accuracy, 4-20mA analog output, an 8-line graphical backlit LCD display with six-key touch programming, and a
rugged enclosure that meets IP67. Options include daughter cards for HART, ModBus, Ethernet, AC or DC power.
In addition to a menu-driven self-diagnostic test mode, the microprocessor continually monitors the transmitter's
functionality. The transmitter will output rate of flow and total volume. The transmitter also comes standard with password
protection and many more features.

2.0 INSTALLING THE TRANSMITTER AND CABLES

2.1

Finding the Transmitter's Serial Number

The tag on the side of the transmitter has the transmitter model number and the serial number. An example is shown
below as Figure 1.
Meter mount transmitter Remote mount transmitter

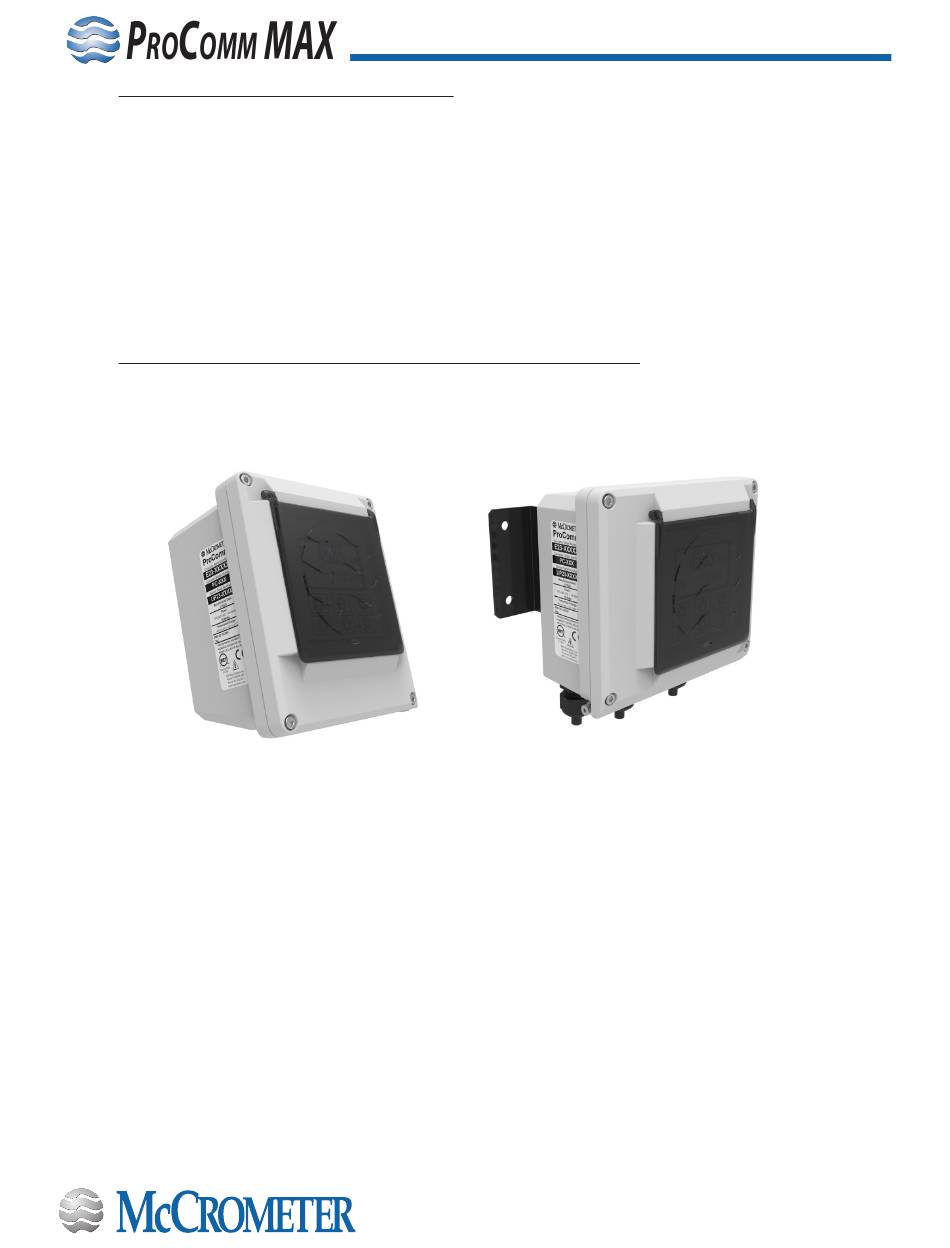

Figure 1. Location of Transmitter's Serial Number Tag
