Installing Expansion Cards

Expansion
card 1

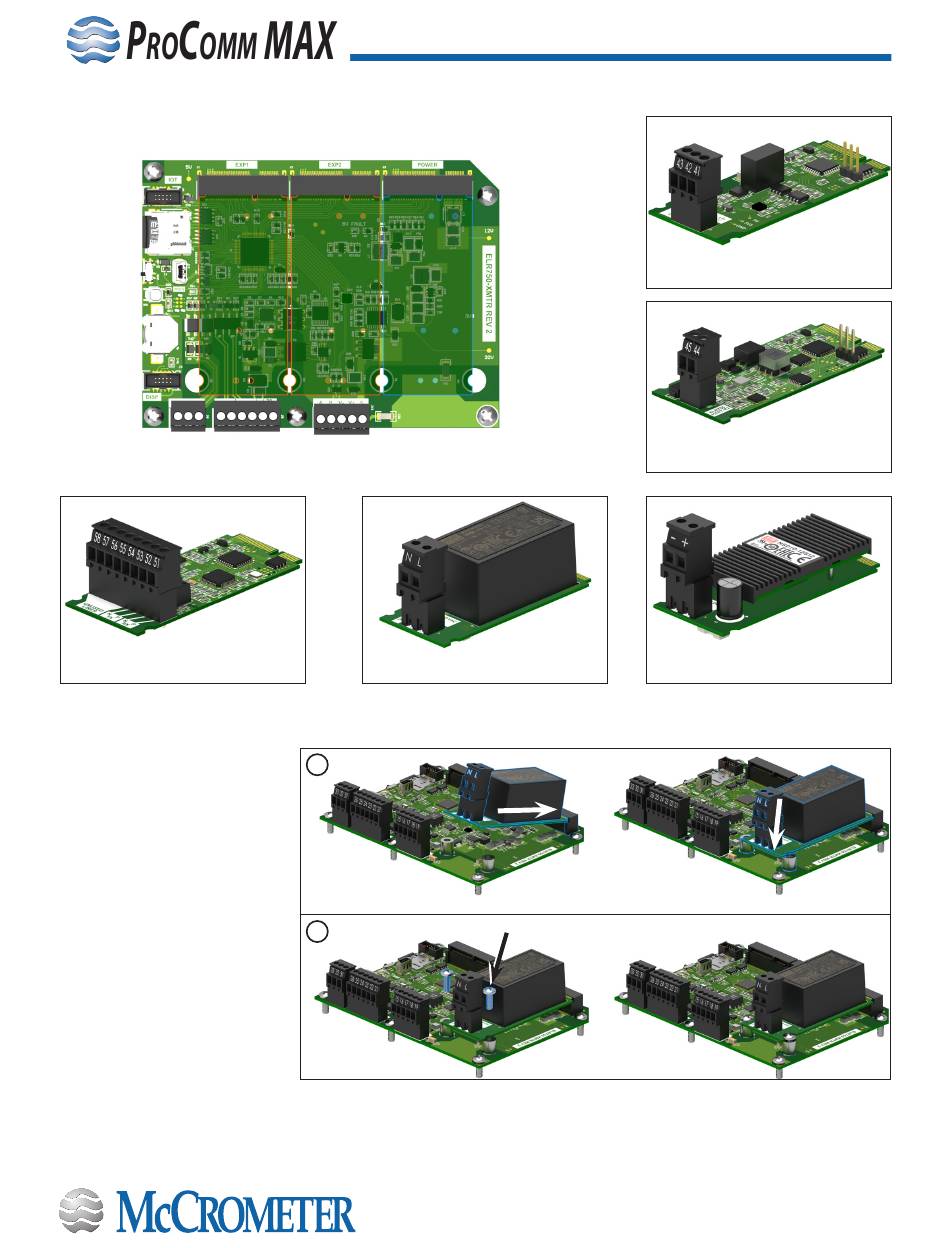

Ethernet expansion card
Inserting the expansion card
Refer to the images that
accompany each step. The
AC power card is shown as an
example. See section 3.5 for
wiring diagrams for both AC and
DC power.
1. Slide the card into the
connection slot. Set the card
flat on the two support posts.
2. Insert and tighten two
screws to secure the card in
place.
Expansion
card 2 Power
AC power card
1
2
Page 9
CABLING AND CONNECTING WIRING
Modbus (RTU) expansion card
HART expansion card
DC power card
