Technical Parameters
ANSI/PLATO FL1
OUTPUT
4 hours*
RUNTIME
150 meters
DISTANCE
candela
INTENSITY
IMPACT
RESISTANCE
SUBMERSIBLE
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix
through its laboratory testing using the included Fenix ARB-L18-3400U V2.0 battery under the temperature of
21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different
working environments and the actual battery used.
*The Turbo output is measured in total of runtime including output at reduced levels due to temperature or
protection mechanism in the design.

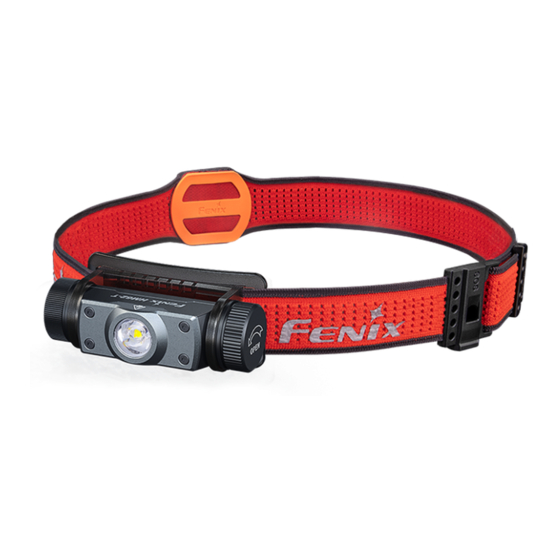

(ENGLISH)Fenix HM62-T Headlamp
WHITE LIGHT
Turbo
High
1200
400 lumens
lumens
12 hours
80 meters
5590
1317
candela
Med
Low
130 lumens
5 lumens
23 hours
280 hours
40 minutes
45 meters
8 meters
509
15
candela
candela
2 meters
IP68
RED LIGHT
Constant-on
Flash
5 lumens
5 lumens
60 hours
120 hours
8 meters
/
15
/
candela
Advertisement
Related Manuals for Fenix HM62-T
Summary of Contents for Fenix HM62-T
- Page 1 IP68 SUBMERSIBLE Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using the included Fenix ARB-L18-3400U V2.0 battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
-
Page 2: Product Features
Warning ◎Do place this headlamp out of the reach of children! ◎Do NOT shine the headlamp directly into the eyes of anyone! ◎Do NOT place the headlamp near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite! ◎Do NOT use the headlamp in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the headlamp or internal battery fails! ◎This headlamp will accumulate a significant amount of heat while operating, resulting in a high temperature of... -
Page 3: Battery Specifications
In locked status, clicking or pressing the switches will activate 4 blinks on the Low output of white light mode to indicate locked status. Battery Specifications Type Dimensions Nominal voltage Usability Fenix ARB-L18 Series Recommended √√ 18650 3.6 V Fenix ARB-L16 Series Usable 16340 3.6 V... -
Page 4: Battery Level Indication
Red light on: 50% - 20% Red light flashes: 20% - 1% *Note: This only works with a Fenix ARB-L18 Series battery. Intelligent Overheat Protection The lamp will accumulate a lot of heat when used at high output levels for extended periods. When the lamp reaches a temperature of 50°C/122°F or above, it will automatically step down a few lumens to reduce the... - Page 5 Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor. Included Fenix HM62-T headlamp, ARB-L18-3400U V2.0 battery, Spare O-ring, USB Type-C charging cable, User manual, Warranty card...
