Technical Parameters
ANSI/PLATO
FL1
Turbo
1200
Output
lumens
2 hours *
Runtime
116
meters
Distance
3400
candela
Intensity
Impact
Resistance
Submersible
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix
through its laboratory testing using one Fenix ARB-L18-2600 Li-ion battery under the temperature of 21±3°C and
humidity of 50% - 80%. The true performance of this product may vary according to different working
environments and the actual battery used.
*The Turbo output is measured in a total of runtime including output at reduced levels due to temperature or
protection mechanism in the design.

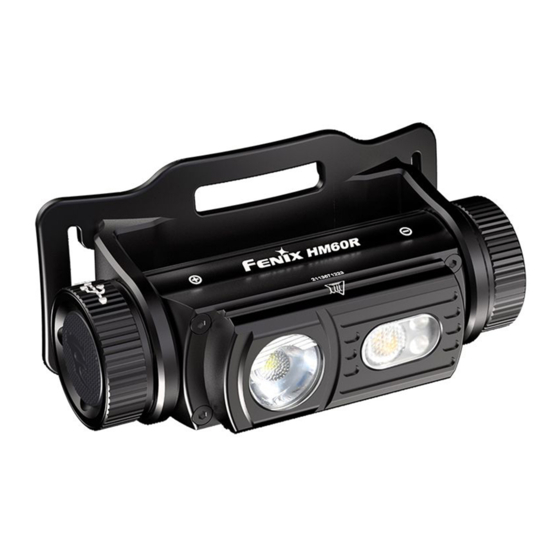

Fenix HM60R Headlamp
Spotlight Mode
High
Med
350
130
lumens
lumens
8 hours
18 hours
60
36
meters
meters
913
330
candela
candela
Low
High
30
350
lumens
lumens
8
54 hours
hours
18
33
meters
meters
78
268
candela
candela
2 meters
IP68
Functional Mode
Med
Red
70
5
lumens
lumens
lumens
24
100
hours
hours
15
5
meters
meters
meters
55
7
candela
candela
candela
SOS
5
200
hours
5
7
Advertisement
Table of Contents
Related Manuals for Fenix HM60R
Summary of Contents for Fenix HM60R
- Page 1 IP68 Submersible Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one Fenix ARB-L18-2600 Li-ion battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
- Page 2 1200 lumens maximum output, 116 meters maximum beam distance. Luminus SST40 white light LED, XP-G2 neutral white light LED; with a lifespan of 50,000 hours. Included a Fenix ARB-L18-2600 18650 rechargeable LI-ion battery and compatible with two CR123A Lithium batteries. Spotlight, floodlight and red light combined.
- Page 3 The headlamp memorizes the last selected output on spotlight mode. When turned on again the previously used output will be recalled. Each time the functional mode is entered with red light. Battery Specifications Nominal Type Dimensions Usability Voltage Fenix ARB-L18 Series 18650 3.6V Recommended √√ Non-rechargeable Battery CR123A Usable √...
- Page 4 Battery Replacement Unscrew the cap to insert the battery in accordance with the polarity marks, then screw the cap back on. Frequency Sensing There is frequency sensing on Med and High output levels in spotlight mode. 1. Set frequency of step 150 times/minute as the standard. From 150 times/minute to 220 times/minute, the brightness increases proportionally with the frequency of step.
- Page 5 2. The indicator will display red while charging, and will turn to green when fully charged. 3. The normal charging time of the included Fenix ARB-L18-2600 18650 rechargeable Li-ion battery is about 3 hours with a 5V/2A adapter.
- Page 6 Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor. Included Fenix HM60R Headlamp, Fenix ARB-L18-2600 Li-ion battery, USB Type-C charging cable, Spare O-ring, User manual, Warranty card...
- Page 7 Warning The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes. This headlamp will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the headlamp shell.
