Technical Parameters
ANSI/PLATO FL1
Turbo
1000
OUTPUT
lumens
3 hours*
RUNTIME
meters
DISTANCE
12067
candela
INTENSITY
IMPACT
RESISTANCE
SUBMERSIBLE
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix
through its laboratory testing using one Fenix ARB-LP1900 battery under the temperature of 21±3°C and humidity of 50%
- 80%. The true performance of this product may vary according to different working environments and the actual
battery used.
*The Turbo output is measured in total of runtime including output at reduced levels due to temperature or protection
mechanism in the design.
Warning
◎Do NOT place this lamp in the reach of children!
◎Do NOT shine the lamp directly into the eyes of anyone!
◎Do NOT place light head near flammable objects, high temperatures can cause objects to overheat
and become flammable/ignite!
◎Do NOT use the lamp in inappropriate ways such as holding the unit in your mouth, doing so could
cause serious personal injury or death if the headlamp or internal battery fails!
◎This lamp will accumulate a significant amount of heat while operating, resulting in a high

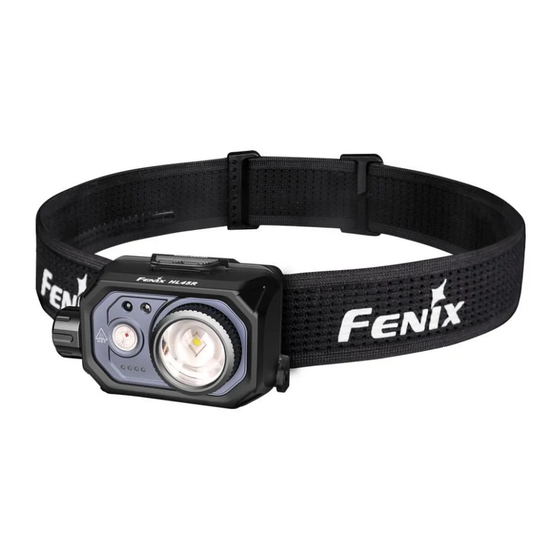

(ENGLISH)Fenix HL45R Headlamp
White light mode
High
Med
350
130
lumens
lumens
4 hours
12 hours
20
40
minutes
minutes
220
135
82 meters 39 meters 27 meters 9 meters 4 meters
meters
4533
1660
candela
candela
Red light mode
Low
High
30
130
lumens
lumens
lumens
4 hours
25 hours
54 hours
20
minutes
minutes
375
180
candela
candela
candela
1 meter
IP66
Med
Low
Flash
30
5 lumens 5 lumens
30
124 hours 240 hours
22
4 candela
/
/
Advertisement
Related Manuals for Fenix HL45R
Summary of Contents for Fenix HL45R
- Page 1 Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one Fenix ARB-LP1900 battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
- Page 2 temperature of the lamp shell. Pay close attention to avoid burns. ◎Lock the lamp or remove the battery to prevent accidental activation when the lamp is placed in a closed and flammable environment such as pockets and backpacks! ◎The LEDs of this lamp are not replaceable; so the whole lamp should be replaced when any of the LEDs reaches the end of its lifespan.
- Page 3 Output Selection White light mode: With the lamp switched on, single click the electronic switch to cycle through Low→Med→High→Turbo. Red light mode: In Red light mode, single click the electronic switch to cycle through Low→Med→High→Flash. Gesture-sensing Function On: With the lamp switched off, press and hold the electronic switch for 6 seconds, and the lamp will flash twice at the Low output of Red light mode, indicating that the function is enabled.
- Page 4 3. With the lamp switched off, the normal charging time of using a Fenix ARB-LP1900 battery is about 3 hours from depleted to fully charged with a 5 V/1 A or above charging adapter.
- Page 5 One light on: 40% - 20% One light flashes: 20% - 1% *Note: This feature only works with a Fenix ARB-LP1900 battery. Intelligent Overheat Protection The lamp will accumulate a lot of heat when used at high output levels for extended periods. When the lamp reaches a temperature of 55°C/131°F or above, it will automatically step down a few lumens to...
- Page 6 B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor. Included Fenix HL45R headlamp, Fenix ARB-LP1900 battery, USB Type-C charging cable, User manual, Warranty card...
