Technical Parameters
ANSI/PLATO
FL1
High
1300 lumens
Output
4 hours
Runtime
170 meters
Distance
7261
candela
Intensity
Impact
Resistance

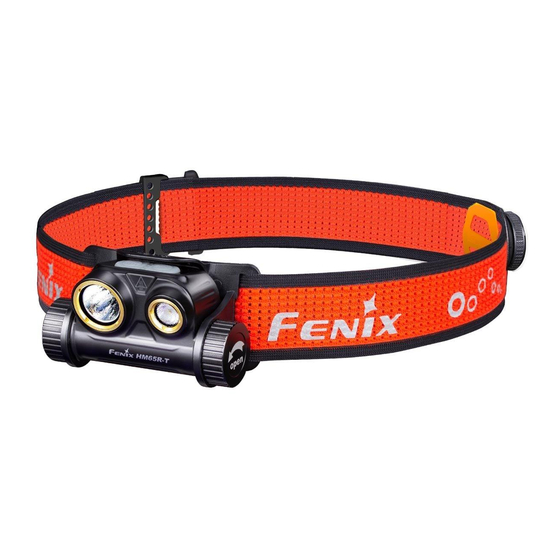

Fenix HM65R‐T Headlamp
Spotlight
Med
Low
400 lumens
130 lumens
12 hours
24 hours
96 meters
55 meters
2304
762
candela
candela
Floodlight
High
400 lumens
70 lumens
12 hours
36 hours
54 meters
23 meters
737
candela
2 meters
Med
Low
5 lumens
300 hours
6 meters
133
10
candela
candela
Advertisement
Table of Contents
Related Manuals for Fenix HM65R-T
Summary of Contents for Fenix HM65R-T
- Page 1 Fenix HM65R‐T Headlamp Technical Parameters Spotlight Floodlight ANSI/PLATO FL1 High Med Low High Med Low 1300 lumens 400 lumens 130 lumens 400 lumens 70 lumens 5 lumens Output 4 hours 12 hours 24 hours 12 hours 36 hours 300 hours Runtime 170 meters 96 meters 55 meters 54 meters 23 meters 6 meters Distance 7261 2304 762 ...
- Page 2 IP68 Submersible Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using the included Fenix ARB‐L18‐3500 battery under the temperature of 21±3°C and humidity of 50% ‐ 80%. The true performance of this product may vary according to different working environments and the actual battery used. *The High output is measured in total of runtime including output at reduced levels due to ...
- Page 3 Operating Instruction Switches Spotlight: for on/off, mode switching, lockout function and output selection on spotlight mode. Floodlight: for on/off, mode switching, lockout function and output selection on floodlight mode. On/off Press and hold either of the two switches for 0.5 seconds to turn on/off the lamp. Low output level is set by default. Mode switching Press and hold either of the two switches for 0.5 seconds to reach the corresponding mode. The two modes are separately controlled. Output selection Spotlight mode: single click the spotlight switch to cycle through Low→Med→High. Floodlight mode: single click the floodlight switch to cycle through Low→Med→High. Lockout Function Lock: With the lamp switched off, press and hold either of the two switches, or simultaneously press the two switches for 3 seconds, the lamp will blink 4 times on Low of floodlight mode to indicate locked status. Unlock: With the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp ...
- Page 4 *18650 Li‐ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes. Quality Li‐ion battery with protective circuit will reduce risks. Fenix ARB‐L18 Series battery is recommended. Battery Replacement ...
- Page 5 1. Uncover the anti‐dust cap and plug the USB Type‐C side of the charging cable into the charging port of the lamp. 2. The normal charging time of the Fenix ARB‐L18‐3500 rechargeable Li‐ion battery is about 3 hours with the lamp being switched off. When charging, Low output of spotlight or floodlight mode can be separately selected. The headlamp will not automatically power on after full ...
- Page 6 The lamp will accumulate a lot of heat when used on high, med and low output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user for the reselection of the modes. Low‐voltage Warning When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, one of the battery level indicators blinks to remind you to timely recharge or replace the battery. Note: This only works with Fenix ARB‐L18 Series 18650 rechargeable Li‐ion battery. Headband Assembly Notice: The headband is factory assembled by default. Press the rotary press‐pull clasp, rotate it clockwise to shorten the headband; pull the clasp up to loosen the headband. Usage and Maintenance ...
- Page 7 Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications). B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor. Included Fenix HM65R‐T Headlamp, ARB‐L18‐3500 rechargeable Li‐ion battery, USB Type‐C charging cable, Spare O‐ring, User manual, Warranty card Warning The headlamp is a high‐intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes. This headlamp will accumulate a lot of heat when used for extended periods, resulting in ...
- Page 8 ...
