Technical Parameters
ANSI/PLATO
FL1
High
1300 lumens
Output
4 hours
Runtime
170 meters
Distance
7167
candela
Intensity
Impact
Resistance
Submersible
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced
by Fenix through its laboratory testing using a Fenix ARB-L18-3400 battery under the temperature of
21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different
working environments and the actual battery used.
*The High output is measured in total of runtime including output at reduced levels due to temperature
or protection mechanism in the design.

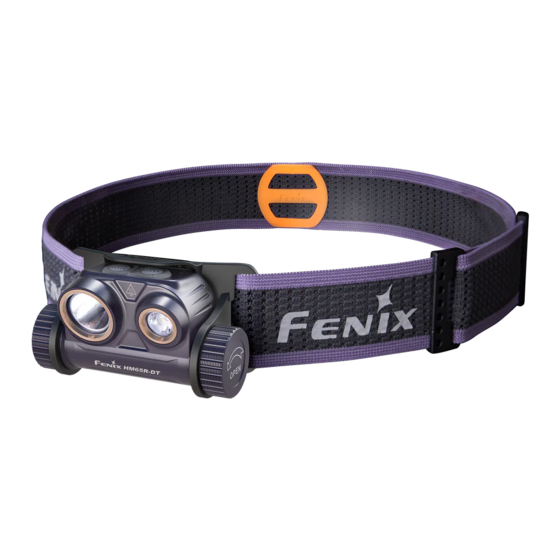

Fenix HM65R-DT Headlamp
White light mode
Med
400 lumens
12 hours
*
96 meters
2321
candela
Low
High
130 lumens
400 lumens
24 hours
12 hours
55 meters
92 meters
757
2103
candela
candela
2 meters
IP68
Warm white light mode
Med
130 lumens
24 hours
50 meters
621
candela
Low
5 lumens
300 hours
9 meters
20
candela
Advertisement
Related Manuals for Fenix HM65R-DT
Summary of Contents for Fenix HM65R-DT
- Page 1 Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using a Fenix ARB-L18-3400 battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
- Page 2 Warning ◎Do place this headlamp out of the reach of children! ◎Do NOT shine the headlamp directly into the eyes of anyone! ◎Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature! ◎Do NOT use the headlamp in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the headlamp or internal battery fails!
- Page 3 In locked status, clicking or pressing the switches will activate 4 blinks on Low of warm white light mode to indicate locked status. Battery Specifications Nominal Type Dimensions Usability voltage Recommen Fenix ARB-L18 Series 18650* 3.6 V √√ Non-rechargeable Battery CR123A 3.0 V Usable √...
- Page 4 ◎Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp. ◎The normal charging time of the Fenix ARB-L18-3400 rechargeable battery is about 3 hours with the lamp being switched off. When charging, Low output of white light or warm white light mode can be separately selected.
- Page 5 One light on: 40% - 20% One light flashes: 20% - 1% Note: This only works with Fenix ARB-L18 Series rechargeable battery. Intelligent Overheat Protection The lamp will accumulate a lot of heat when used on high, med and low output levels for extended periods.
- Page 6 B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor. Included Fenix HM65R-DT headlamp, ARB-L18-3400 battery, USB Type-C charging cable, Spare O-ring, User manual, Warranty card...
