Technical Parameters
ANSI/PLATO FL1
Output
Li‐polymer
PAIRDEER
Runtime
AAA
Distance
Intensity
Impact Resistance
Waterproof

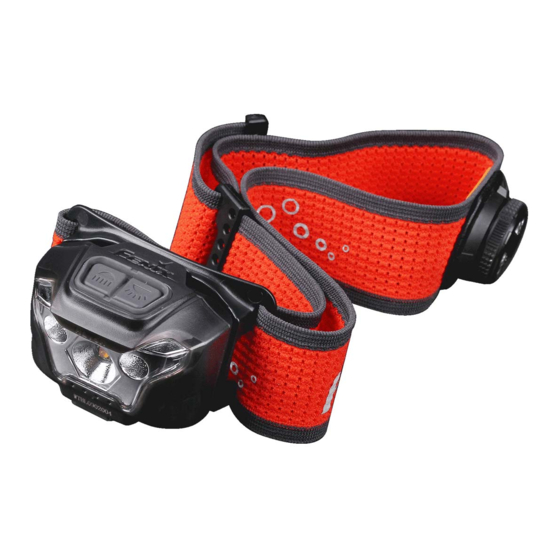

Fenix HL18R‐T Headlamp
Spotlight
High
Med
500
200
lumens
lumens
3
8
hours *
hours
4
11
hours *
hours
82
54
meters
meters
749
1700
candela
candela
Floodlight
Low
Low
70
30
lumens
lumens
20
30
hours
hours
20
43
hours
hours
35
12
meters
meters
38
310
candela
candela
1 meter
IP66
SOS
4
lumens
300
hours
300
hours
5
meters
8
candela
Advertisement
Table of Contents
Related Manuals for Fenix HL18R-T
Summary of Contents for Fenix HL18R-T
- Page 1 Fenix HL18R‐T Headlamp Technical Parameters Spotlight Floodlight ANSI/PLATO FL1 High Med Low Low SOS 500 200 70 30 4 lumens lumens lumens lumens lumens Output 3 8 20 30 300 Li‐polymer hours * ...
- Page 2 Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one 1300mAh Li‐polymer battery pack and three PAIRDEER AAA batteries under the temperature of 21±3°C and humidity of 50% ‐ 80%. The true performance of this product may vary according to different working environments and the actual battery used. *The High output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design. Product Features Cree XP‐G3 S3 neutral white and Everlight 2835 white LED's, with a lifespan of 50,000 hours. Included a 1300 mAh Li‐polymer battery pack; compatible with 3 AAA Ni‐MH/Alkaline ...
- Page 3 mode. Floodlight switch: for on/off, mode switching, lockout function and output selection on floodlight mode. On/off Press and hold the spotlight switch, the lamp will be turned on on Med of spotlight by default; press and hold the floodlight switch, the lamp will be turned on on Low of floodlight by default. Press and hold either of the two switches for 0.5 seconds to turn on/off the lamp. Mode Switching With the lamp switched on, single click either of the two switches to reach the corresponding mode. Output Selection Spotlight mode: single click the spotlight switch to cycle through Med→Low→High. Floodlight mode: single click the floodlight switch to cycle through Low→SOS. Lockout Function Lock: when the lamp is switched off, press and hold either of the two switches, or simultaneously press the two switches for 3 seconds, the lamp will blink four times on Low of floodlight mode to indicate locked status. Unlock: when the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 4 one‐second blinks and activated on Low of floodlight mode. In locked status, clicking or pressing the switches will activate 4 one‐second blinks on Low of floodlight mode to indicate locked status. ...
- Page 4 Battery Specifications Type Dimensions Nominal Voltage Usability Fenix ARB‐ 43 x 31 x 10.5 mm 3.7 V Recommended √√ LP1300 Usable Ni‐MH Battery AAA 1.2 V √ (No charging) Usable Alkaline Battery AAA 1.5 V ...
- Page 5 3. The normal charging time of the Fenix ARB‐LP1300 Li‐polymer battery is about 2.5 hours with the lamp being switched off. When charging, Low output of spotlight or floodlight mode can be separately selected. The headlamp will not automatically power on after full charging. 4. In charging process, one indicator flashes: below 20%, one constant‐on and one flashes: 20% ‐ 50%, two constant‐on and one flashes: 50% ‐ 80%, three constant‐on and one flashes: 80% ‐ 95%, four constant‐on: charging complete. 5. Replace the anti‐dust cap to ensure waterproof and dustproof ability. Battery Level Indication With the lamp is switched off, single click either of the two switches to check the battery status, the indicator(s) will last for 3 seconds. Four lights on: saturated, 100% ‐ 80% Three lights on: sufficient, 80% ‐ 60% Two lights on: poor, 60% ‐ 40% One light on: critical, 40% ‐ 20% One light flashes: 20% ‐ 0% Note: This only works with Fenix ARB‐LP1300 Li‐polymer battery. Intelligent Overheat Protection The lamp will accumulate a lot of heat when used relatively high output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user for the reselection of the modes. ...
- Page 6 Low‐voltage Warning When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, one of the battery level indicators blinks to remind you to timely recharge or replace the battery. Note: This only works with Fenix ARB‐LP1300 Li‐polymer battery. Headband Assembly Notice: The headband is factory assembled by default. Pull the rotary press‐pull clasp up to loosen the headband; press the clasp, rotate it clockwise to shorten the headband. Usage and Maintenance Disassembling the sealed head can cause damage to the lamp and will void the warranty. Fenix recommends using an excellent quality Fenix battery. If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage. Lock the lamp or take out the battery to prevent accidental activation during storage or transportation. ...
- Page 7 If the above methods don't work, please contact the distributor. Included Fenix HL18R‐T headlamp, ARB‐LP1300 Li‐polymer battery pack, Micro USB charging cable, User manual, Warranty card Warning The headlamp is a high‐intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes. This headlamp will accumulate a lot of heat when used for extended periods, resulting in high temperature of the headlamp shell. Pay attention to safe use to avoid scalding. All information provided in this manual is subject to change without prior notice. ...
