Fenix HM23 Quick Start Manual

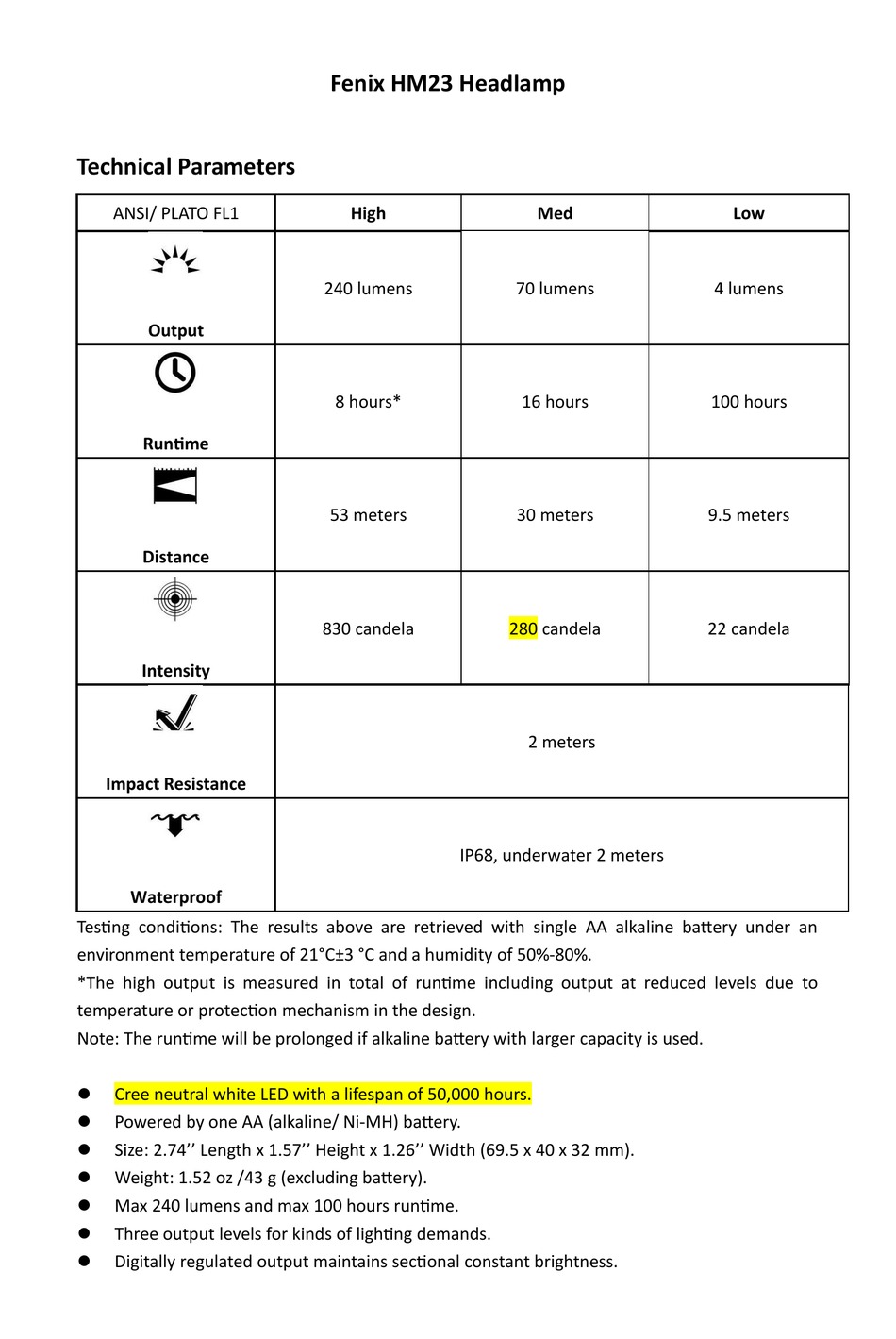

Technical Parameters

ANSI/ PLATO FL1
Output
Runtime
Distance
Intensity
Impact Resistance
Waterproof
Testing conditions: The results above are retrieved with single AA alkaline battery under an
environment temperature of 21°C±3 °C and a humidity of 50%-80%.
*The high output is measured in total of runtime including output at reduced levels due to
temperature or protection mechanism in the design.
Note: The runtime will be prolonged if alkaline battery with larger capacity is used.
Cree neutral white LED with a lifespan of 50,000 hours.

Powered by one AA (alkaline/ Ni-MH) battery.

Size: 2.74'' Length x 1.57'' Height x 1.26'' Width (69.5 x 40 x 32 mm).

Weight: 1.52 oz /43 g (excluding battery).

Max 240 lumens and max 100 hours runtime.

Three output levels for kinds of lighting demands.

Digitally regulated output maintains sectional constant brightness.


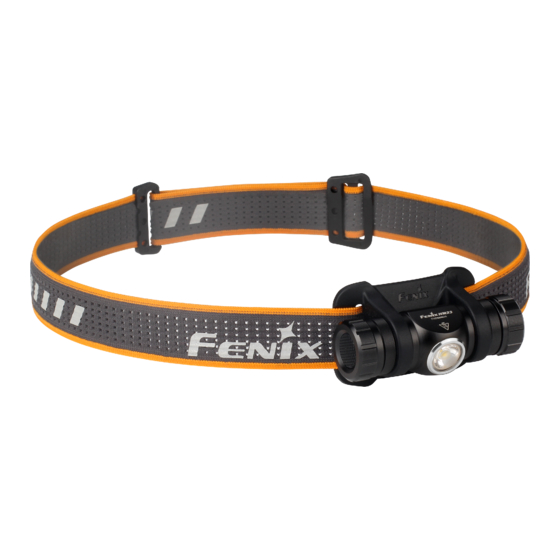

Fenix HM23 Headlamp
High
240 lumens
8 hours*
53 meters
830 candela
IP68, underwater 2 meters
Med
70 lumens
16 hours
30 meters
280 candela
2 meters
Low
4 lumens
100 hours
9.5 meters
22 candela
