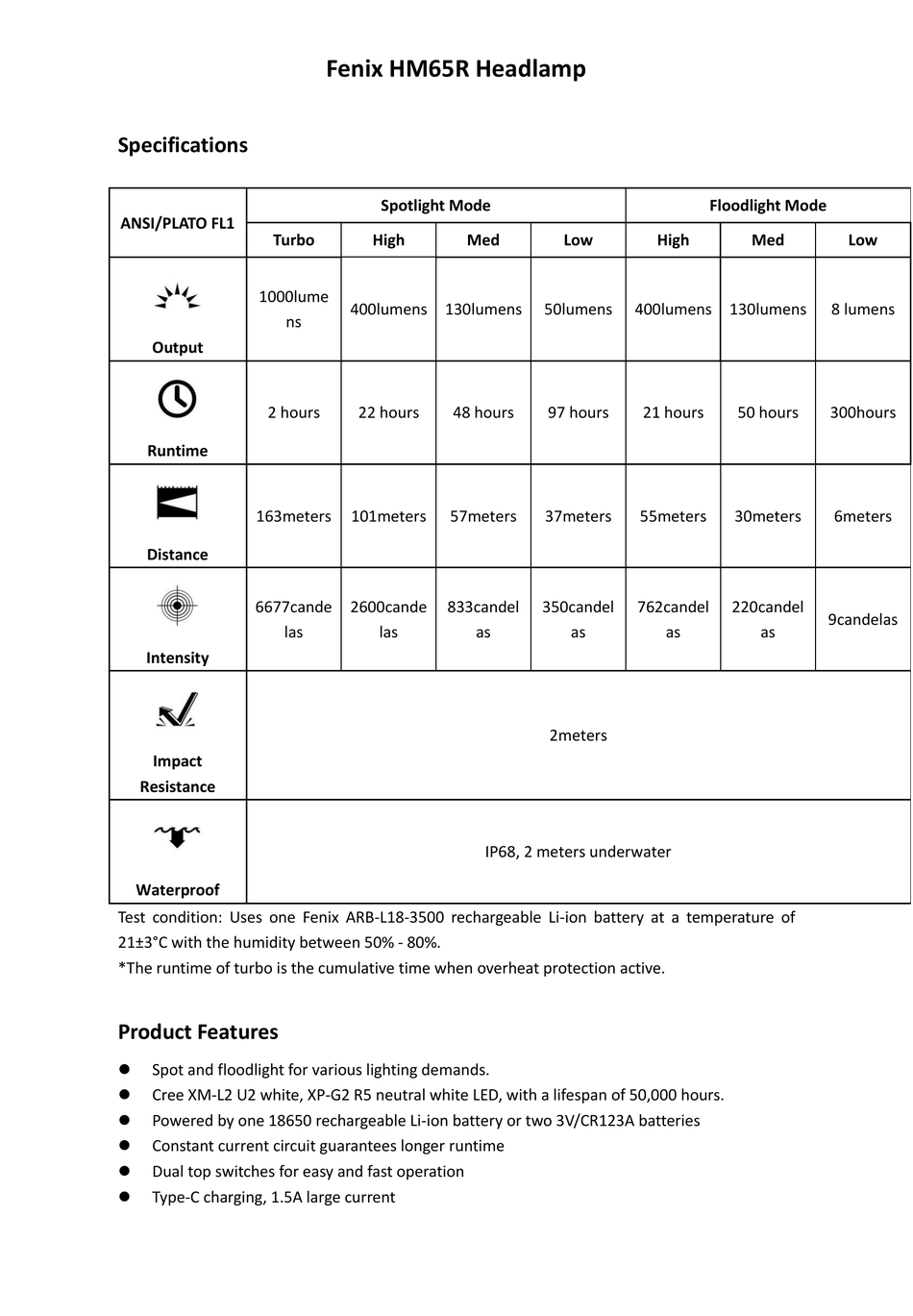

Specifications
ANSI/PLATO FL1
Turbo
1000lume
ns
Output
2 hours
Runtime
163meters
Distance
6677cande
las
Intensity
Impact
Resistance
Waterproof
Test condition: Uses one Fenix ARB-L18-3500 rechargeable Li-ion battery at a temperature of
21±3°C with the humidity between 50% - 80%.
*The runtime of turbo is the cumulative time when overheat protection active.
Product Features
Spot and floodlight for various lighting demands.
Cree XM-L2 U2 white, XP-G2 R5 neutral white LED, with a lifespan of 50,000 hours.
Powered by one 18650 rechargeable Li-ion battery or two 3V/CR123A batteries
Constant current circuit guarantees longer runtime
Dual top switches for easy and fast operation
Type-C charging, 1.5A large current

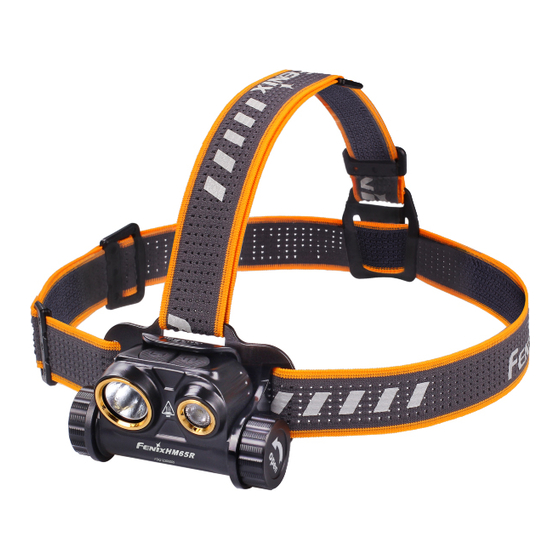

Fenix HM65R Headlamp
Spotlight Mode
High
Med
400lumens 130lumens
22 hours
48 hours
101meters
57meters
2600cande
833candel
las
as
IP68, 2 meters underwater
Floodlight Mode
Low
High
50lumens
400lumens 130lumens
97 hours
21 hours
37meters
55meters
350candel
762candel
as
as
2meters
Med
Low
8 lumens
50 hours
300hours
30meters
6meters
220candel
9candelas
as
Advertisement
Table of Contents
Related Manuals for Fenix HM65R
Summary of Contents for Fenix HM65R
- Page 1 Resistance IP68, 2 meters underwater Waterproof Test condition: Uses one Fenix ARB-L18-3500 rechargeable Li-ion battery at a temperature of 21±3°C with the humidity between 50% - 80%. *The runtime of turbo is the cumulative time when overheat protection active. Product Features ...
- Page 2 1. Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp. 2. The normal charging time of the Fenix ARB-L18-3500 rechargeable Li-ion battery is about 2 hours with the lamp being switched off. When charging, Med output of spotlight or floodlight mode can be separately or simultaneously selected.
- Page 3 Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes. Quality Li-ion battery with protective circuit will reduce risks. Fenix ARB-L18 Series battery is recommended. Battery Replacement ④...
- Page 4 Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor. Included HM65R Headlamp, ARB-L18-3500 rechargeable Li-ion battery, Headband, Top headband, Headband mount, Spare O-ring, Charging cable, User manual, Warranty card Warning The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others.
Need help?
Do you have a question about the HM65R and is the answer not in the manual?
Questions and answers

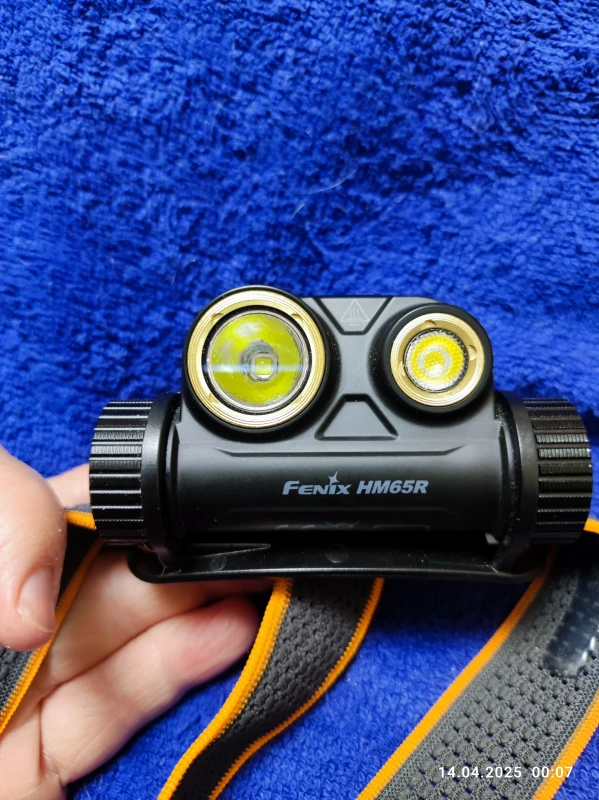

Доброй ночи. Включаю фонарь HM65R на любом режиме. Мигает маленькая лампочка и гаснет, как исправить?
To fix the Fenix HM65R flashlight that blinks and turns off in any mode:
1. Remove the plastic insulation disc inside the flashlight body if it hasn't been removed.
2. Check that the battery is good by testing it in another device.
3. Ensure the battery is inserted in the correct direction as shown in the battery compartment.
4. Make sure there is only one o-ring on the flashlight. Remove the spare o-ring if it was added, as it can prevent proper battery contact.
These steps help ensure proper electrical connection and battery function.
This answer is automatically generated
