WALL / SHALLOW BASE UNIT

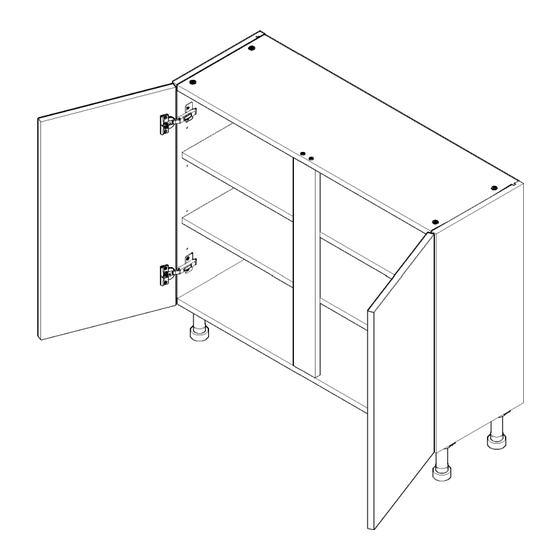

1000 Assembly Guide
For Internal Use: FI.WR.INS.036_WKIN00126_MULTI_1000_2Dr_Rev7
1000 Base
Shallow
1000 Wall

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vogue BASE UNIT 1000 Base Shallow and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wren Kitchens Vogue BASE UNIT 1000 Base Shallow

  • Page 1 WALL / SHALLOW BASE UNIT 1000 Assembly Guide 1000 Base Shallow 1000 Wall For Internal Use: FI.WR.INS.036_WKIN00126_MULTI_1000_2Dr_Rev7...
  • Page 2 WALL / SHALLOW BASE UNIT 1000 Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel B Panel C Muntin D Loose Shelf Frontal x1 Back Panel x2 End Panel x2 Base Panel (packed separately)
  • Page 3 Step 1. Step 2. Seat (G) Seat dowel (F) Seat cam dowel (G) into cam dowel into holes in holes in both end panels (B) into hole as shown. both end panels (B) as shown. as shown. Step 3. Attach panels x2 (C) to panel (B), using cam dowels (G) (in blue) and also using dowels (F) (in orange) in positions as shown.
  • Page 4 WALL / SHALLOW BASE UNIT 1000 Assembly Guide Seat (G) cam dowel into hole as Step 6. shown. Seat dowel (F) into holes in both panels (B) as shown. Step 7. Seat cam dowel (G) into holes in both end panels (B) as shown.
  • Page 5 Step 10. Ensure unit is square. Step 11. Slide the back panel clips (T) into the groove of both panels (B) & (C)s. The back panel clips (T) should be evenly spaced as shown and positioned to allow the  hangingbracketandcornergussetstobefitted.  Onceinplace,tighten screw.
  • Page 6 WALL / SHALLOW BASE UNIT 1000 Assembly Guide WALL UNITS ONLY for Shallow Base see pages 7 & 8 Care to be taken. Hanging procedure is necessary for a safe installation. Step 13. Hanging Brackets steps a,b & c to be carried out on both sides as shown Detail A Detail A Detail A...
  • Page 7 WALL UNITS ONLY Screws for attaching to walls are not provided as these vary depending on materials, thicknessandconstruction.Ensureappropriatefixingsforwallconstructionareused. Step 16. Measure appropriately and attach the 2 x hanging bracket Hanging Bracket plates onto the wall screwing Plate through the provided holes into your wall.
  • Page 8 WALL / SHALLOW BASE UNIT 1000 Assembly Guide SHALLOW BASE UNITS ONLY for WALL see pages 5 & 6 Corner Gusset Detail Step 20. Secure corner gussets to the top left and right hand side of the wall unit using 4 x 15mm screws (L) per plate. View though Back Panel Step 21.
  • Page 9 SHALLOW BASE UNITS ONLY LEG POSITION DIAGRAM Step 23. Secure each of the legs into place with 4 x 15mm screws (L) per leg. Ensure legs are rotated as shown so that part of it is supporting the end panels (B). Step 24.
  • Page 10 WALL / SHALLOW BASE UNIT 1000 Assembly Guide Step 25. Insert hinge in top & bottom holes as shown below. Step 26. Secure hinges by tightening 2 x screws with hinge dowels attached. These are already positioned within the hinges. Step 27.
  • Page 11 For Internal Use: FI.WR.INS.036_WKIN00126_MULTI_1000_2Dr_Rev7 Page 10...
